Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
1 / 5
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Send Inquiry

Product Description

Product Description

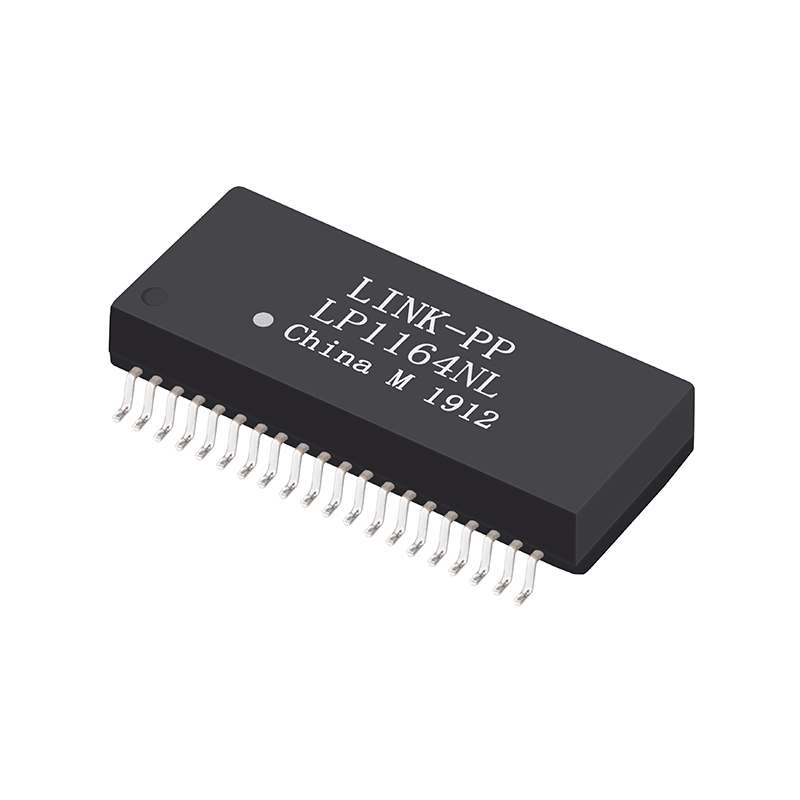

LAN Transformer Front View

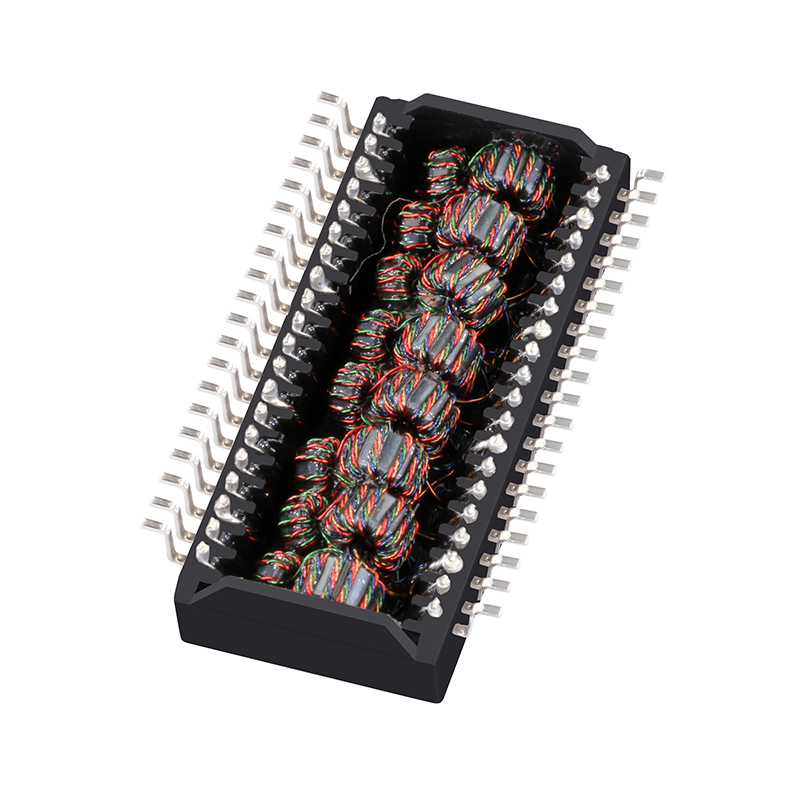

LAN Transformer Side View
Specification
Item Key Value Details
Place of Origin China
Part Number: LP1164NL
Alternative Part Number H1164NLT
Transformer Type Lan Transformer
Application-Lan Ethernet (Non-PoE)
Number of Ports Quad Port
Speed 10/100 Base-T
Package Tape & Reel
Cores per Port 16
PIN number 40
Mounting Type Surface Mount
Temperature 0°C TO +70°C
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C, S

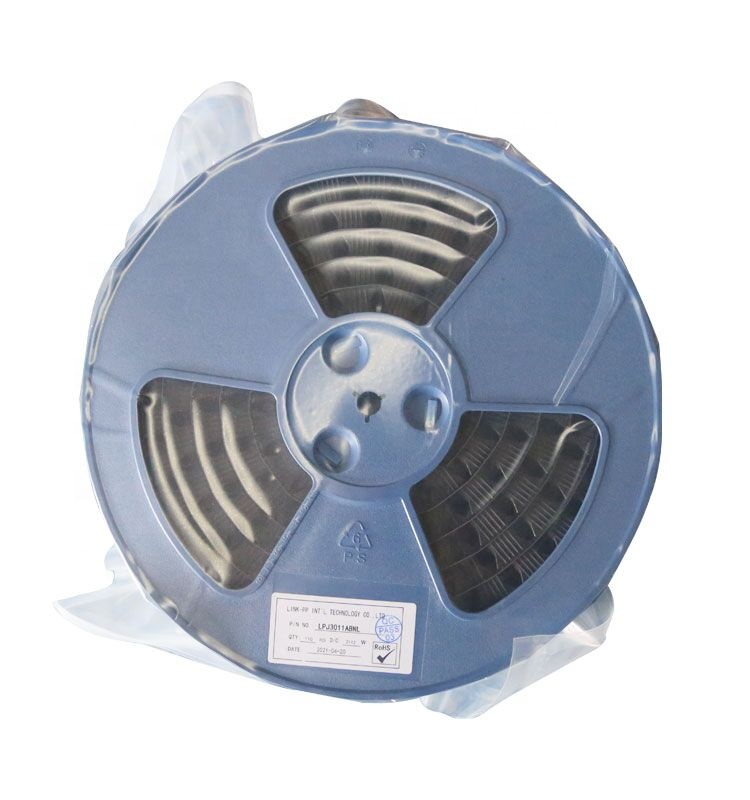

Packing & Delivery
Packaging Standard
Net Weight (N.W/pcs):0.005kg
Package Style:Reel
Standard Pack Qty (SPQ):400pcs
Qty per Carton:1600pcs
Carton Dimensions:36 * 35.5 * 23cm
Gross Weight (G.W/carton):7.5kg
Production Capabilities & Facilities
Manufacturing Facility 1
Manufacturing Facility 2
Manufacturing Facility 3
Testing Equipment 1
Testing Equipment 2
Quality Management
Warehouse and Logistics
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. Our production site houses advanced manufacturing facilities and sophisticated test instruments imported from leading technology providers.

Established in 1997, our facility operates with around 2000 dedicated staff members. Backed by a strong monthly production capacity of 3000K units, we ensure short leading times and prompt shipments. Additionally, we provide comprehensive, professional design solutions for magnetic components alongside robust technical support services. Our products are widely used in a range of networking and telecommunications devices including switches, routers, hubs, PC cards, PC mainboards, SDH, PDH, IP phones, and xDSL modems.

Our components have been exported to more than 30 countries and regions globally, including Germany, France, the United Kingdom, the United States, Singapore, Korea, Canada, and Japan. Our engineering division is highly focused on developing and customizing optimal designs to suit the specialized requirements of our customers.
Frequently Asked Questions
What is the application of the LP1164NL LAN Transformer?

The LP1164NL is designed for 10/100 Base-T Ethernet (Non-PoE) networking applications. It is commonly integrated into routers, switches, network interface cards (NICs), and other telecommunication devices.

Is the LP1164NL fully compatible with H1164NLT?

Yes, the LP1164NL serves as an equivalent configuration to the H1164NLT part number, making it a drop-in replacement with matching electrical characteristics and mounting footprint compatibility.

What is the temperature rating for this component?

This LAN Transformer is rated for an operating temperature range of 0°C to +70°C, which standardizes it for reliable operation in commercial grade environments.

What are the packaging standards for bulk orders?

The product is supplied in Tape & Reel packaging. The Standard Packaging Quantity (SPQ) is 400 pieces per reel, with 1600 pieces packed per master carton.

What certifications do your magnetic components comply with?

Our products are manufactured under rigorous quality systems, matching compliance with standards such as ISO9001:2000, RoHS, REACH, CE, and UL certifications.
