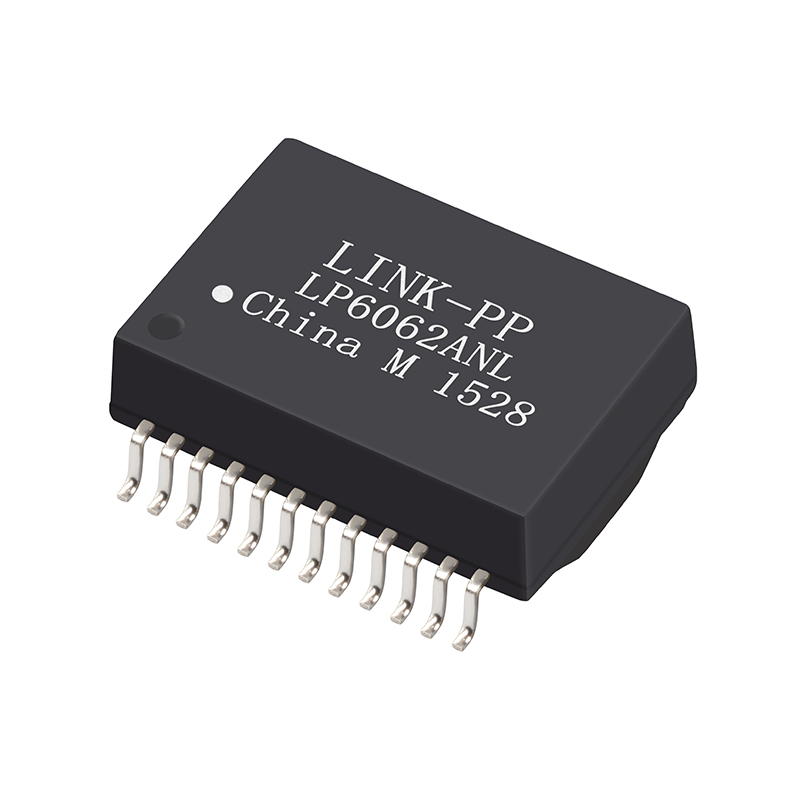

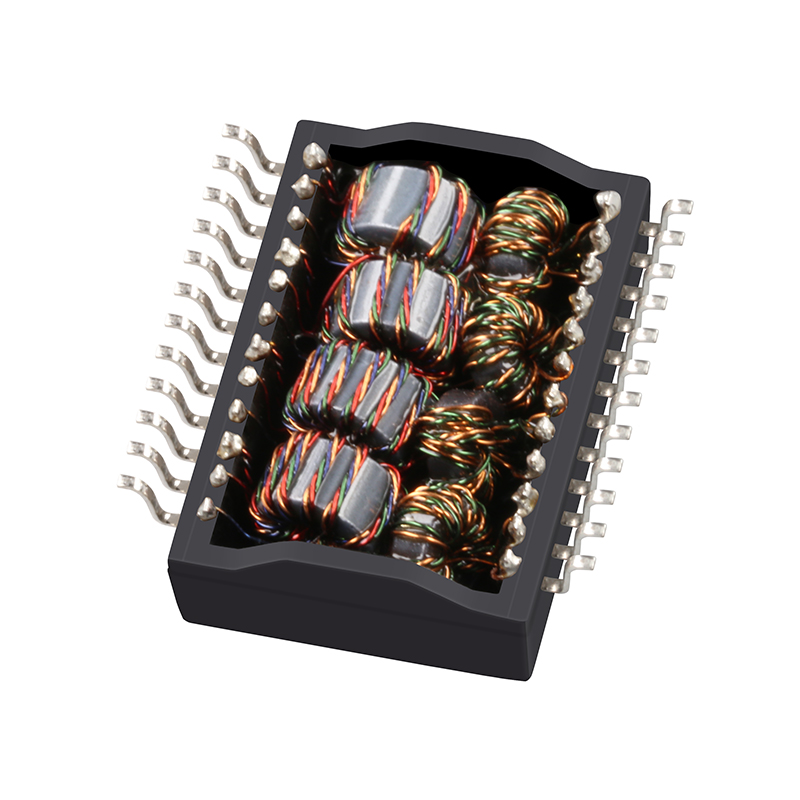

What is the application range of the LP6062ANL Lan Transformer?

The LP6062ANL is designed specifically for Ethernet (PoE+) applications. It supports single-port configurations with transmission speeds up to 10/100/1000 Base-T, making it ideal for network communication devices.

Is the LP6062ANL cross-compatible with the Halo TG1G-S012NZRL?

Yes. The LP6062ANL serves as a direct functional equivalent to the Halo part number TG1G-S012NZRL, offering matching physical profiles and electrical capabilities.

What are the environmental limits of this transformer?

This Lan Transformer operates effectively under industrial temperature ranges, rated from -40℃ up to +85℃, ensuring reliable network performance in demanding thermal environments.

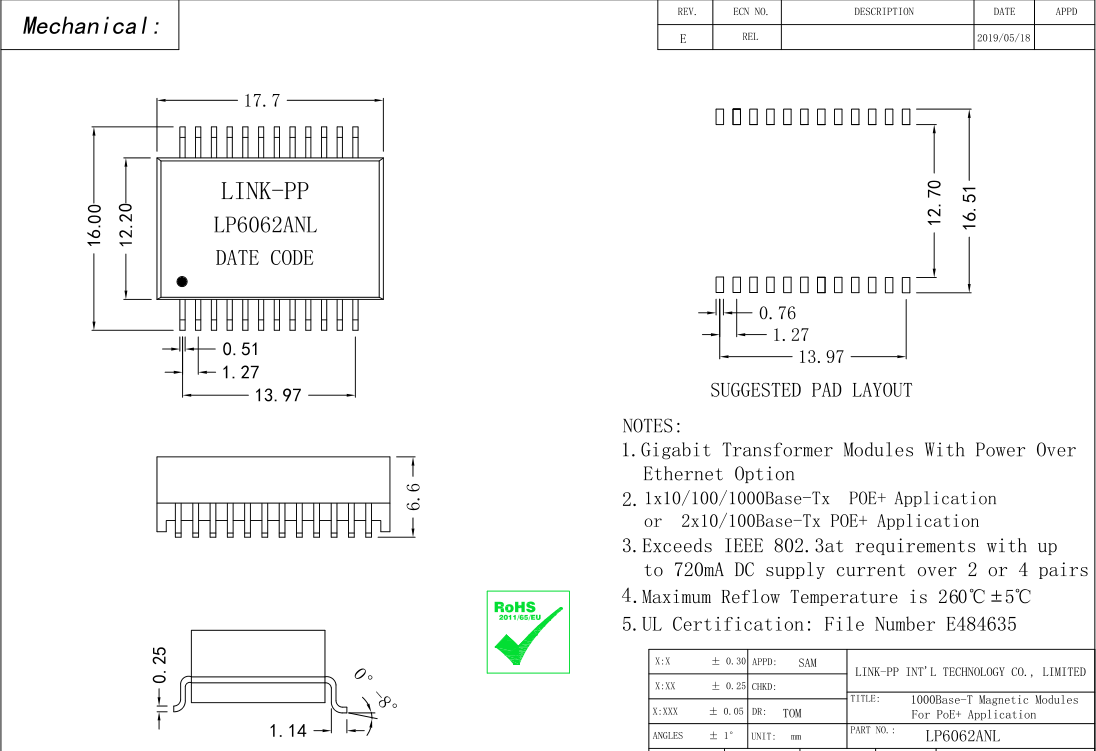

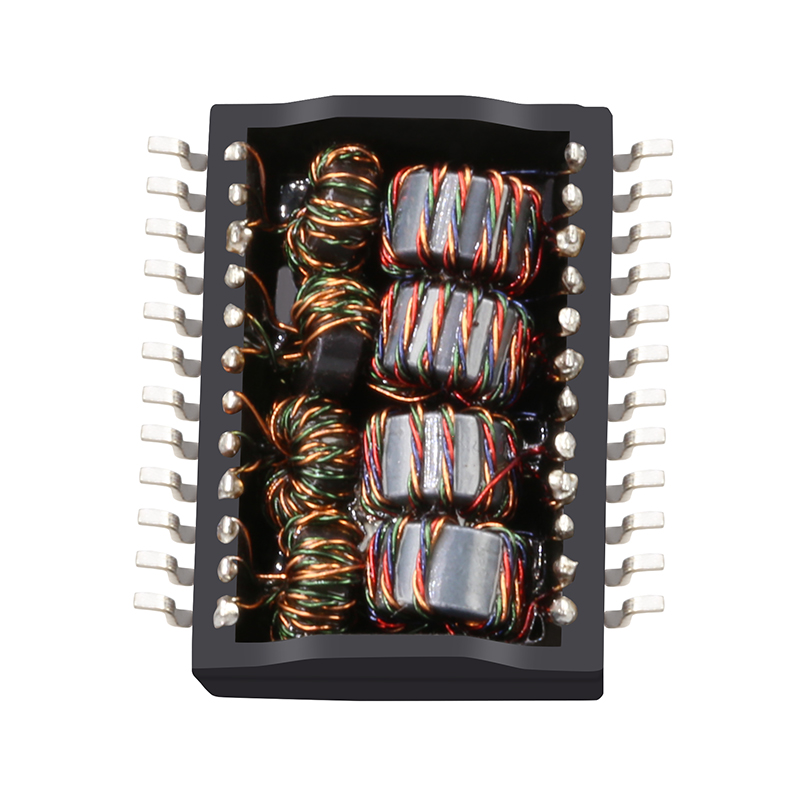

What mounting format and pin layout does it feature?

The transformer utilizes a 24-Pin layout configured for Surface Mount (SMD/SMT) installations, facilitating automated PCB assembly lines.

What are the standard packaging quantities for shipping?

The product is shipped in Tape & Reel packaging format. The Standard Packaging Quantity (SPQ) is 400 pieces per reel, and each shipping carton holds up to 1,600 pieces with a gross weight of approximately 5.8kg.

What turns ratio and configuration does the RX/TX offer?

It features a standard 1CT:1CT Turns Ratio for both RX and TX channels, utilizing a T, C, S configuration to manage electrical coupling effectively.
