Dual Port 1000 BASE-T SMD Current LAN Transformer Modules LP5020NLR

Product Description

LAN Components Showcase
Dual Port 1000 BASE-T SMD Current LAN Transformer Modules LP5020NLR
Products Description
Item Lan Transformer
Replaceable Brand Model LP5020NLR
Part Status Active
Construction Open frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports Single / Dual / Quad
Speed 10 / 100 / 1000 Base-T
Cores per Port 4 / 8 / 12
Pin Number 10 Pin / 12 Pin / 24 Pin / 48 Pin
Mounting Type Dip / Smt
Temperature 0℃ To 70℃ / -40℃ To 85℃
AutoMDIX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C, S
Package Tape & Reel

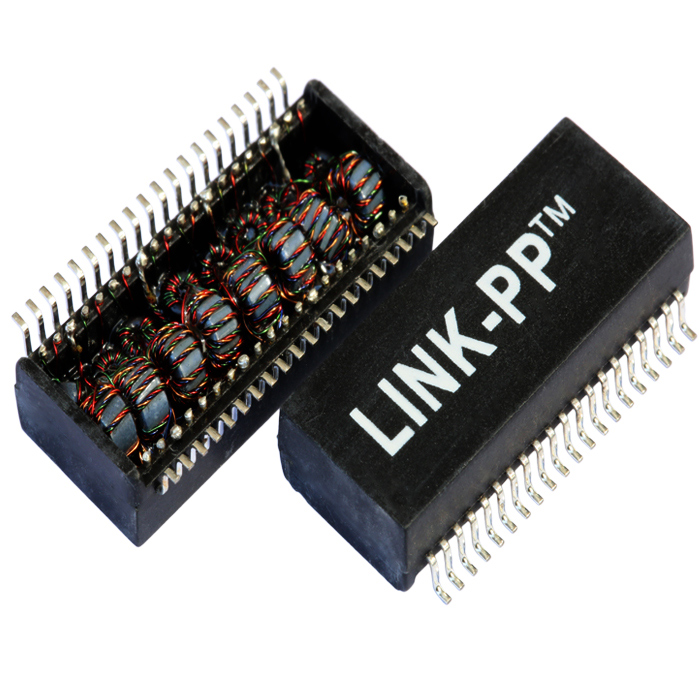

Product View 1

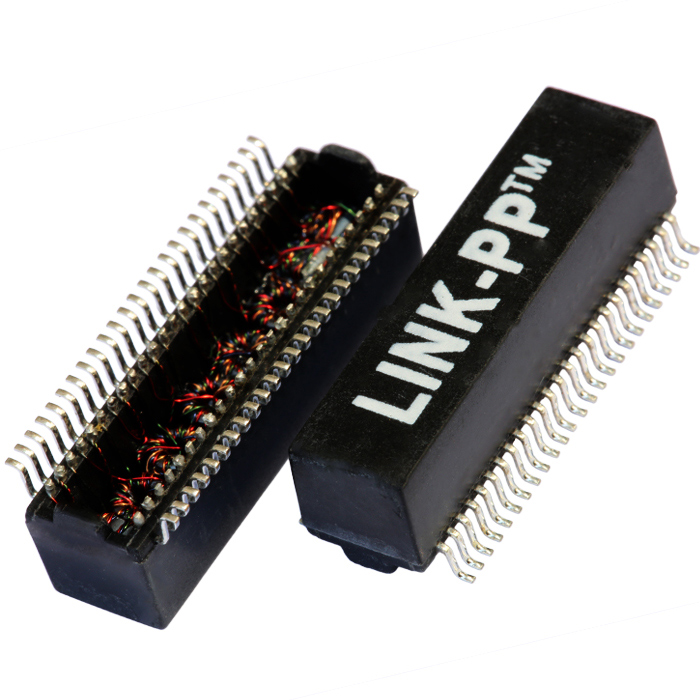

Product View 2

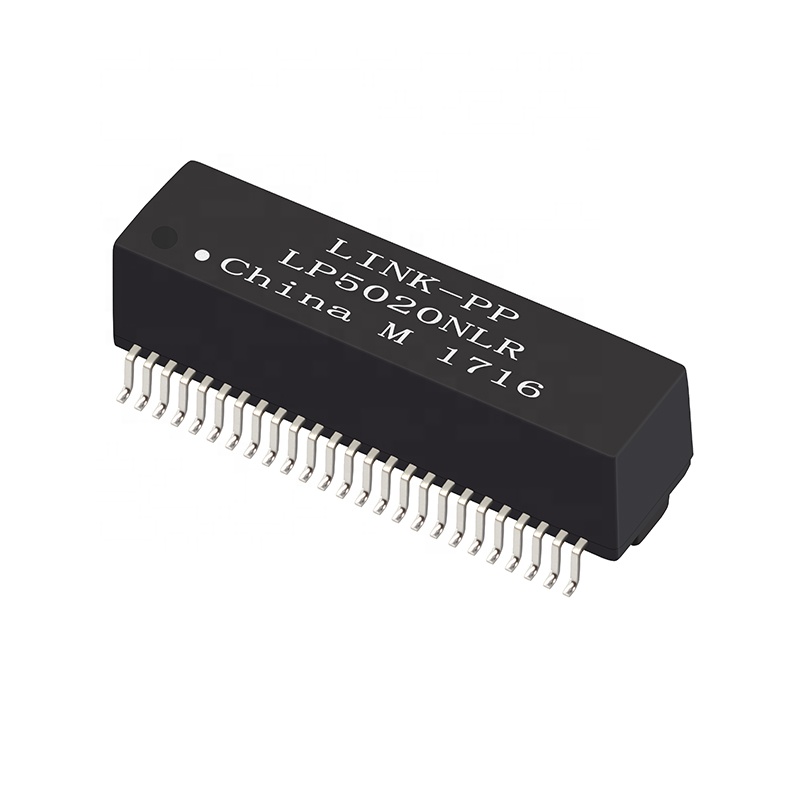

Product View 3

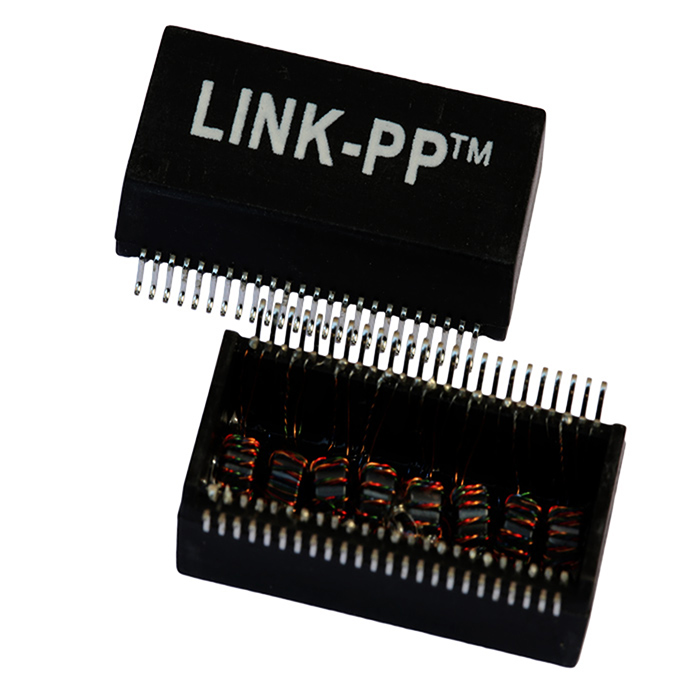

Product View 4

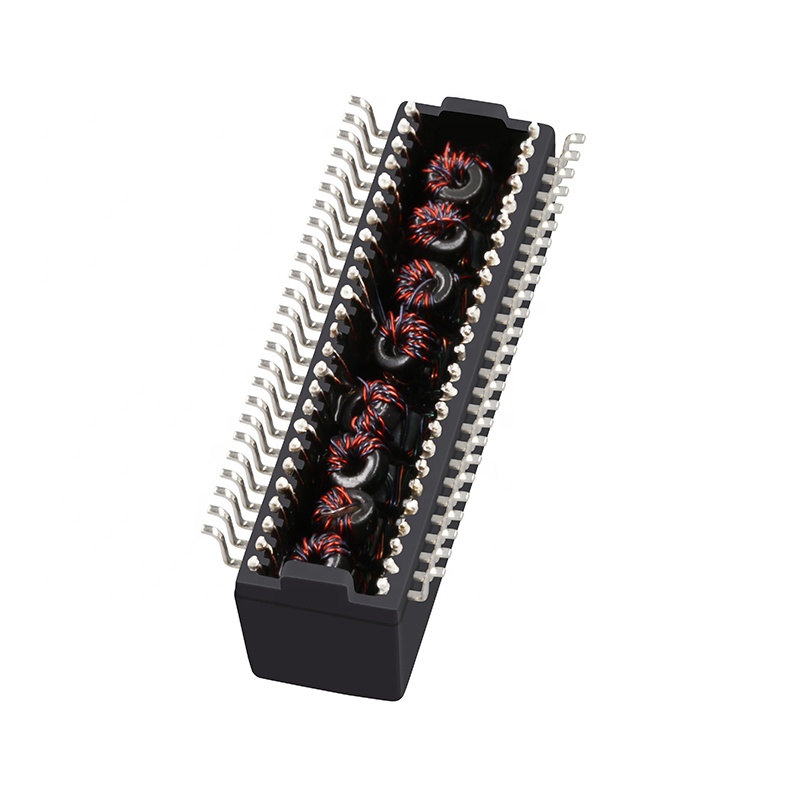

Product View 5
Product Specification Drawing
Product Circuit Schematic
Why Choose Us
Quality Standard Assurance
Testing and Verification
Production Capabilities
Storage and Logistics
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported our products to more than 30 countries and regions in the world, including Germany, France, England, USA, Singapore, Korea, Canada and Japan.

Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to be our long-term partner.
Manufacturing Area
Laboratory Facility
Production Process
Quality Inspection Control
Frequently Asked Questions
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you a free sample to test quality, but the shipping fee needs to be paid by the recipient.
3. What is your delivery time?
We are ready to ship for stock items, and it takes 15-30 days for mass production orders.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your specific requirements.
6. What is your advantage?
We have 19 years of professional production experience and have been a trusted partner to leading global technology enterprises for many years.
