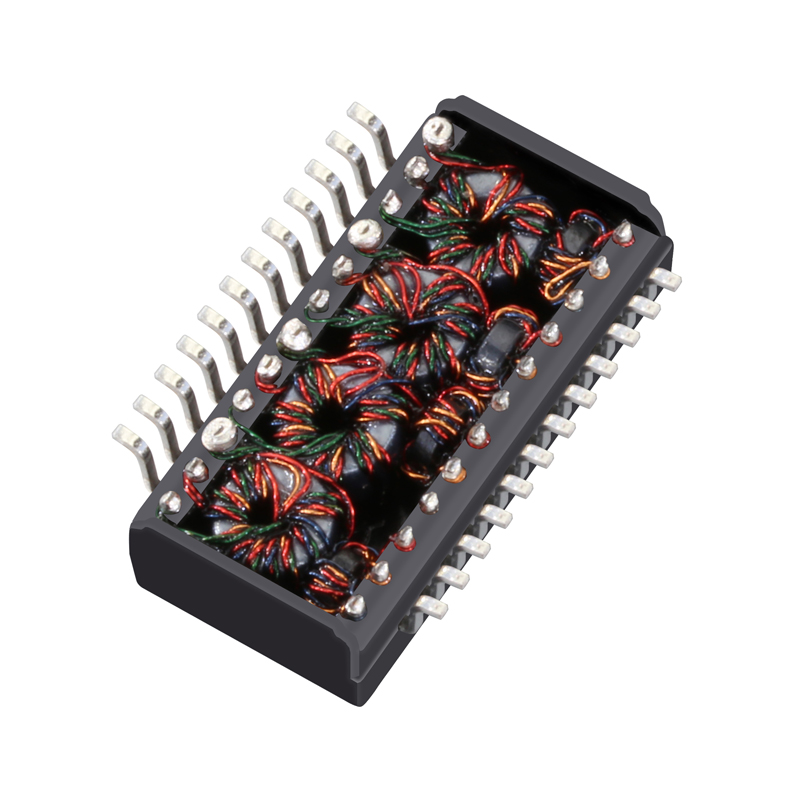

10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

1 / 5

10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

Send Inquiry

Product Description

Specification

Item	Value
Place of Origin	China

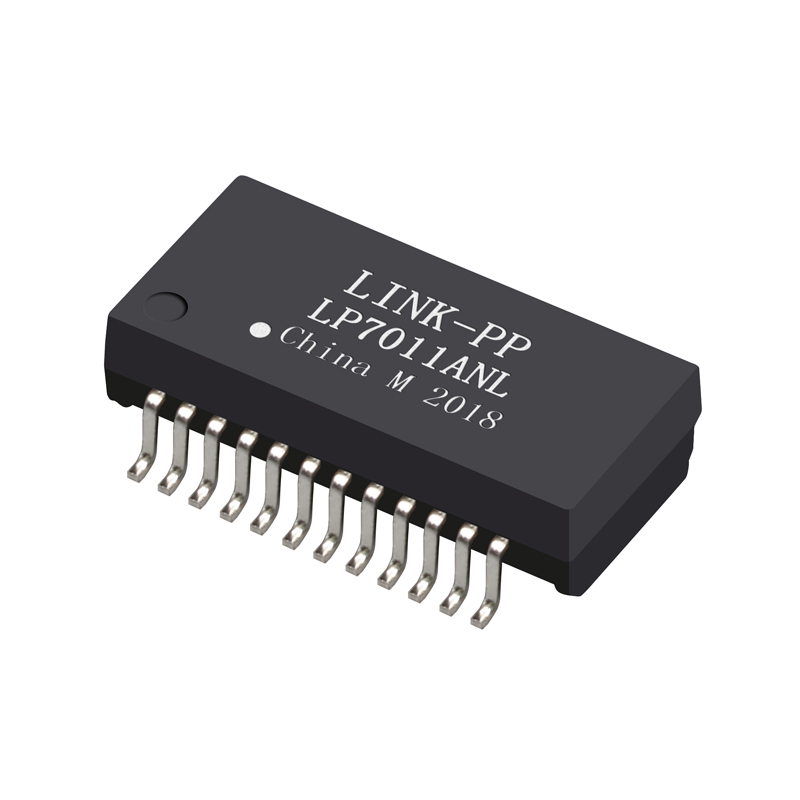

Part Number	LP7011ANL
Pulse Part Number	XF-GH-002
Transformer Type	Lan Transformer
Application-Lan	Ethernet(PoE)
Number of Ports	Single Port
Speed	10G Base-T
Package	Tape & Reel
Cores per Port	8
PIN number	24
Mounting Type	Surface Mount
Temperature	-40℃ TO +85℃
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C,S

Packing & Delivery

Packaging Details:

Net Weight per Piece 0.004 kg

Package Format Reel

Standard Pack Quantity (SPQ) 400 pcs

Quantity per Carton 1600 pcs

Carton Dimensions 36 * 35.5 * 23 cm

Gross Weight per Carton 5.9 kg

Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant monthly production capacity of 3000K, we are able to deliver goods within a short timeframe. Moreover, we provide professional complete solutions for magnetic components and strong technical support. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.

Main Products:

10/100/1000M LAN pulse transformer and filter
RJ45 connector with 10/100/1000M magnetic
T1/E1, T3/DS3/E3/STS-1 interface line transformer
ISDN, HDSL, ADSL, and VDSL interface line transformer and splitter

We have exported our products to more than 30 countries and regions in the world. Our global customer reach covers most countries, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for unique client requirements. We trust that our strength in the field and our dedication to pursuing higher standards will convince you to establish a long-term partnership with us.

Frequently Asked Questions

What are the primary applications of this LAN transformer?

This LAN transformer is specifically designed for Ethernet (PoE) applications, offering single-port support with data transmission speeds of 10G Base-T.

What is the operating temperature range for the LP7011ANL model?

The component operates reliably within a temperature range of -40℃ to +85℃, making it suitable for both commercial and industrial networking environments.

What package format is used for delivery?

The product is supplied in Tape & Reel packaging. It has a Standard Pack Quantity (SPQ) of 400 pcs per reel, and 1600 pcs per master carton.

What are the core technical specifications (pins, cores, and configuration)?

It features 24 pins, 8 cores per port, a turns ratio of 1CT:1CT (RX/TX), and a T,C,S configuration. It is designed for Surface Mount (SMD) installation.

Which quality certifications do your manufacturing facilities hold?

Our manufacturing processes and facilities are fully certified by ISO9001:2000, RoHS, REACH, CE, and UL, ensuring international quality and environmental standards.

What is your monthly production capacity for these magnetic components?

We possess an abundant monthly production capacity of 3000K units, allowing us to ensure short lead times and stable supply chains for clients globally.
