SMT Modular Jack RJ45 MIC24122-5101

Product Description

Ethernet RJ45 Connector Product Line Catalog
Lan Transformer Interface Components

Send Inquiry To Get Latest Price List

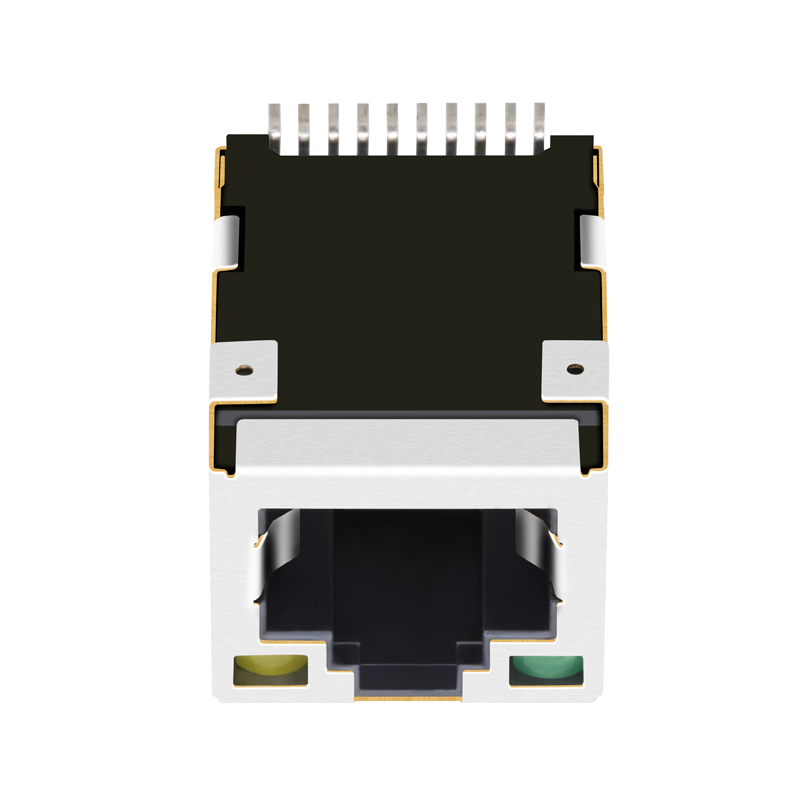

SMT Modular Jack RJ45 Front Interface
SMT Modular Jack RJ45 Side View Dimension

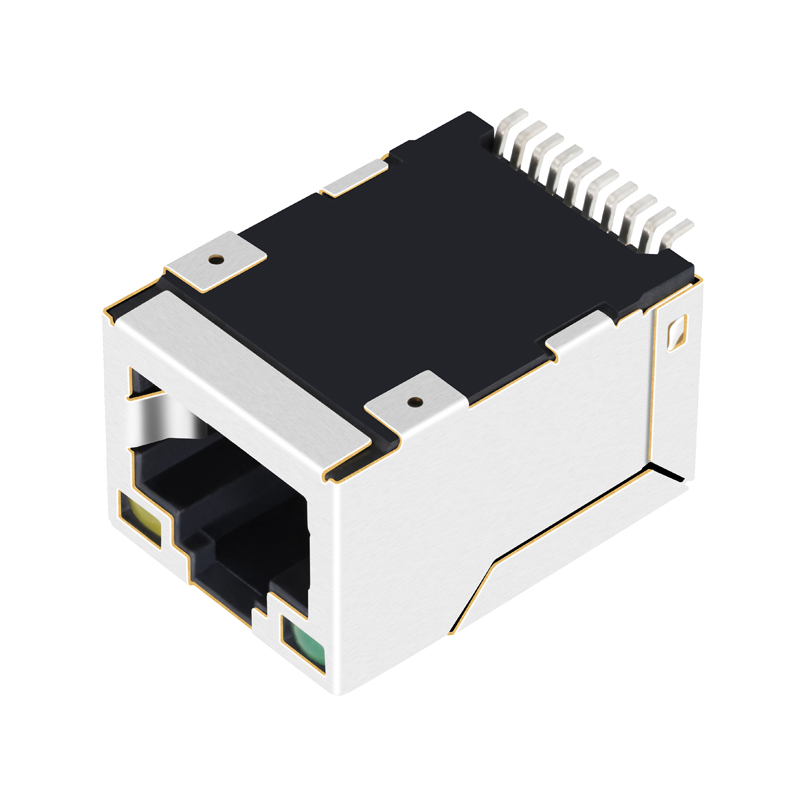

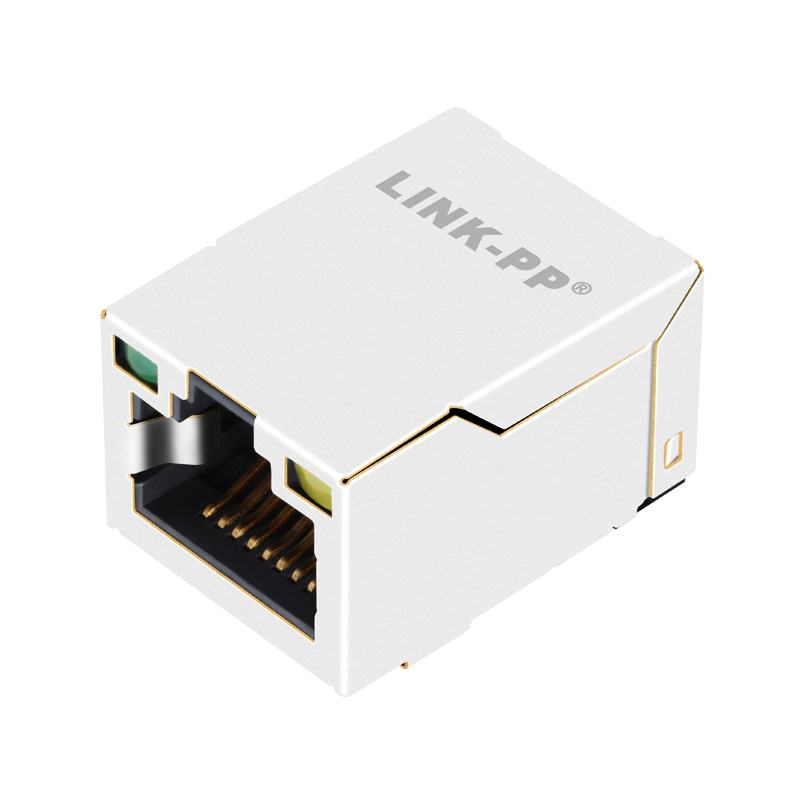

SMT Modular Jack RJ45 MIC24122-5101
Products Description
Item RJ45 Female Connector
Part Number MIC24122-5101
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
RJ45 SMT Female Connector Inner Pin View
RJ45 SMT Female Connector Outer Shielding View

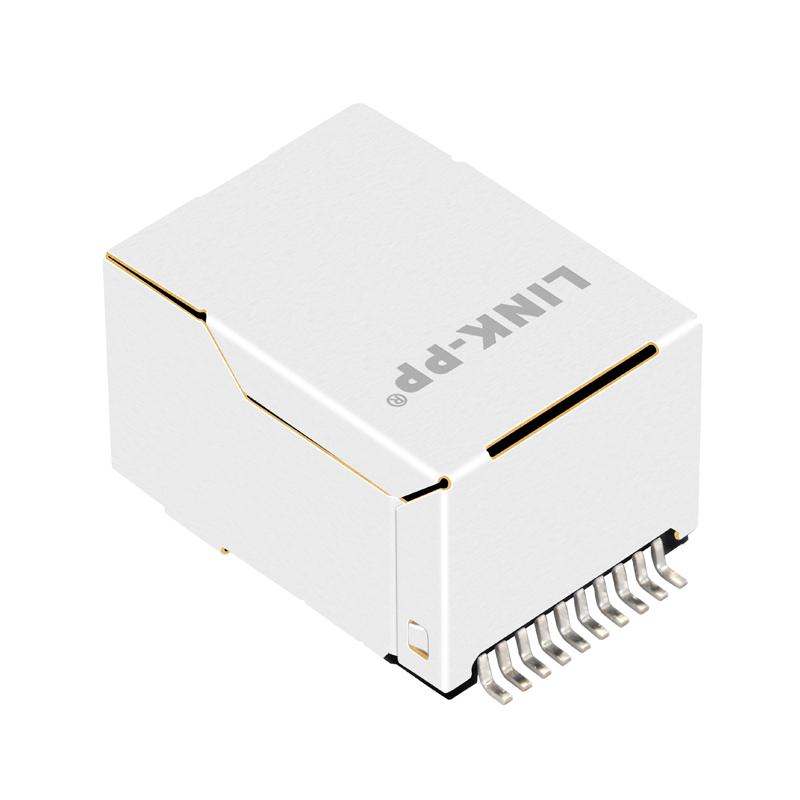

RJ45 SMT Female Connector Side View

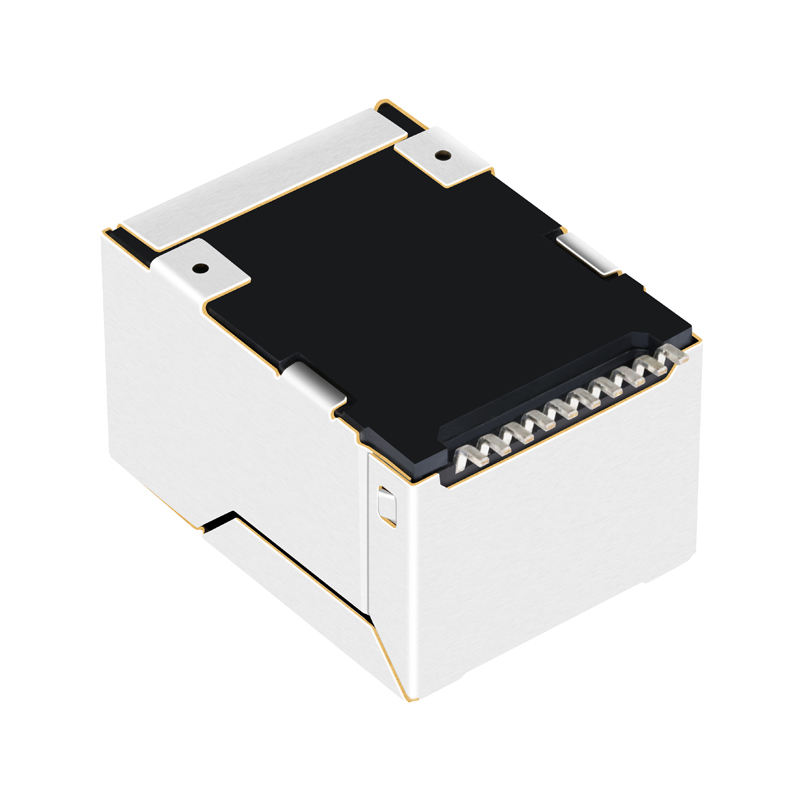

RJ45 SMT Female Connector Bottom Pins
RJ45 SMT Female Connector Golden Contacts
RJ45 SMT Female Connector Solder Pads
RJ45 SMT Female Connector Standard Packaging
Product Quality Certification and Dimensions Schema
Why Choose Us
High Quality Control standards
Advanced production equipment
Professional technical engineering support
Short lead times and large capacity
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components as well as strong technical support.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.

Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our commitment to high standards will convince you to establish a long-term partnership with us.
Production Workshop Automation Machinery
Precision Assembly Process
Quality Testing and Inspections
Warehousing and Shipping Logistics
FAQ

Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer you free samples to test the quality, with shipping fees covered by the buyer.

What is your delivery time?

Items currently in stock are ready to ship immediately, while mass production typically takes 15-30 days.

What after-sales service do you offer?

We provide a one-year guarantee period along with 24-hour online technical support.

Can you accept OEM/ODM orders?

Yes, please send us an inquiry containing your specifications so we can initiate a detailed discussion.

What is your core advantage?

We possess over 19 years of dedicated production experience and maintain long-term partnerships with leading global technology brands.

Inquire for more information about SMT Modular Jacks
