RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
1 / 5
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot

RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot

Send Inquiry

Product Description

RJ45 Connectors Overview
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
Products Description
Item RJ45 Female Connector
Bothhand Part Number HR961160C
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

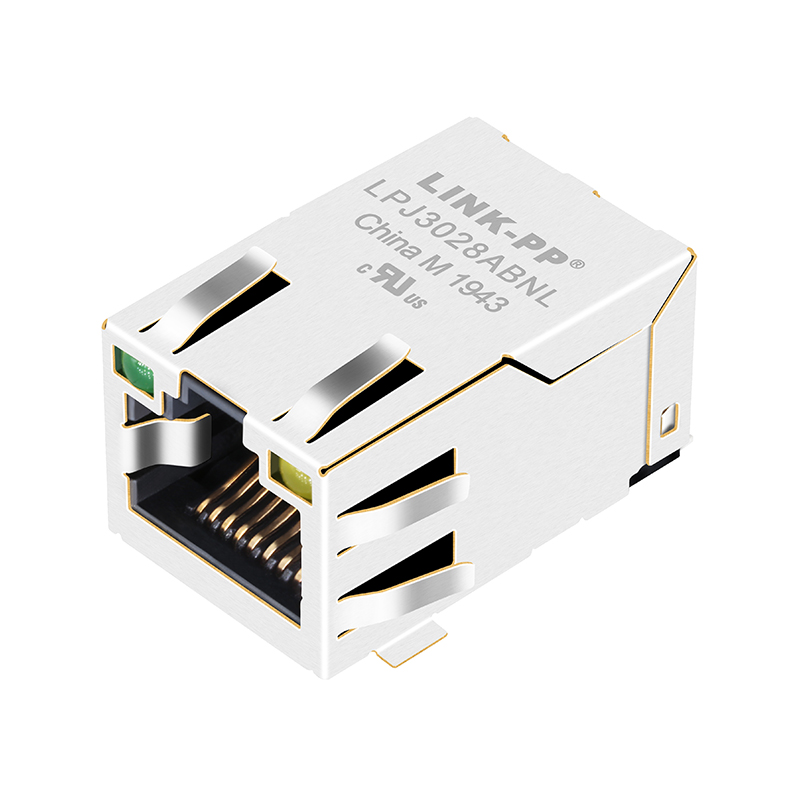

RJ45 Front View

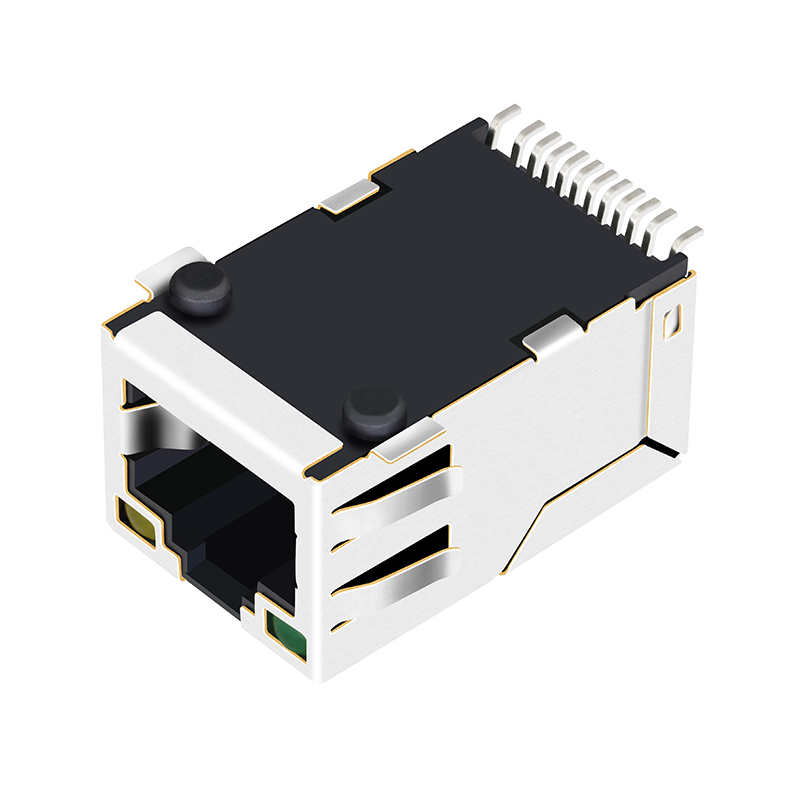

RJ45 Side View
RJ45 Inner Structure
RJ45 Mounting details
RJ45 Pins Configuration
RJ45 Connector Shield
✉ Click Below Products Link To Get More
Product Categories Grid
RJ45 Technical Drawing 1
RJ45 Technical Drawing 2
RJ45 Technical Drawing 3
RJ45 Technical Drawing 4
RJ45 Technical Drawing 5
RJ45 Technical Drawing 6
Company Profile
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Production Facility Inside
Quality Control Testing Room
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee will need to be covered on your end.
What is your delivery time?
We are ready to ship immediately for stock items. For mass production orders, the delivery lead time ranges between 15 to 30 days.
What after-sales service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us with your detailed requirements so we can proceed with a detailed discussion.
What is your key advantage?
We have 19 years of manufacturing and design experience, coupled with long-standing partnerships with leading global technology corporations.
