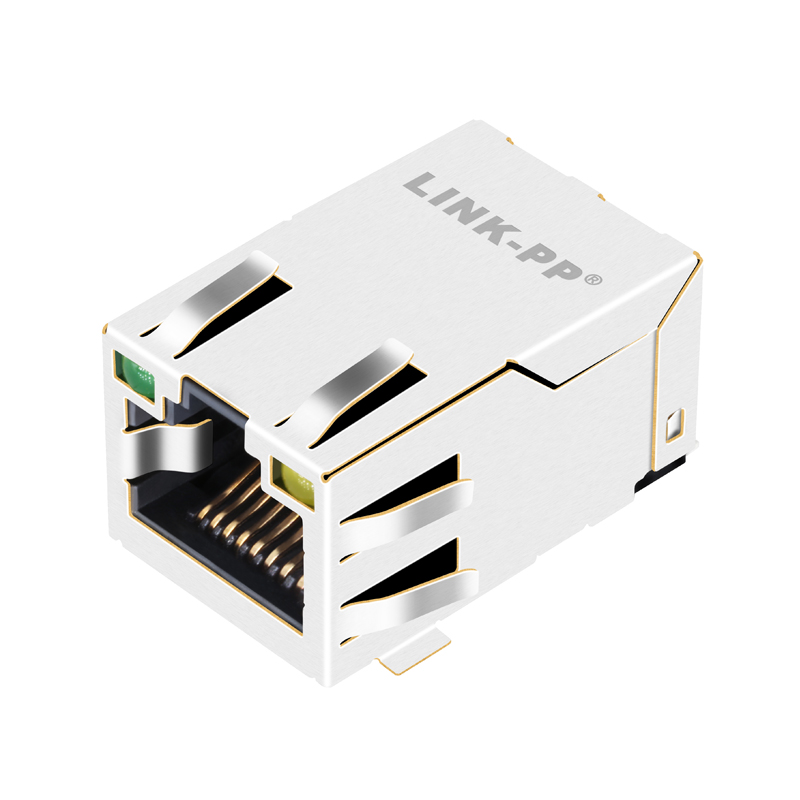

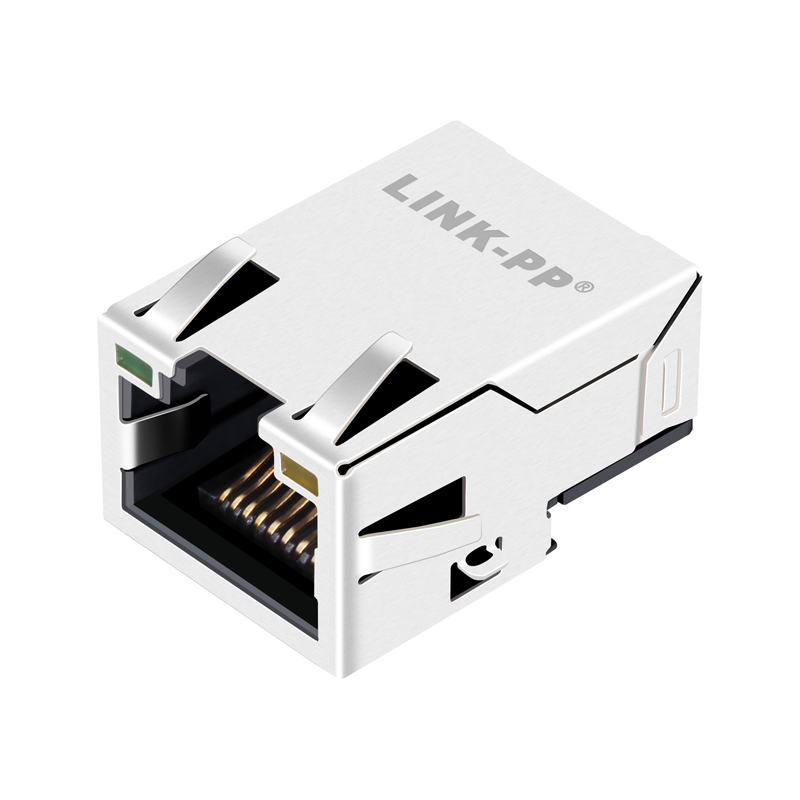

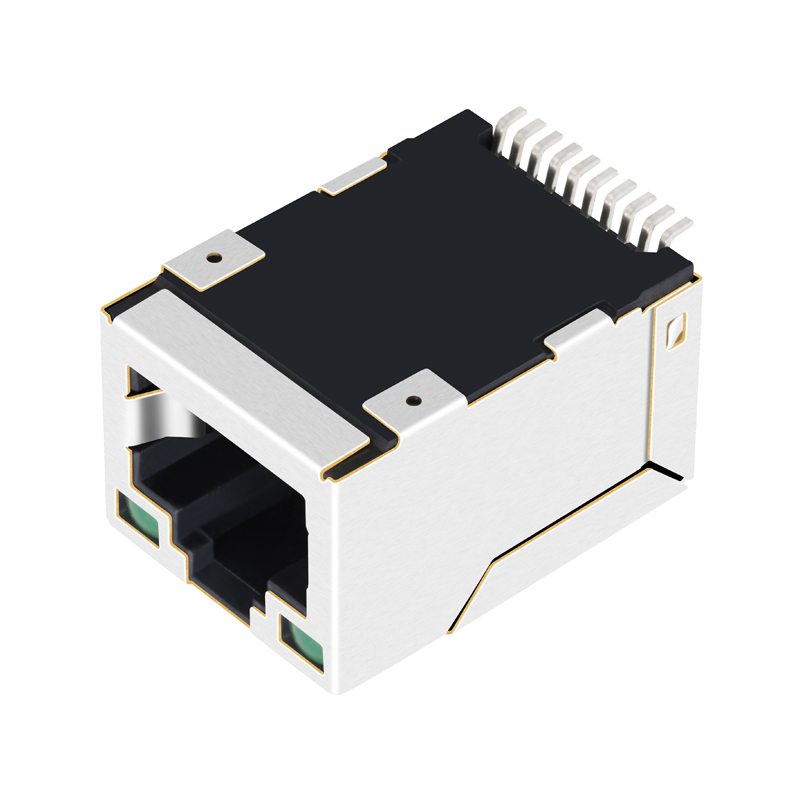

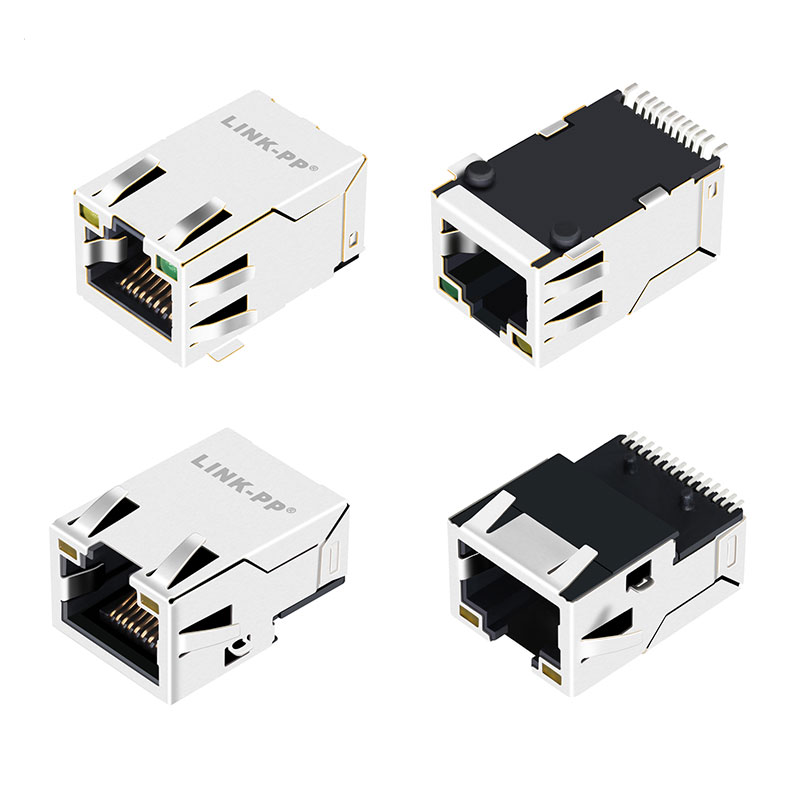

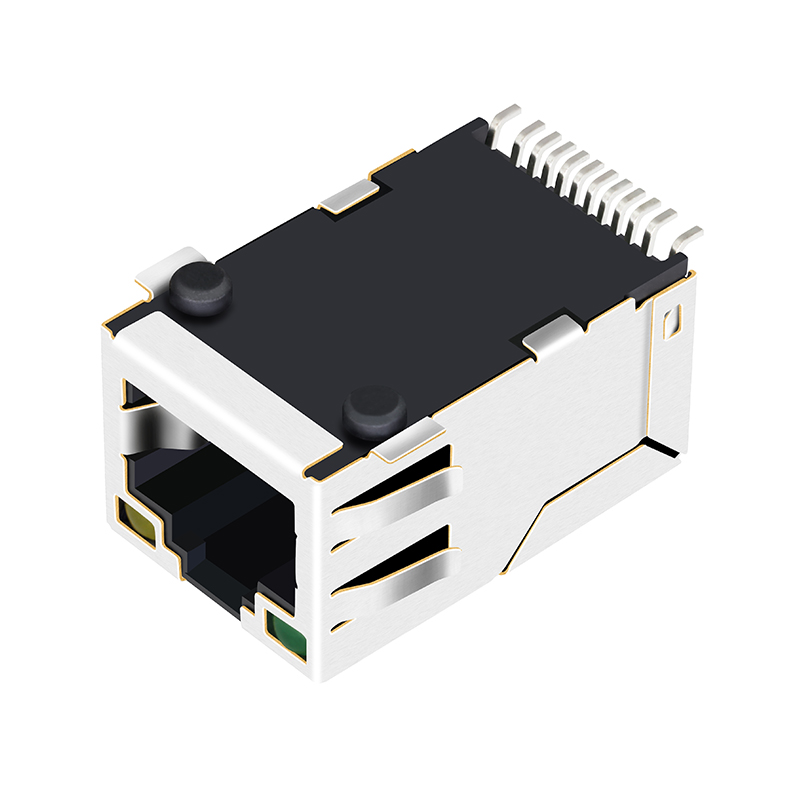

100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors

Product Description

Characteristics

RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores

Specification

Item	Value
Model Number	SMT RJ45 Connector
Part Status	Active
Connector Type	RJ45
Applications-Lan	Ethernet(PoE/Non_PoE)
Speed	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack	4/6/8/12
Shielding	Shielded, Emi Finger
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Down/Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C/-40°C ~ +85°C

Packing & Delivery

Packaging Details

Package Type: Tray
Carton Size: 34.5 * 34.5 * 27 cm
Gross Weight: 6.9 kg / carton
Quantity: 550 pcs / carton
Standard Packing Quantity (SPQ): 110 pcs
Net Weight: 0.013 kg / pcs
