JB0-1002NL 10/100 Base-t Tab up SMT Magnetic RJ45 Surface Mount Ethernet RJ45 Connector With Led

Product Description

Ethernet RJ45 Connector
JB0-1002NL 10/100 Base-t Tab Up SMT Magnetic RJ45 Surface Mount Ethernet RJ45 Connector With Led
Products Description
Item RJ45 Female Connector
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

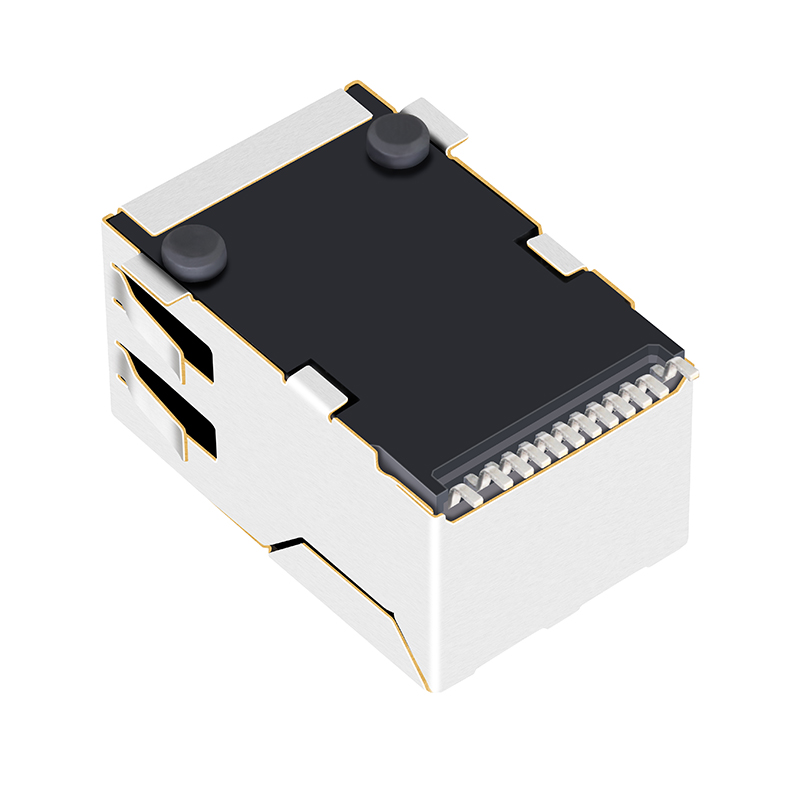

Product View 1

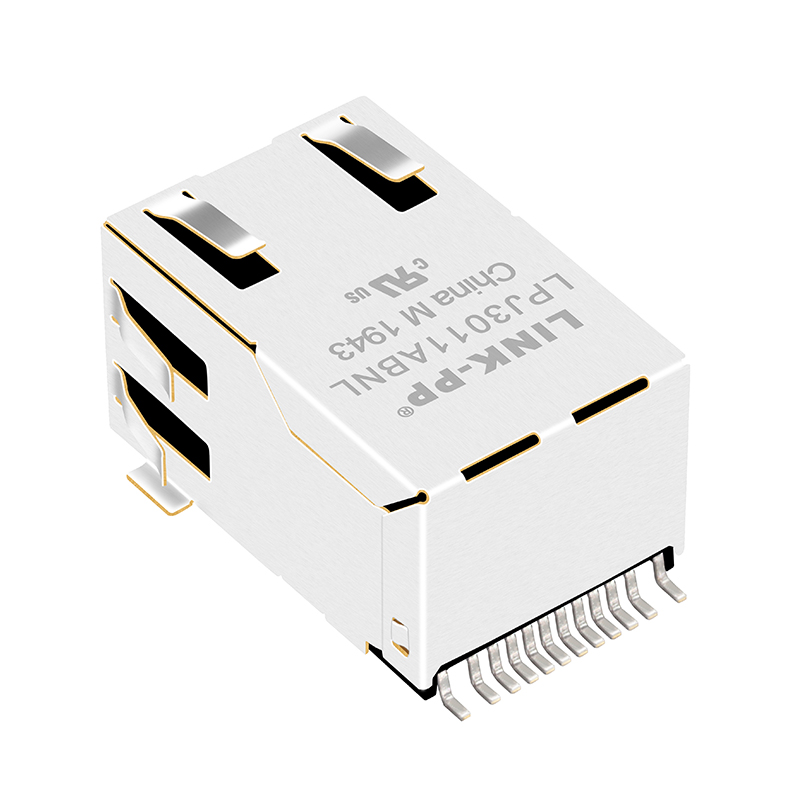

Product View 2

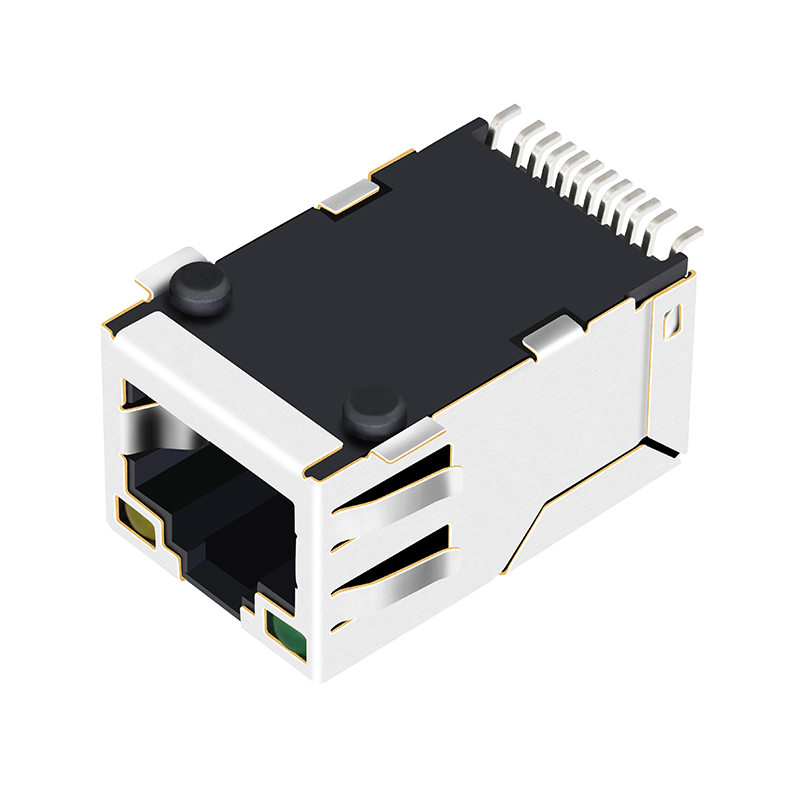

Product View 3

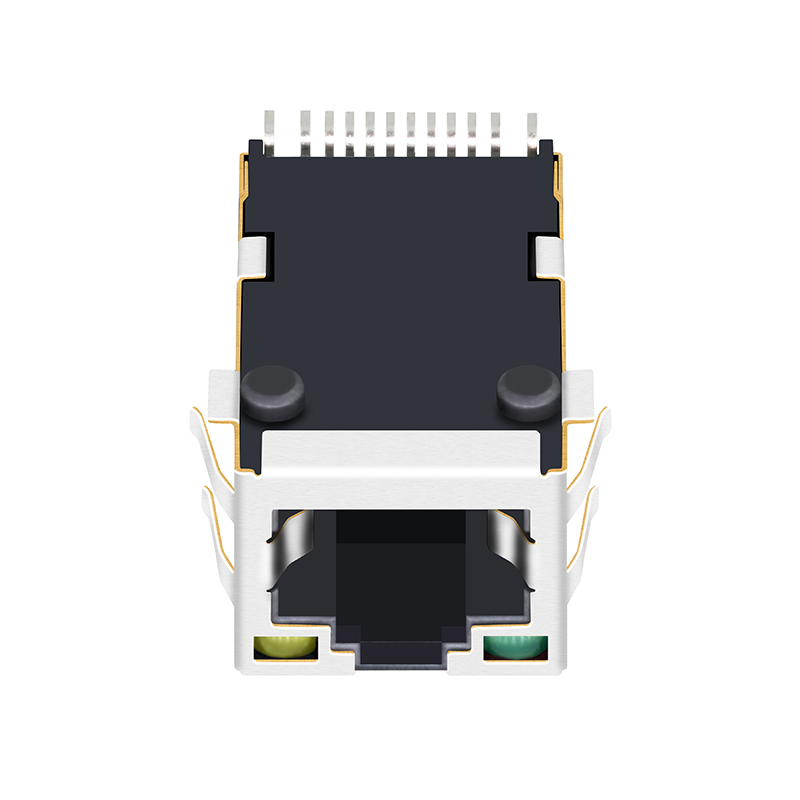

Product View 4
☄ Click Below Products Link To Get More ☄
Product Category Matrix
Production Process 1
Production Process 2
Production Process 3
Quality Inspection 1
Quality Inspection 2
Quality Inspection 3
Company Profile
Established in 1997, the company is a professional designer and manufacturer of magnetic telecom and networking components, with an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries, we are committed to building multi-warehouse systems in key areas and continuously increasing inventory. We strive to become the world's leading Ethernet RJ45 connector and LAN transformer provider.
Factory Facility
Manufacturing Workshop
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees are to be covered by the customer.
3. What is your delivery time?
Products in stock are ready to ship immediately, while mass production typically takes 15-30 days.
4. What after-service can you offer?
We provide a one-year warranty period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please contact us with your specifications so we can initiate a detailed discussion.
6. What is your advantage?
We have over 19 years of dedicated production experience and established partnerships with industry leaders worldwide.
