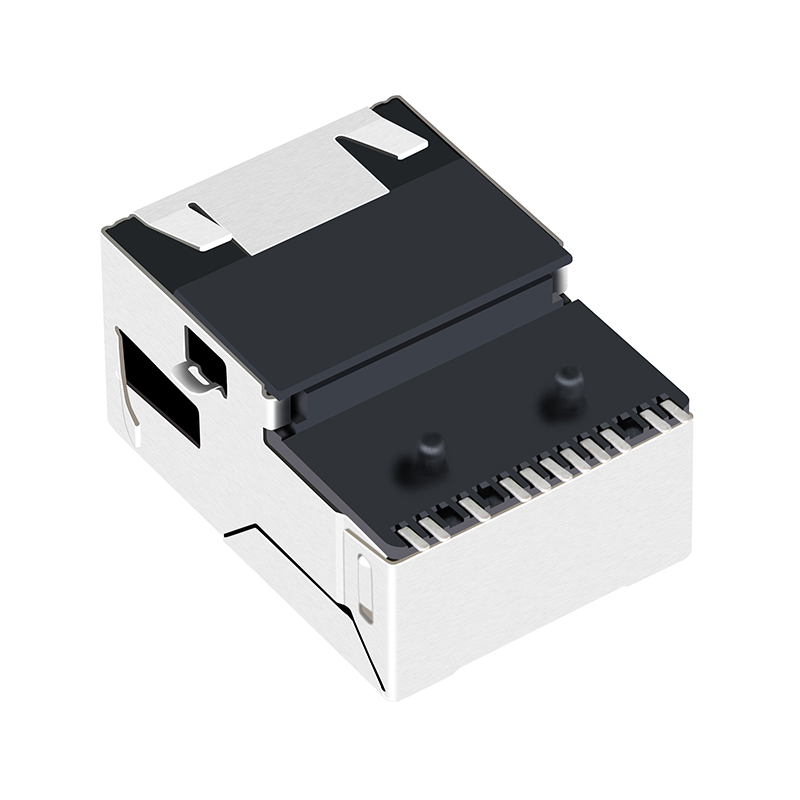

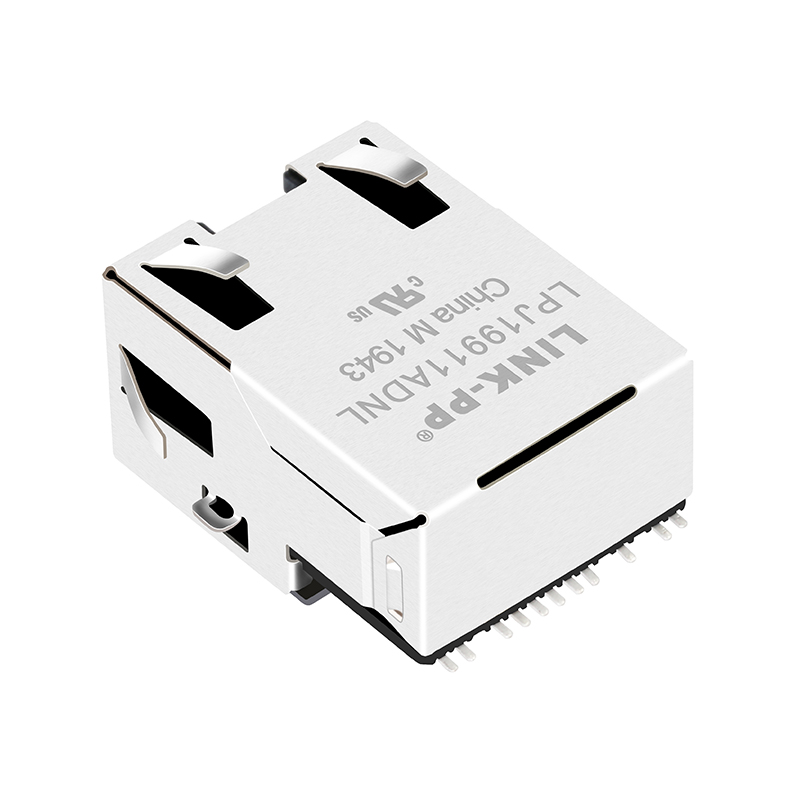

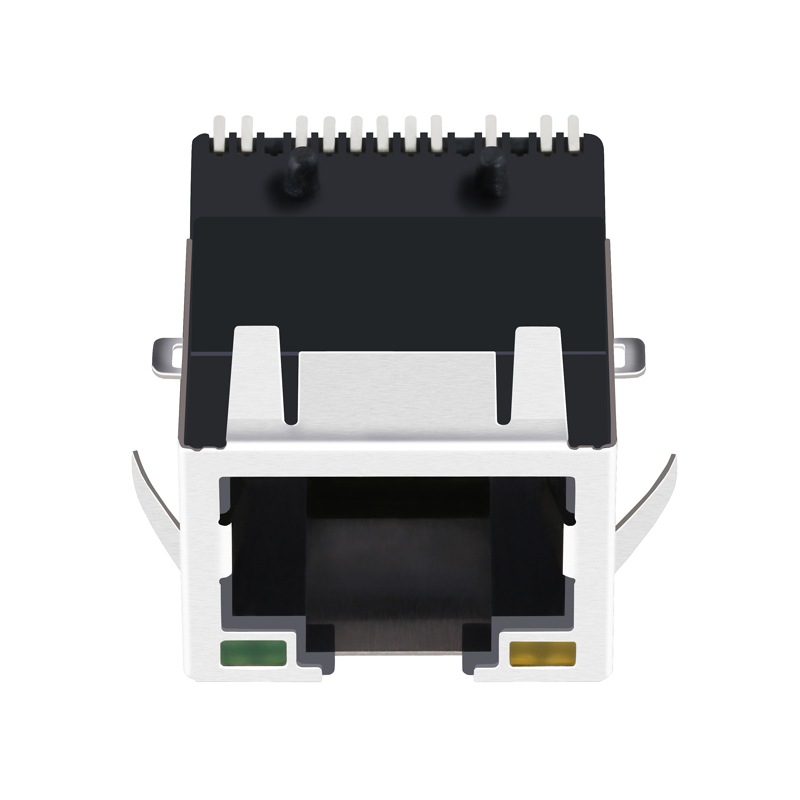

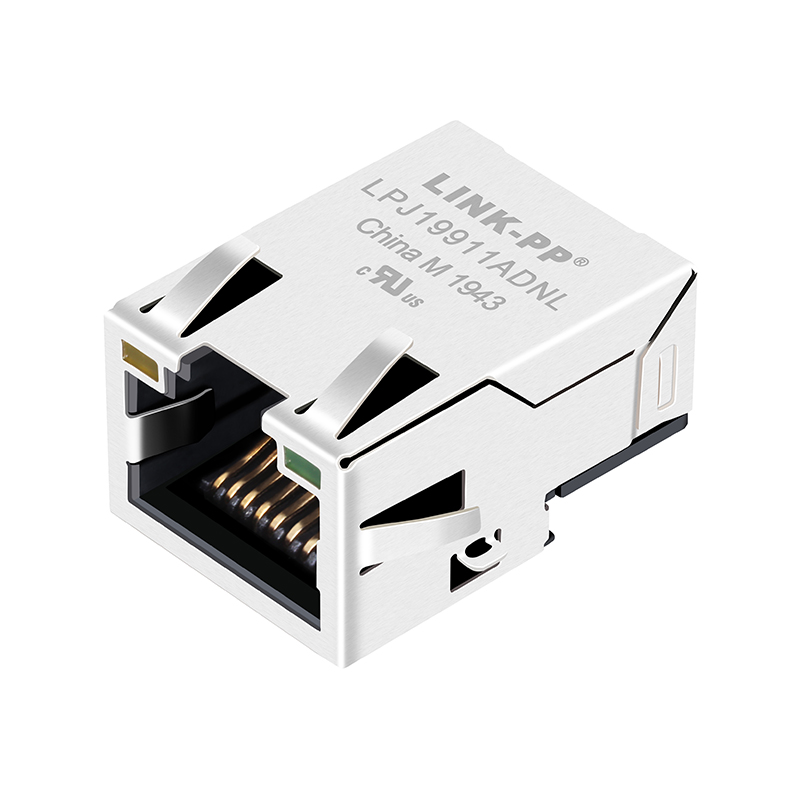

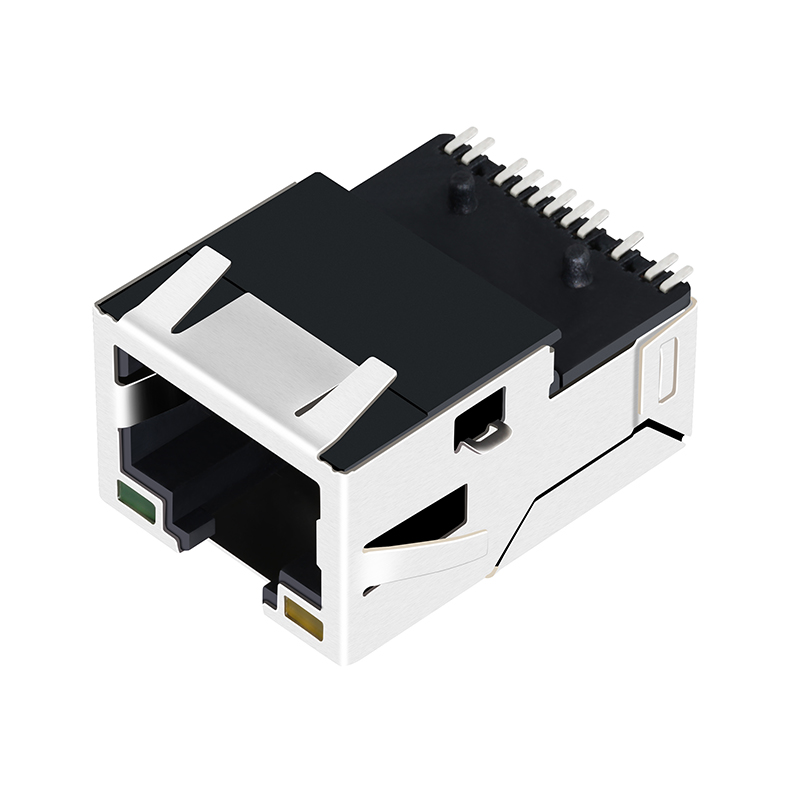

7498011122 7498011122AR Tab Up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With Leds

■ Products Description
Item RJ45 Female Connector
Part Number LPJ19911ADNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 180° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Yellow/Green
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Display Angle 1 Product Display Angle 2 Product Display Angle 3
Product Display Angle 4 Product Dimensions Guide
Technical Layout
Technical Specifications Sheet
Schematics Reference
Circuit Schematics
PCB Footprint Dimensions
Reflow Profile Guide
Packaging Box Dimension
