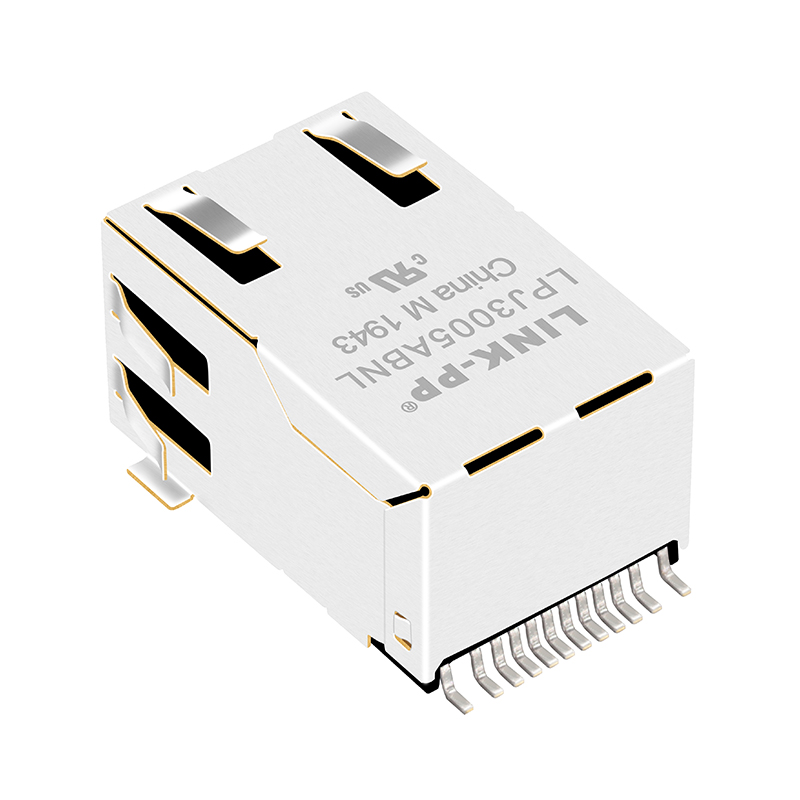

JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector

1 / 5

JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector

Send Inquiry

Product Description

Products Description

Item	RJ45 Female Connector
Part Number	LPJ3005ABNL
Cross Reference Part Number	JX30-0005NL 74980111211 J3011G21DNL
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port
Speed	10/100 Base-T
Latch	Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	-40°C TO 85°C
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

RJ45 Female Connector Product Detail View 1

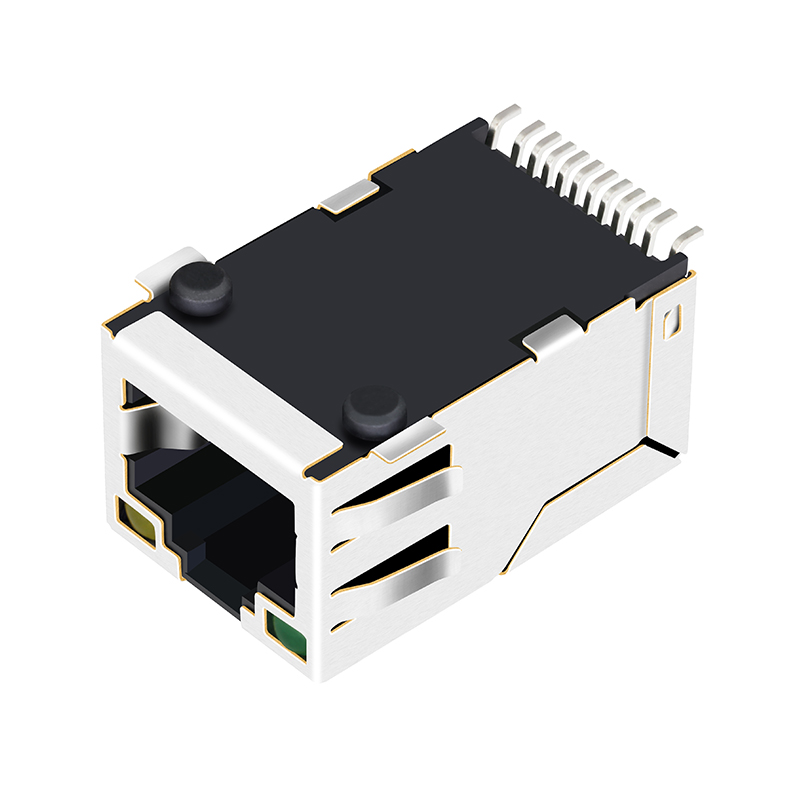

RJ45 Female Connector Product Detail View 2

☞ Recommended Product Range ☞

FAQ

Are you factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

Can I get a sample before mass production?

Yes, we can offer you free sample to test quality, but you should pay the shipping fee.

What is your delivery time?

Ready to ship for stock and 15-30 days for mass production.

What after-service can you offer?

One year guarantee period and we can offer technical support online 24 hours.

Can you accept OEM/ODM order?

Yes, please send inquiry to us so that we can have a detailed discussion.

What is your advantage?

19 years of production experience and we have been industry partners with top global brands for many years.
