| Tyco Part Number | 1116173-4 |
| Alternative Part Number | LPJE101AHNL |
| Application-LAN | ETHERNET(NON POE) |
| AutomDX | YES |
| Package Height (Inches/mm) | 0.516/13.10 |
| Package Length (Inches/mm) | 0.620/15.75 |
| Package Width (Inches/mm) | 0.640/16.26 |
| Configuration TX/RX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | - |
| Diodes | No |
| Latch | Up |
| LED Option | Green/Yellow LEDS |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | - |
| Temperature | -40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

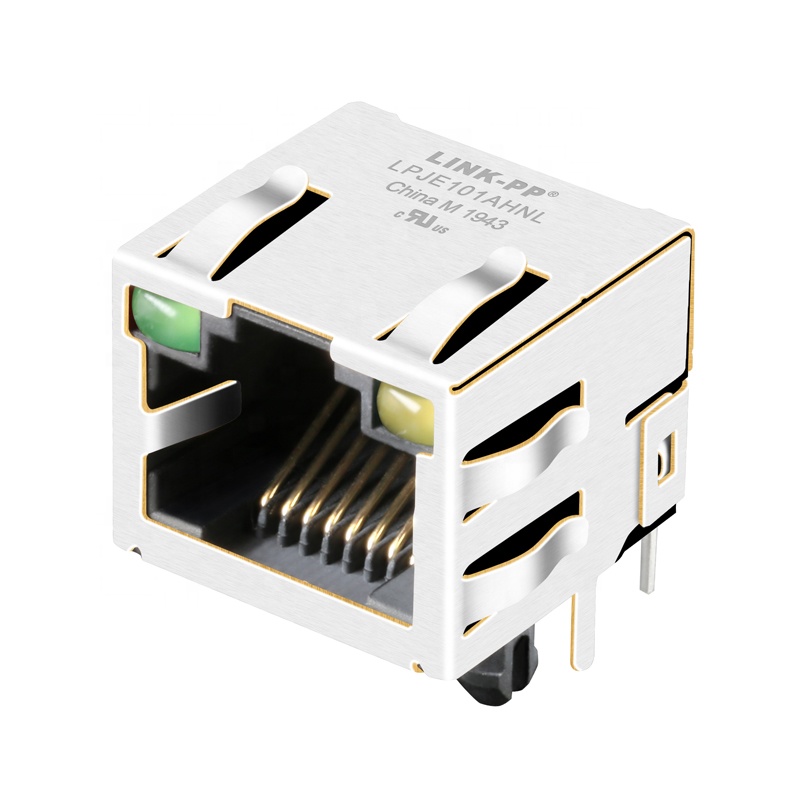

❓ What is the application of the 1116173-4 RJ45 Modular Jack?
This RJ45 modular jack is designed for Ethernet (Non-PoE) LAN applications, supporting Auto-MDIX (AutomDX) functionalities.
❓ What LED options are available on this modular jack?
The connector comes with integrated Green/Yellow LEDs to signal link status and network activity.
❓ What are the physical dimensions and mounting features?
It has a height of 0.516" (13.10mm), length of 0.620" (15.75mm), and width of 0.640" (16.26mm). It is a through-hole (THT) solder type with a side entry (right angle) PCB mount configuration and a T-post retaining mechanism.
❓ What is the operating temperature range for this product?
The modular jack is rated for operation across a wide industrial temperature range from -40°C to 85°C.
❓ Is this RJ45 connector compliant with environmental standards?
Yes, the product is compliant with RoHS regulations (specifically RoHS-5, with lead in solder exemption) and has Reach Certification.
