LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
1 / 5
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

Send Inquiry

Product Description

Product Description

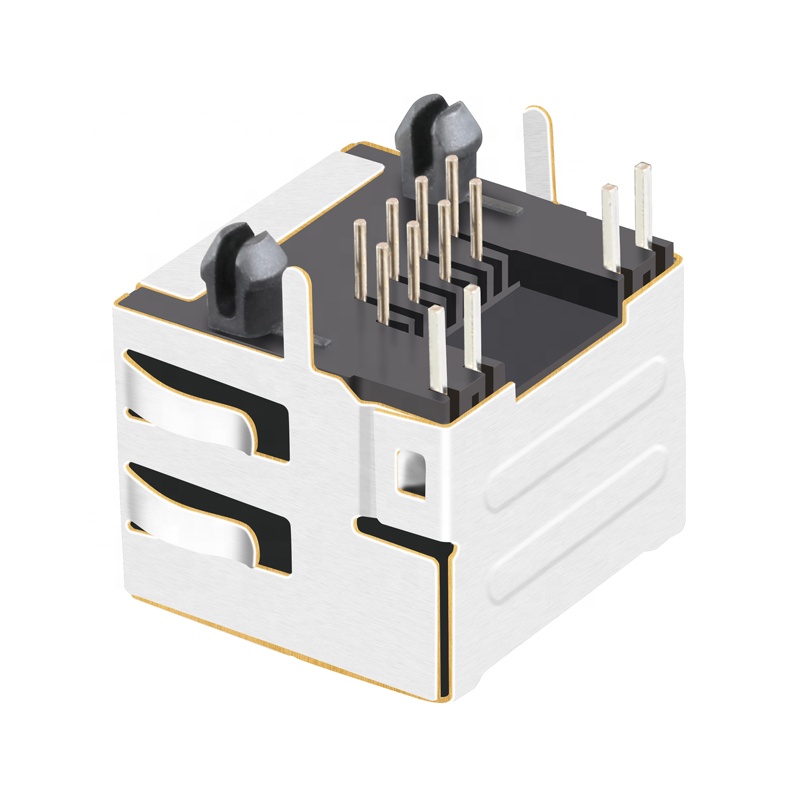

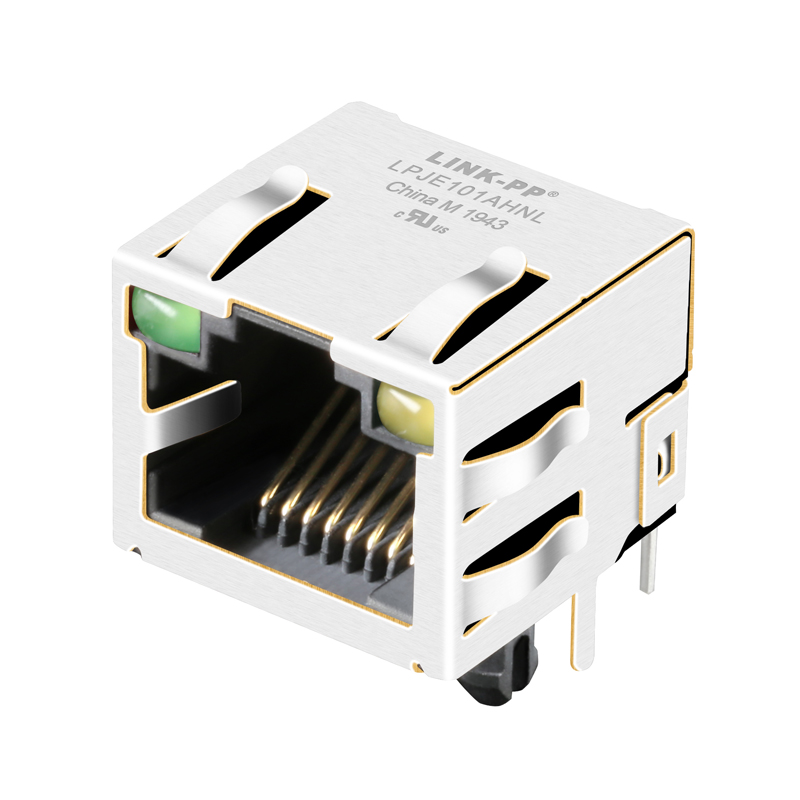

Product Image 1

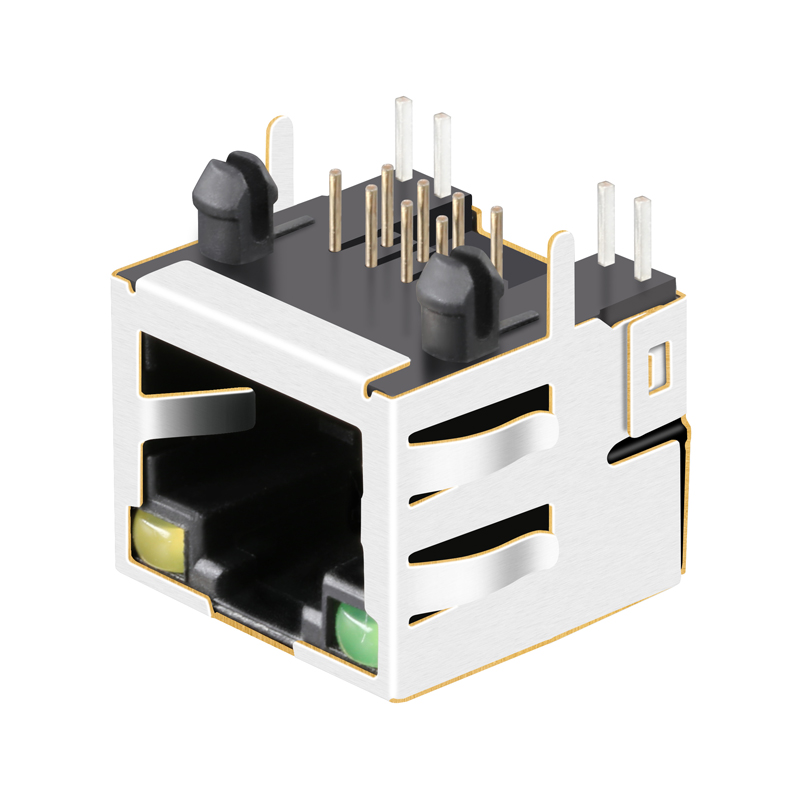

Product Image 2
Specification
Item Value
Model Number LPJE101AHNL
Part Status Active
Connector Type RJ45
Applications Without Magnetics
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Shielding Shielded, EMI Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Packing & Delivery
Package Details:
Package Type: Tray
Carton Size: 54.5*28.5*27cm
G.W./Carton: 13.1kg
Qty/Carton: 3000pcs
SPQ: 100pcs
N.W./Pcs: 0.004kg
Packaging Image
Company Profile
Company Image 1
Company Image 2
Company Image 3
Company Image 4
Company Image 5
Company Image 6
Frequently Asked Questions
What are the main application fields for the LPJE101AHNL connector?
The LPJE101AHNL is designed as an RJ45 connector without internal magnetics. It is widely used in network interfaces, telecommunication equipment, and board-to-board routing setups where external magnetics or direct non-magnetic connections are required.
What is the operating temperature range of this RJ45 connector?
This connector supports a wide operating temperature range from -40°C to 85°C, making it suitable for both standard indoor devices and demanding industrial environments.
Does the LPJE101AHNL include built-in LED indicators?
Yes, it features integrated dual-color Yellow/Green LEDs, which are ideal for indicating network connection status and activity directly on the port.
What are the mechanical mounting parameters for this product?
The LPJE101AHNL is designed for through-hole mounting with a 90-degree right angle orientation. It features a board guide for secure positioning during soldering and has an up-tab direction configuration.
What is the contact finish and thickness?
The contacts are plated with gold, featuring a contact finish thickness of 6.00µin (0.152µm). This ensures reliable conductivity and strong corrosion resistance over its lifespan.
