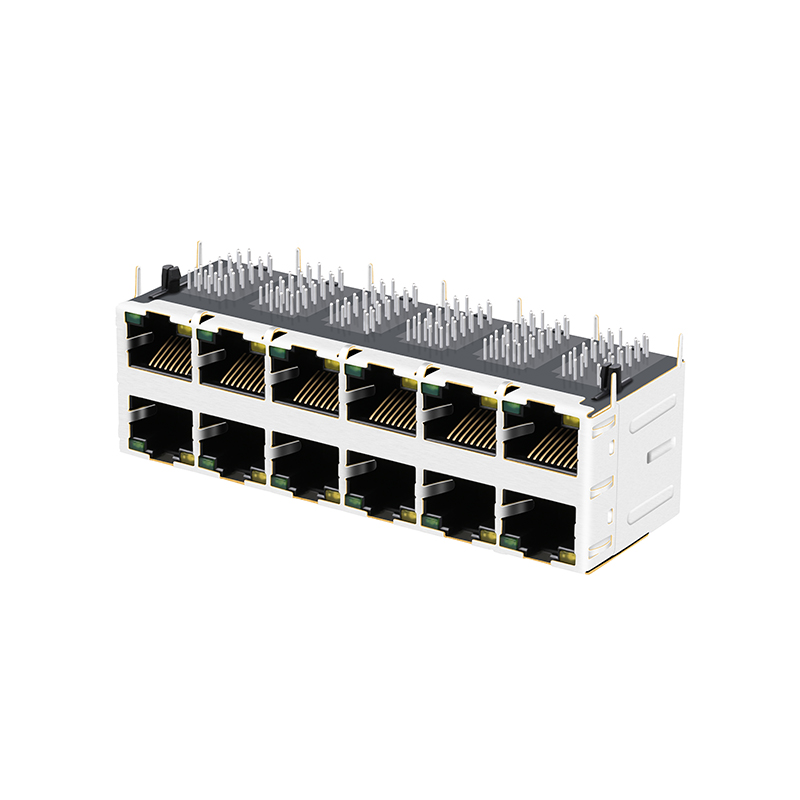

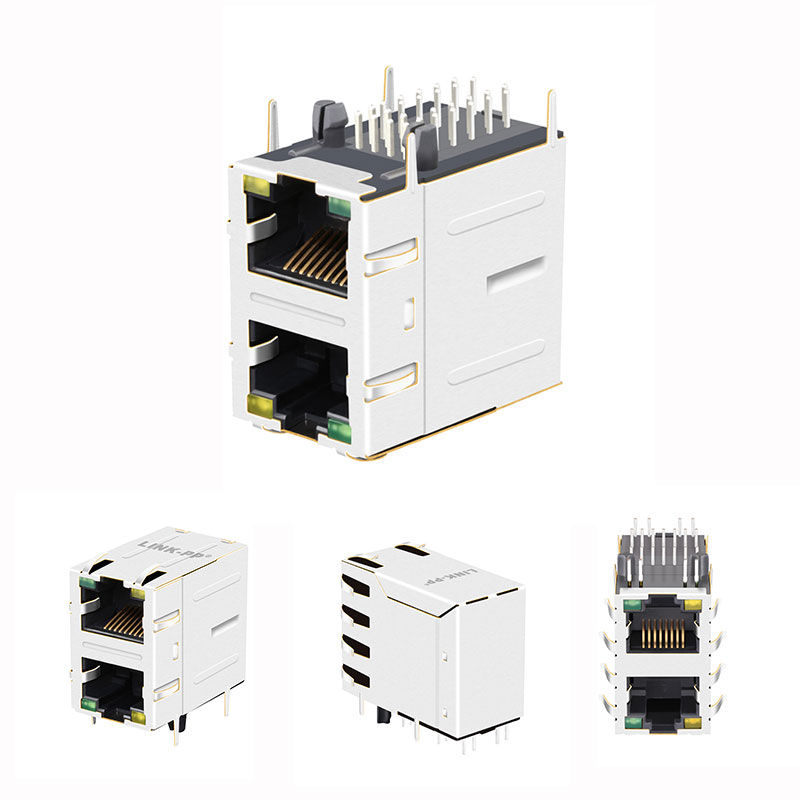

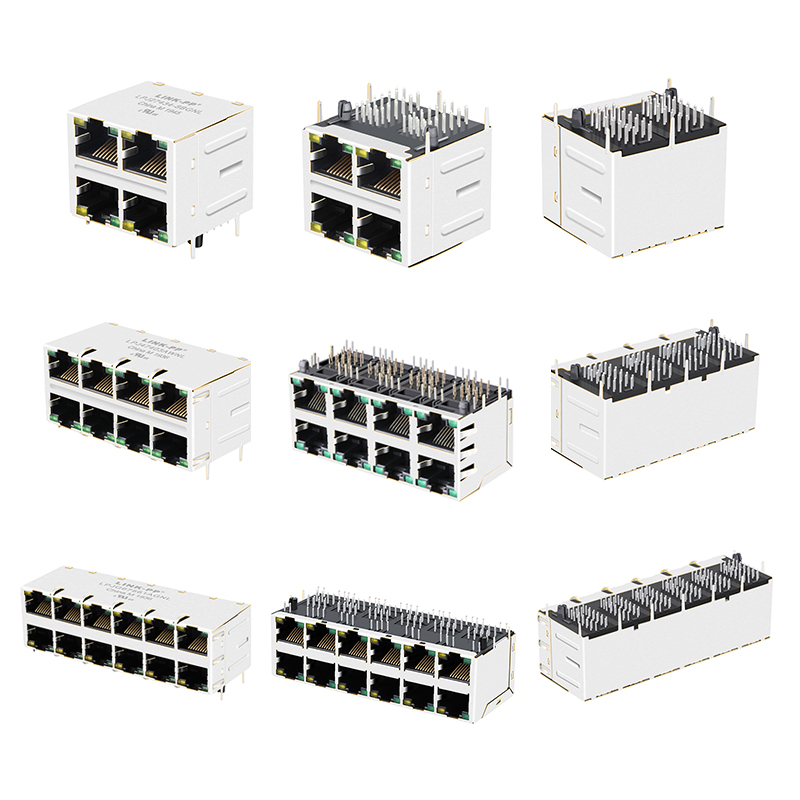

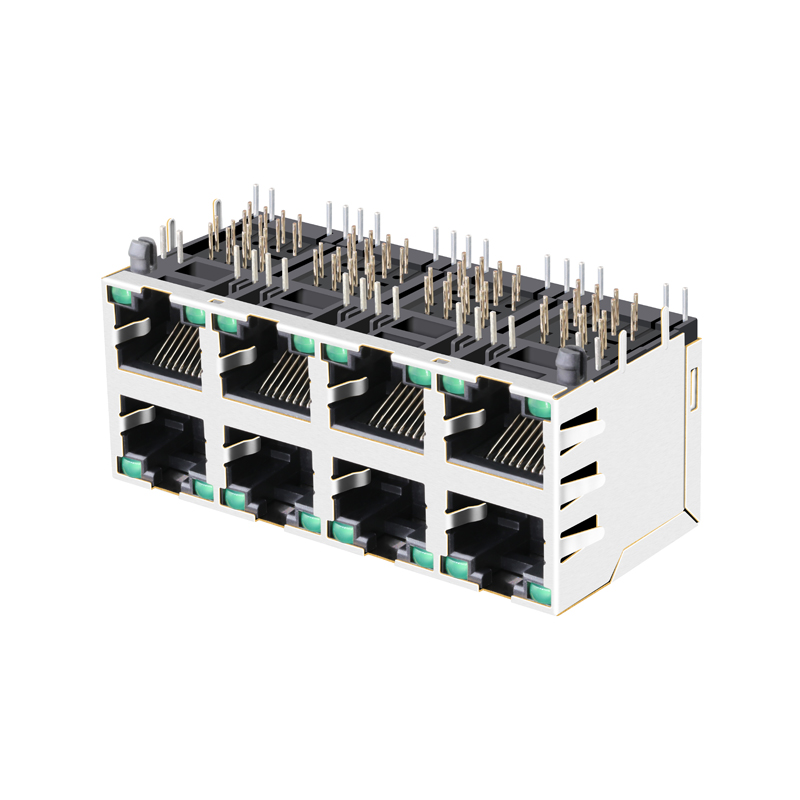

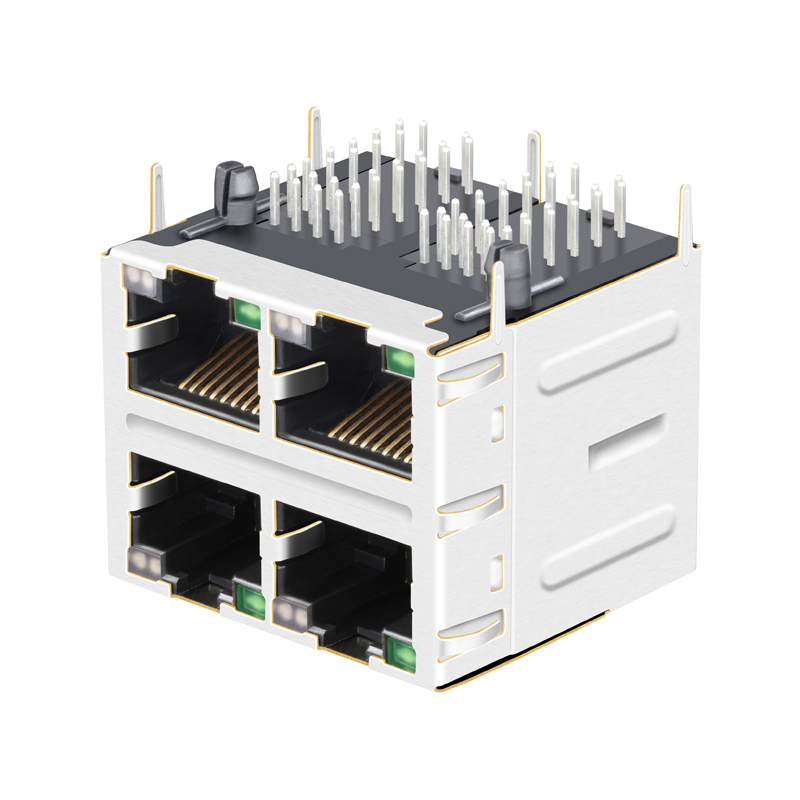

2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
1 / 5
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack

2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack

Send Inquiry

Product Description

Product Description

  • Integrated Design: RJ45 Connector with integrated transformer / common mode choke.
  • PoE Capabilities: Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s.
  • Versatile Configurations: Available in SMT, THT and THT with USB.
  • Standard Compliance: Fully compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt.
  • HPLE Technology: Improved Common Mode Rejection due to additional NiZn cores.

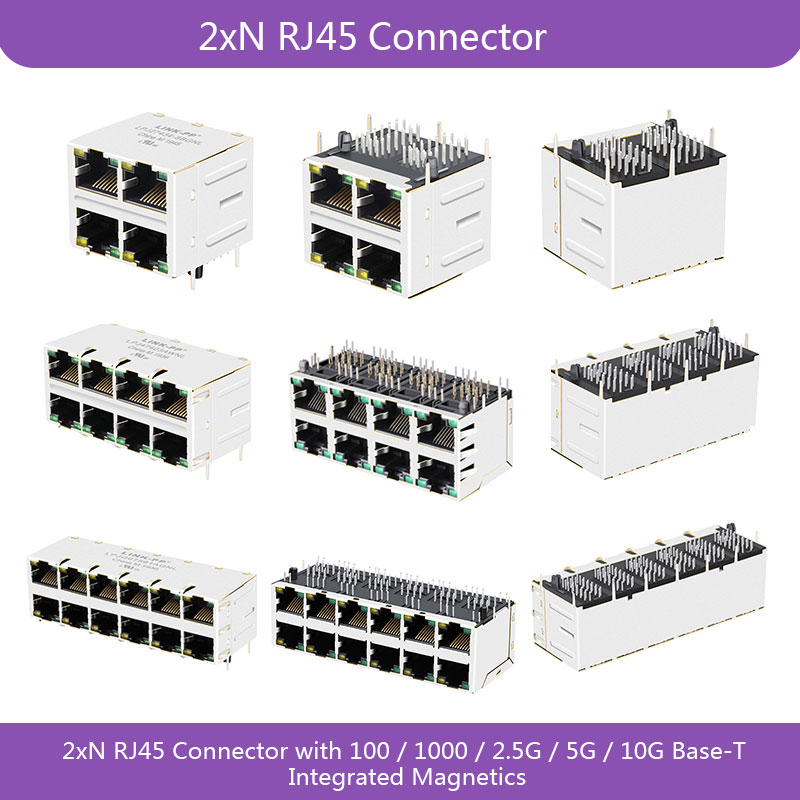

RJ45 Filtered Connector

Specification

Specification Item Parameter Value
Model Number RJ45 Filtered Connectors
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(PoE/Non_PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, Emi Finger
Number of Ports 2x1 2x2 2x4 2x6 2x8 Port
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C / -40°C ~ +85°C

Packing & Delivery

Standard Packaging Specifications:
Package: Tray
Carton Size: 32 x 30 x 31 cm
G.W./Carton: 8.5 kg
Qty/Carton: 1200 pcs
SPQ: 50 pcs
N.W./Pcs: 0.007 kg
Packaging Box Detail

Factory & Production Profile

Production Facility Office Automated Manufacturing Workshop Testing and Assembly Line Quality Inspection Center Warehouse Storage Packaging Department Shipping Area

Frequently Asked Questions

1. Who are we?
We are a dedicated manufacturer and supplier of networking components, serving globally with strong distributions across North America, South America, Southeast Asia, Eastern Europe, and Africa. We operate with a massive production facility to handle high-volume demands.
2. How do we guarantee quality?
Quality is our absolute priority. We strictly implement a process that includes providing a pre-production sample before start of mass production, and conducting a 100% rigorous final inspection before shipment.
3. What products can you purchase from us?
You can purchase a full range of high-performance connectivity components, including RJ45 Magnetic modules, LAN transformers, RJ11 Connectors, RJ45 Standard Connectors, and SFP modules.
4. Why should you choose us over other suppliers?
We offer decades of specialized experience in RJ45 connector and LAN transformer manufacturing. Our products are fully certified by SGS, ISO9001, UL, REACH, and CE. We possess a powerful weekly production capacity and are trusted by leading global electronics manufacturers.
5. What terms of delivery and payment services do we offer?
We support diverse delivery terms (FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery) and accept multiple payment options including T/T, L/C, D/P, D/A, Credit Cards, PayPal, and Western Union in various major currencies (USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF).
6. Can these connectors support high-power POE devices?
Yes, our integrated RJ45 connectors support Power over Ethernet (PoE) configurations up to 50 Watts and are compatible with current standard PoE protocols (IEEE 802.3af/at/bt), making them ideal for high-capacity applications.
