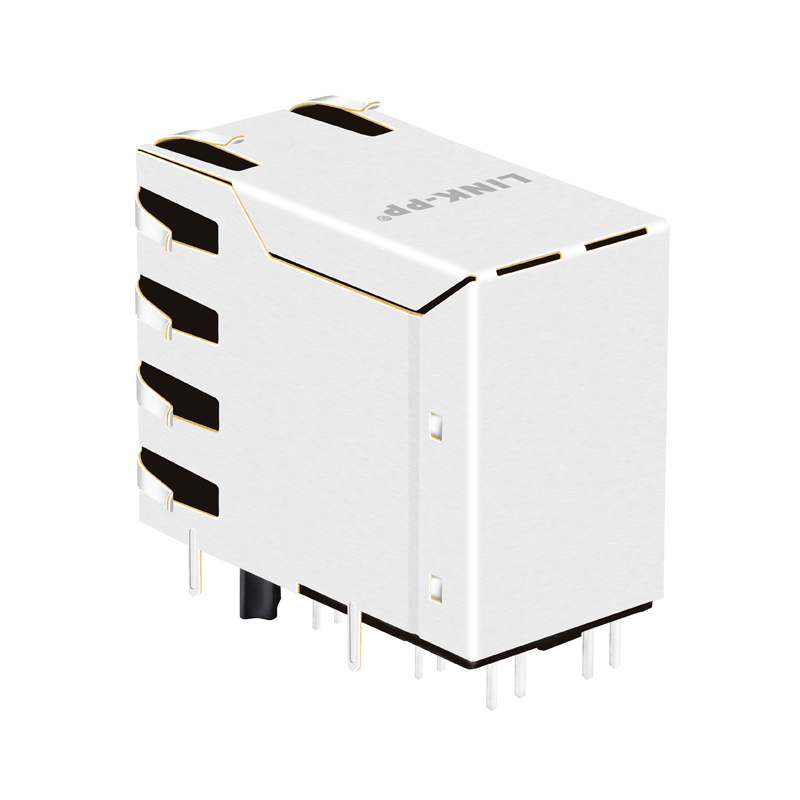

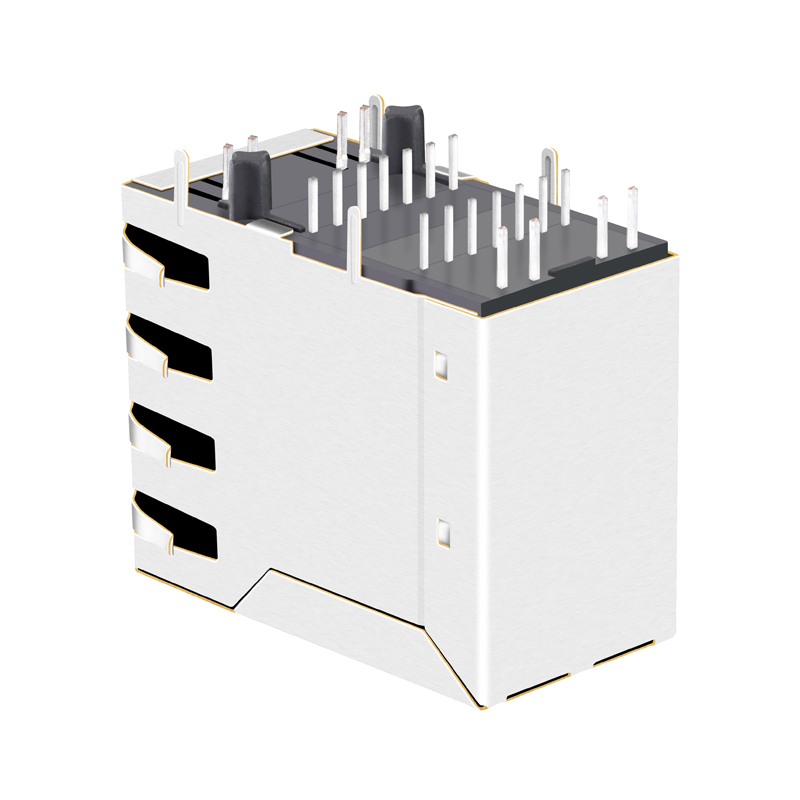

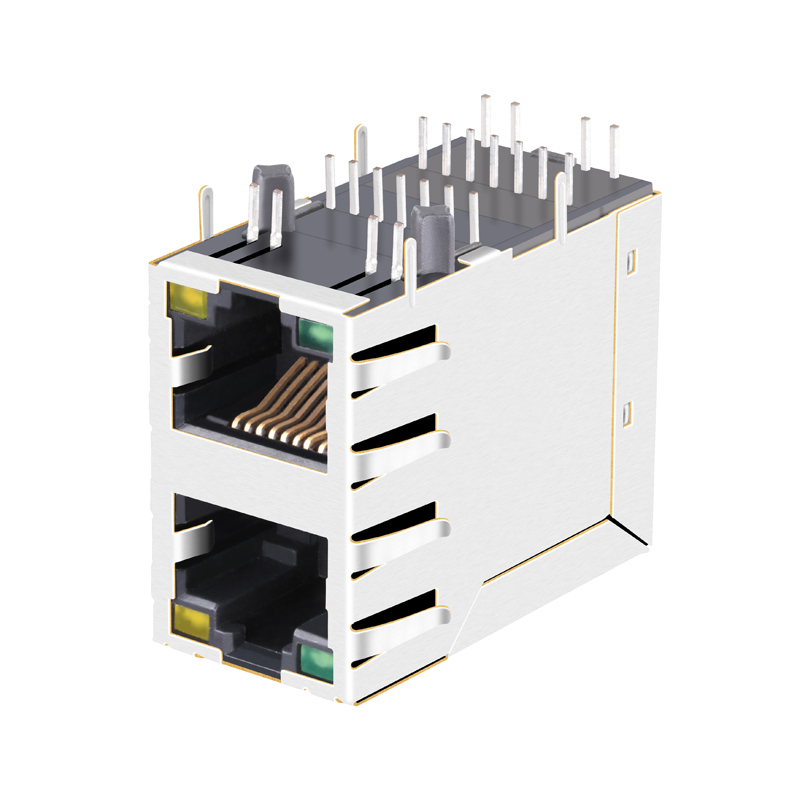

China Manufactures 2x1 Port Shielded RJ45 Modular Jack
| 2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics , Without LED, Tab Down/Up, RoHS |
| Part Number |
LPJ17202CNL |
| WE Part Number |
MIC24A10-0101W-LF3 / 7499051002 |
| Application-Lan |
ETHERNET(NoN PoE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores per Port |
NO |
| Diodes |
NO DIODES |
| LED Option |
Without |
| Latch |
TAB DOWN / Up |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
With |
| Speed |
10/100 Base-T |
| Temperature |
-40 TO 85℃ |
| Turns Ratio RX |
1CT:1CT |
| Turns Ratio TX |
1CT:1CT |
Why Choose Us
World's Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price Than Market Standards
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL, UPS, FEDEX, Or TNT
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
Frequently Asked Questions
1. What are the key specifications of the 2x1 Port Shielded RJ45 Modular Jack?
This connector is a 2x1 port RJ45 modular jack with 10/100 Base-T integrated magnetics. It is designed without LEDs, has a Tab Down/Up latch configuration, and is fully RoHS compliant.
2. What transmission speed does this RJ45 connector support?
This RJ45 connector supports fast Ethernet speeds of 10/100 Base-T, making it ideal for non-PoE Ethernet applications.
3. What is the operating temperature range for this modular jack?
This product is designed to operate reliably under industrial and harsh conditions, with a working temperature range of -40°C to +85°C.
4. Does the connector come with EMI shielding and LED options?
Yes, it features EMI shielding tabs to prevent electromagnetic interference. However, this specific model comes without integrated LEDs.
5. What certifications do these RJ45 modular jacks hold?
The manufacturing processes and products are certified under ISO 9001:2008, UL Certification, REACH Certification, and RoHS Compliance standards.
6. Are custom designs and product samples available?
Yes, we provide new designs tailored to specific customer requirements, and free product samples can be requested for testing.
