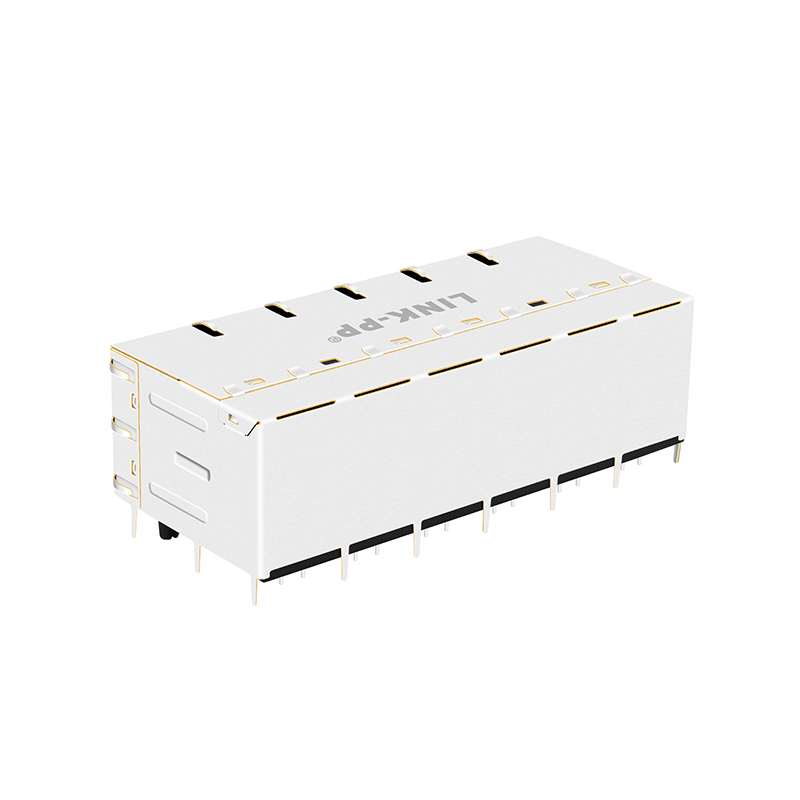

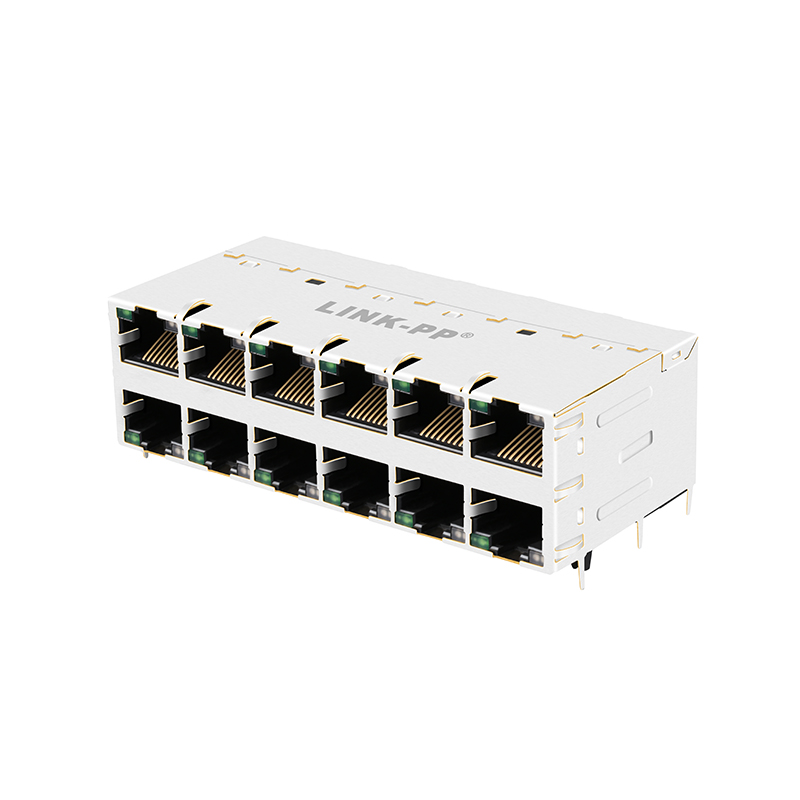

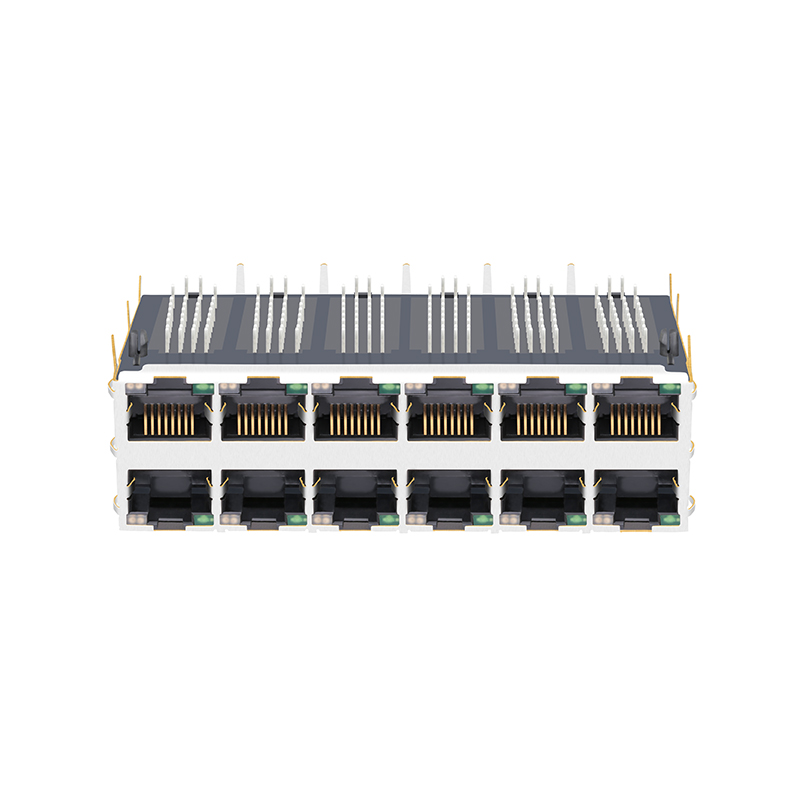

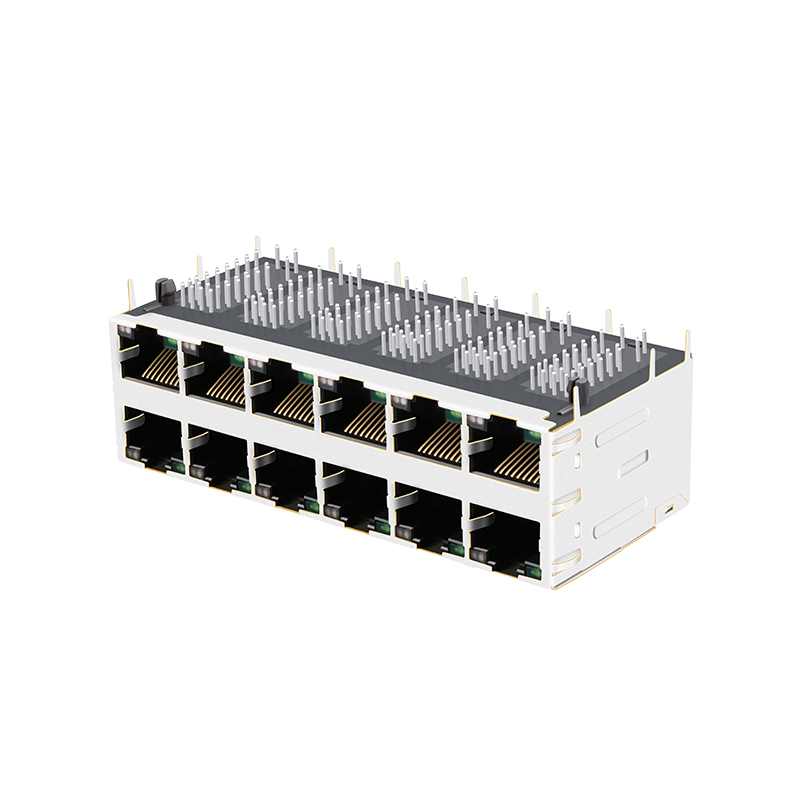

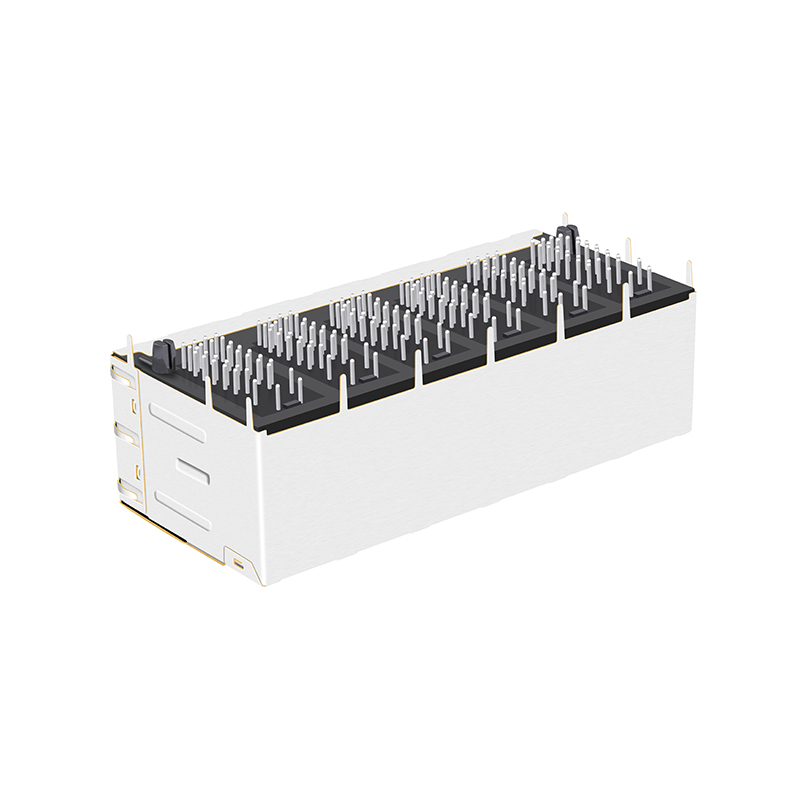

| Item | RJ45 Female Connector |
| Part Number | LPJ67312A43NL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 2x6 Port |
| Speed | 10/100 Base-T |
| Latch | Up/Down |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we currently have around 2000 staff. With an abundant production capacity of 3000K per month, we are able to deliver the goods in a short time. Moreover, we provide professional complete solutions for magnetic components as well as strong technical support.
Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL, and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for our customers' unique requirements. We trust that our strength in the field and our focus on higher quality will make us your long-term partner.
