71F-1202GYDZ2NL 2*1 Port RJ 45 Ethernet RJ45 Socket Connector

Product Description

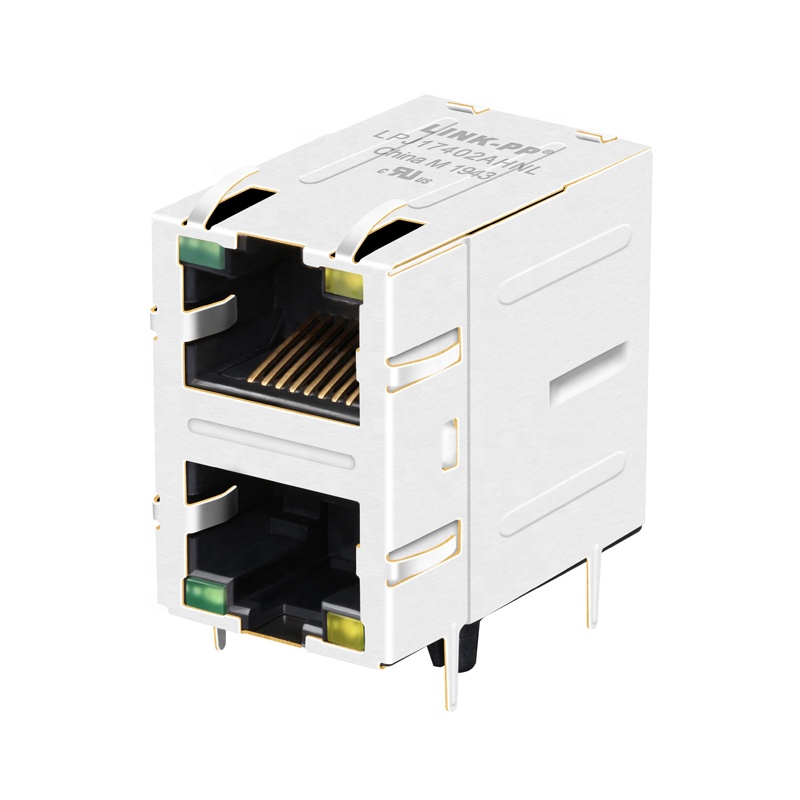

RJ45 Connector Image 1
RJ45 Connector Image 2

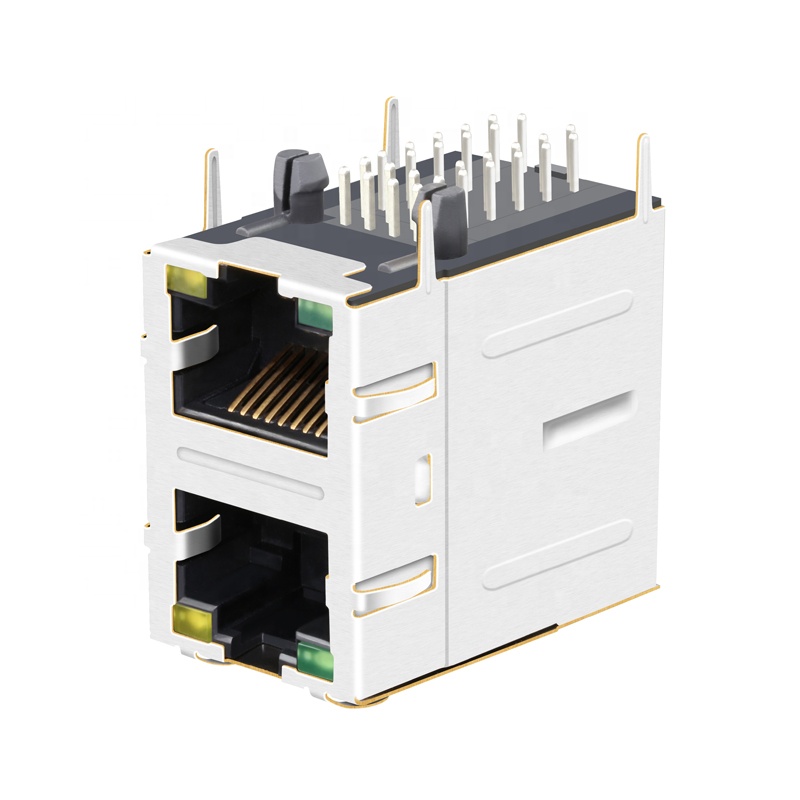

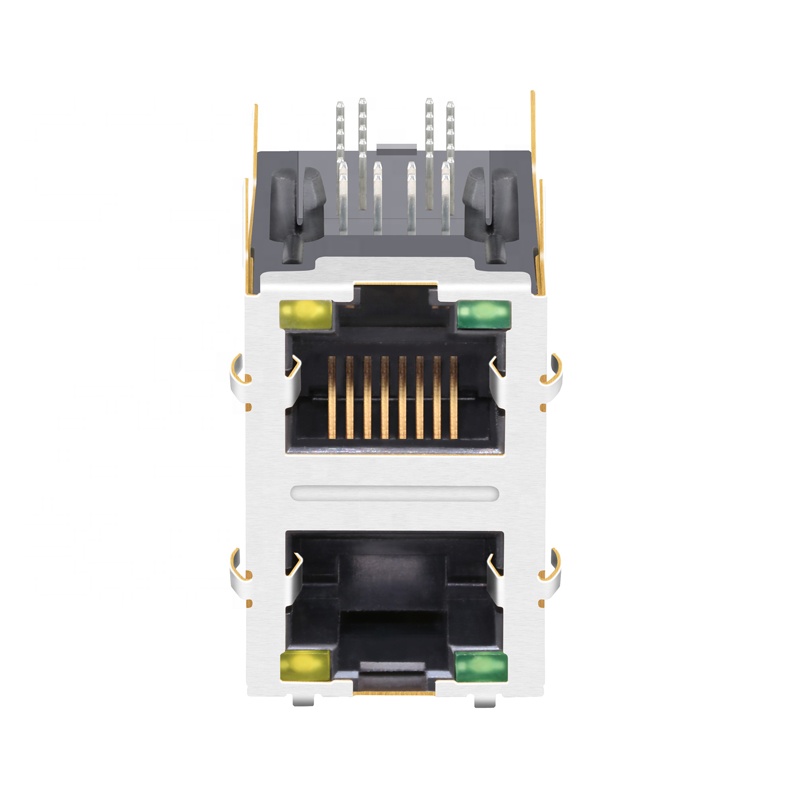

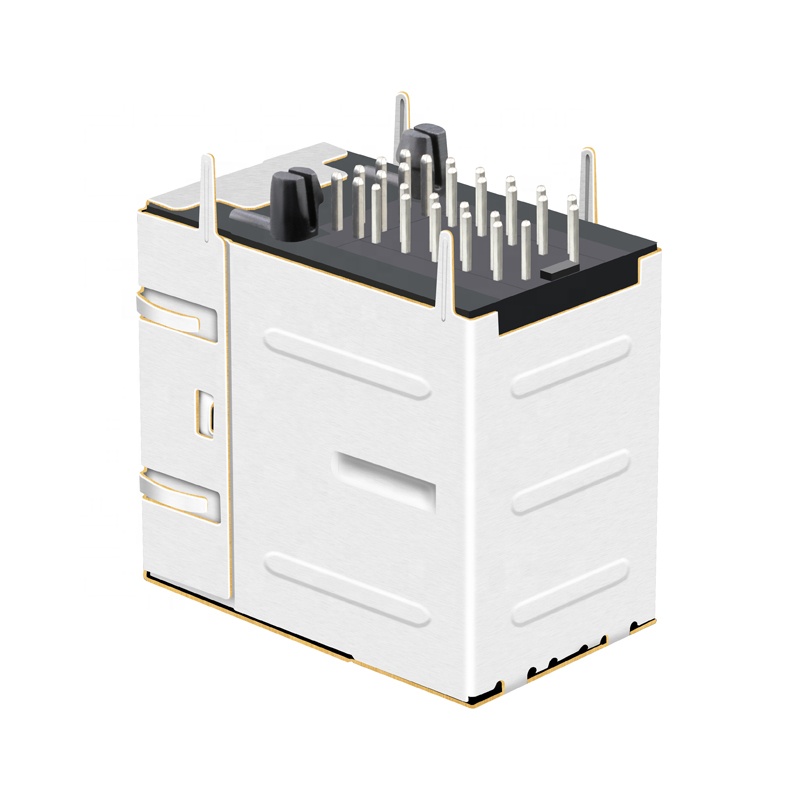

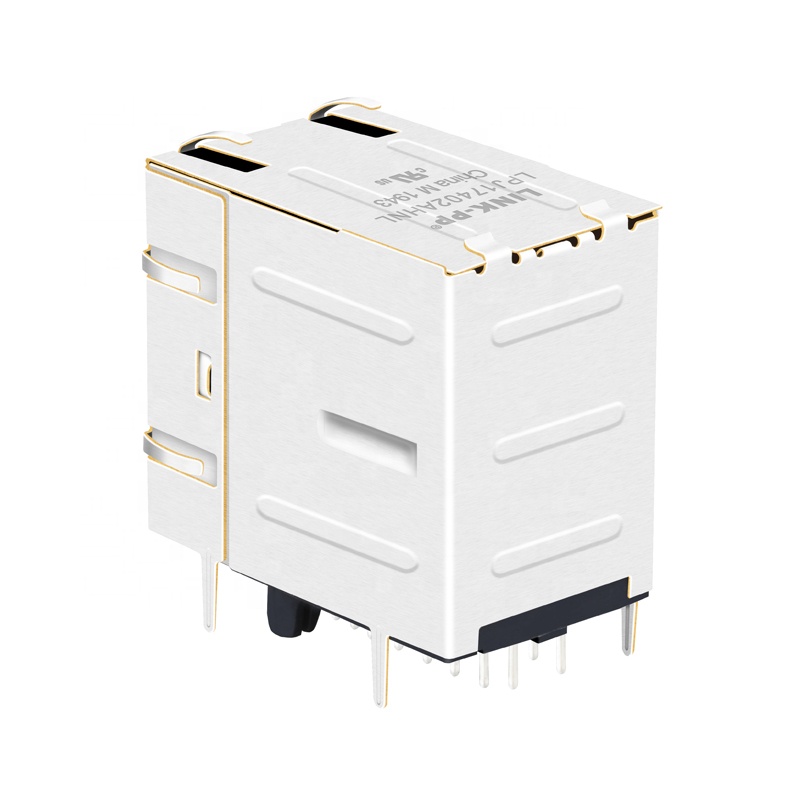

71F-1202GYDZ2NL 2*1 Port RJ 45 Ethernet RJ45 Socket Connector

Products Description
Item Specification Details
Item RJ45 Female Connector
Part Number LPJ17402AHNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 2x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Options Matrix

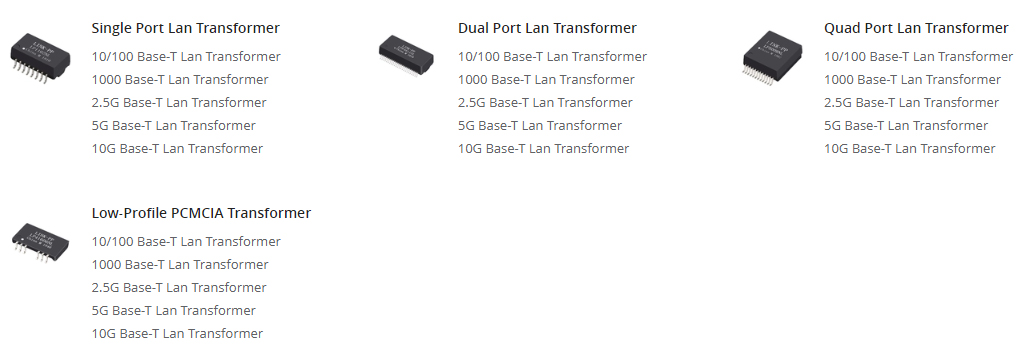

Lan Transformer Lineup
Send Inquiry To Get Latest Price List
Certificates
Why Choose Us
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have a large dedicated staff at present. With an abundant monthly production capacity, we are able to deliver goods within short lead times. Moreover, we provide professional, comprehensive solutions for magnetic components alongside strong technical support.

Main Products: 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with 10/100/1000M magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and ISDN, HDSL, ADSL and VDSL interface line transformers and splitters. Our products are widely used in networking and communication equipment such as HUBs, PC cards, switches, routers, PC mainboards, SDH, PDH, IP phones, and xDSL modems. We have exported our products to more than 30 countries and regions worldwide, serving a global clientele. Our dedicated engineering staff is committed to identifying, developing, and manufacturing optimal solutions tailored to unique customer requirements.
FAQ
Q 1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q 2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping costs.
Q 3. What is your delivery time?
Ready to ship for products in stock, and 15-30 days for standard mass production.
Q 4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q 5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can proceed with a detailed discussion regarding your custom requirements.
Q 6. What is your advantage?
We offer nearly two decades of production experience and are a trusted partner to major global electronics manufacturing companies.
