| Part Number | 0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020 |
| Application-LAN | ETHERNET(NON PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | Yellow/Green LEDS |
| Latch | UP/Down |
| Number of Ports | 2x1 Port |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 10/100 Base-T Magnetics |
| Temperature | -40 TO 85°C / 0 TO 70°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

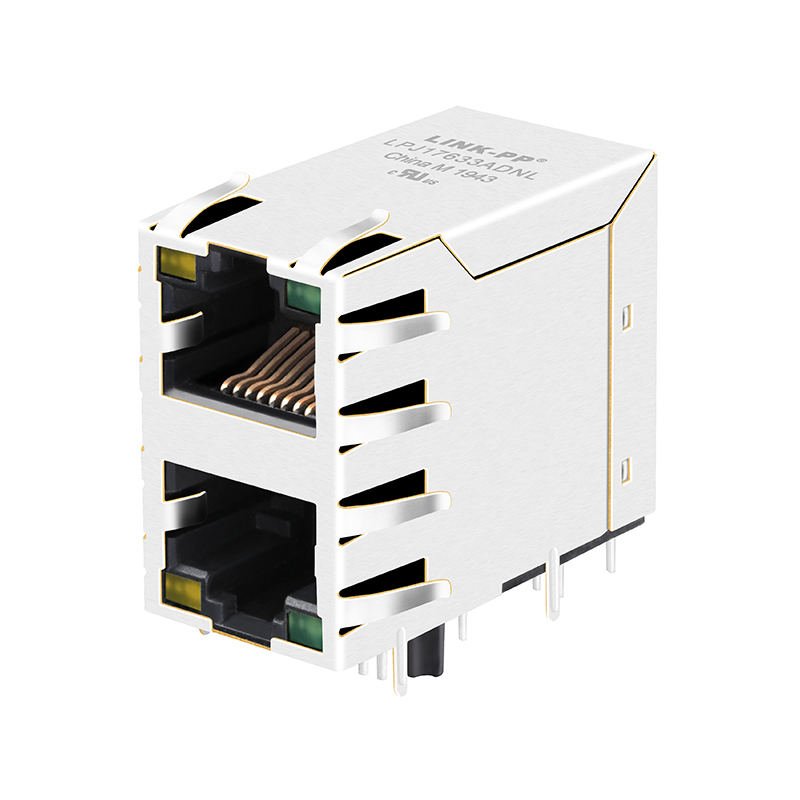

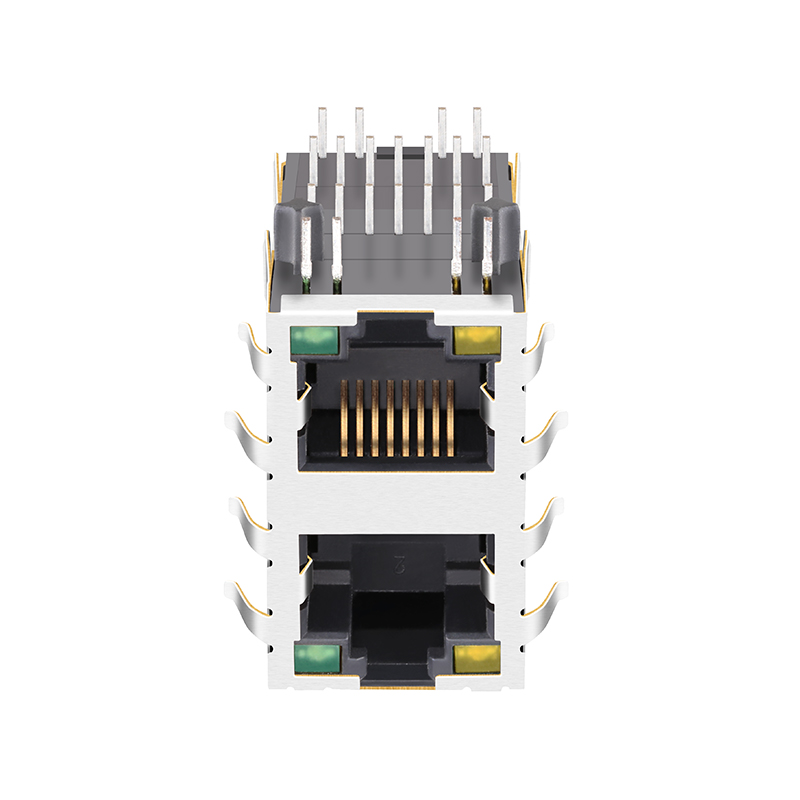

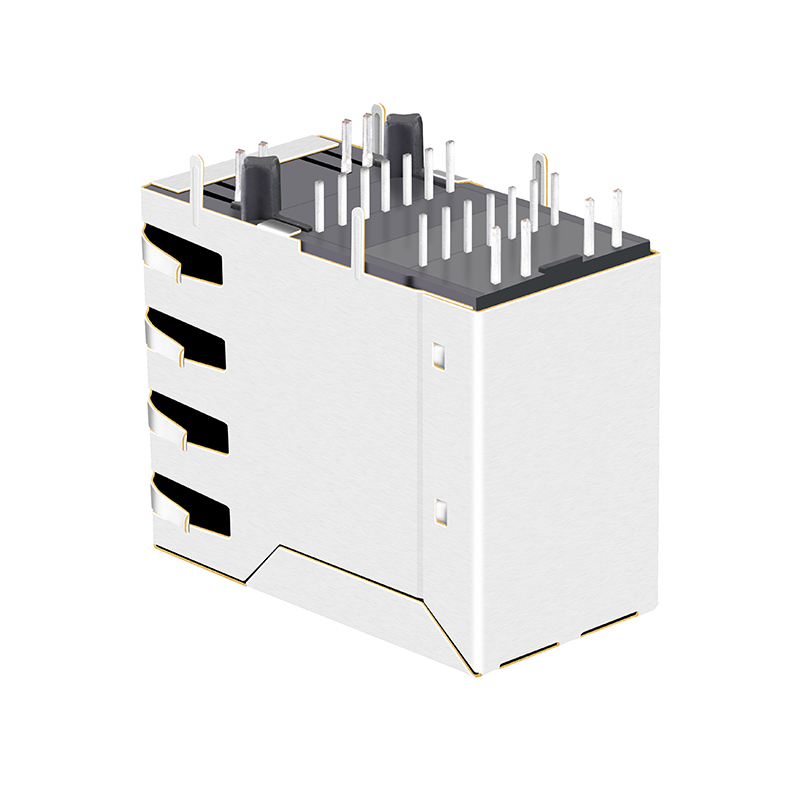

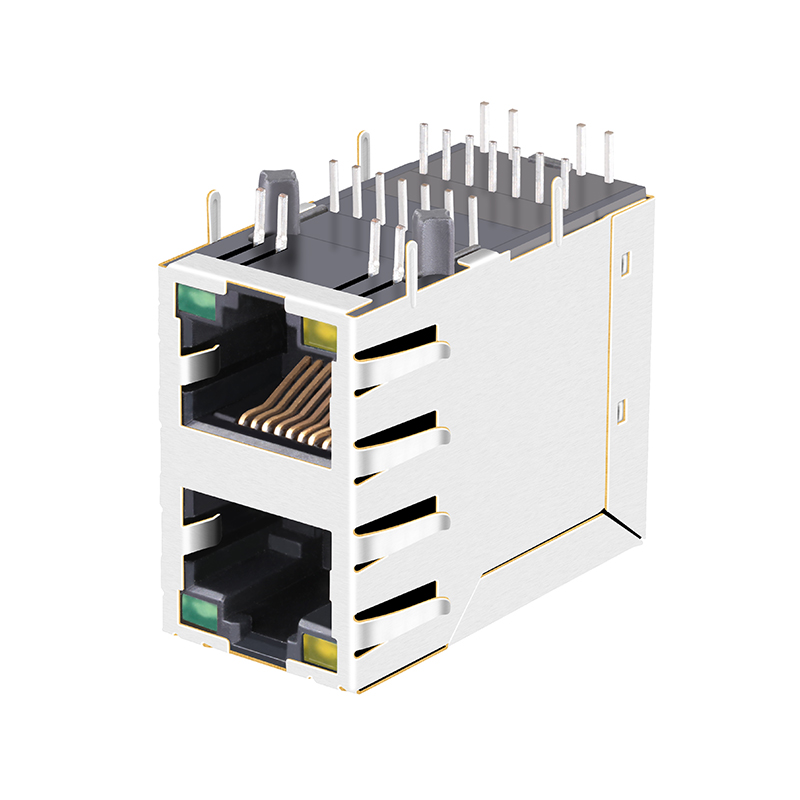

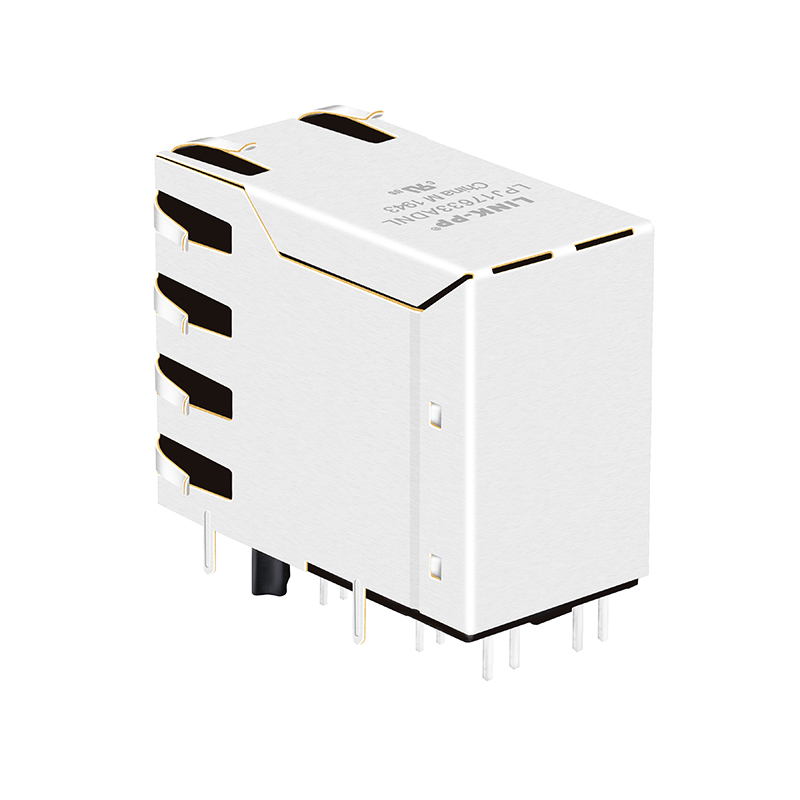

This connector is cross-compatible and corresponds to part numbers 0845-2D1T-H5, 0845-2D1T-S4, and RM3-ZZ-0020.
It is designed for Non-PoE Ethernet applications with speeds of 10/100 Base-T magnetics, featuring 4 cores per port.
This RJ45 modular jack comes with Yellow and Green LED options to display status indications.
The product is designed to operate safely and effectively within temperature ranges of -40°C to +85°C or 0°C to +70°C.
Yes, it is RoHS compliant (RoHS-5 status) containing lead in solder exemption. It also complies with Reach regulations.
It features a side entry (right angle) PCB mount design with THT solder pin style, Up/Down latch, FR4 PCB material, and T Post retaining pins.
