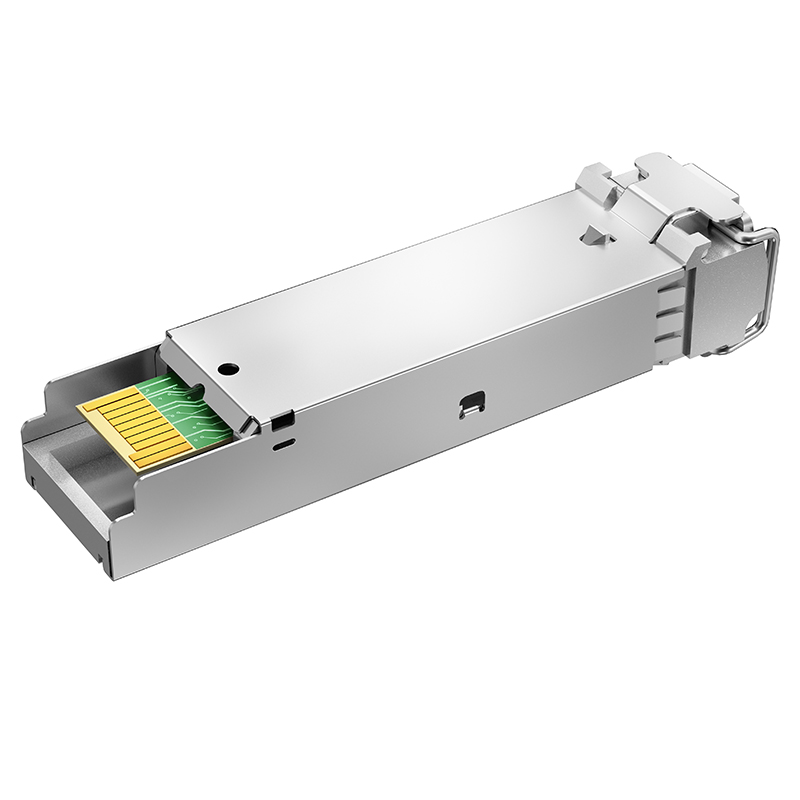

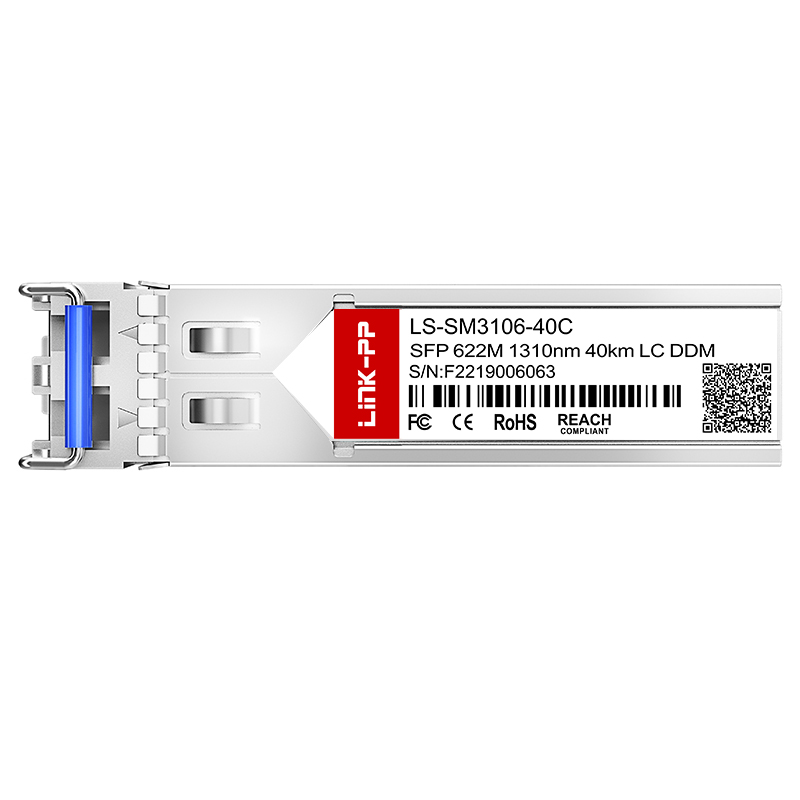

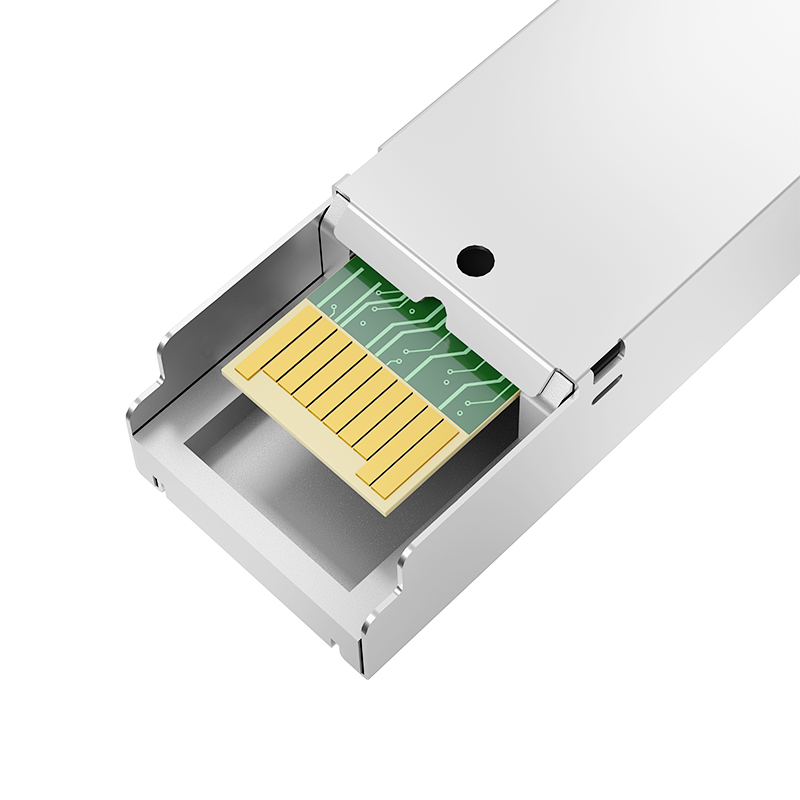

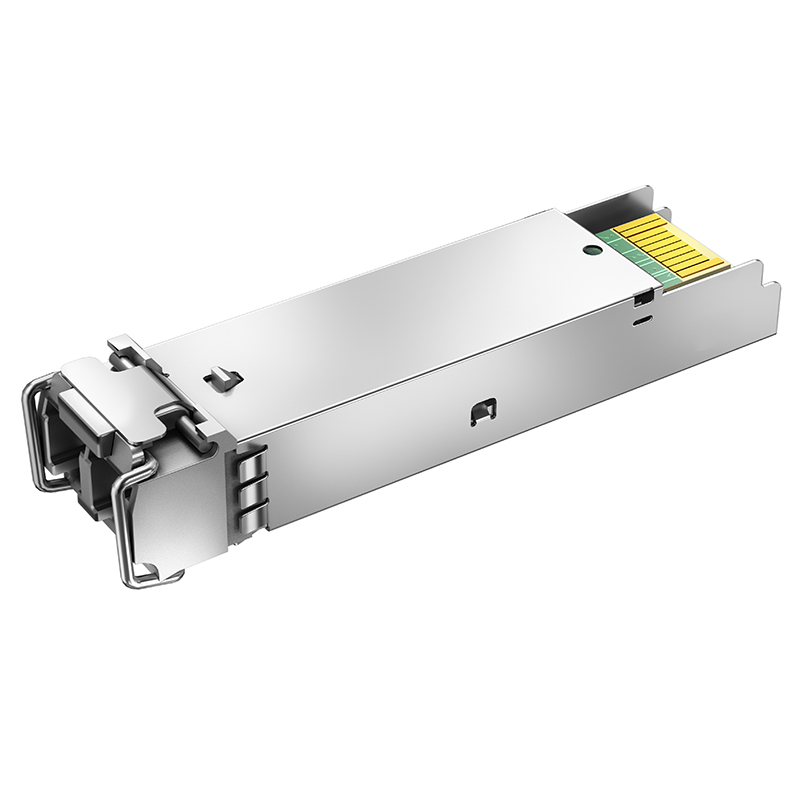

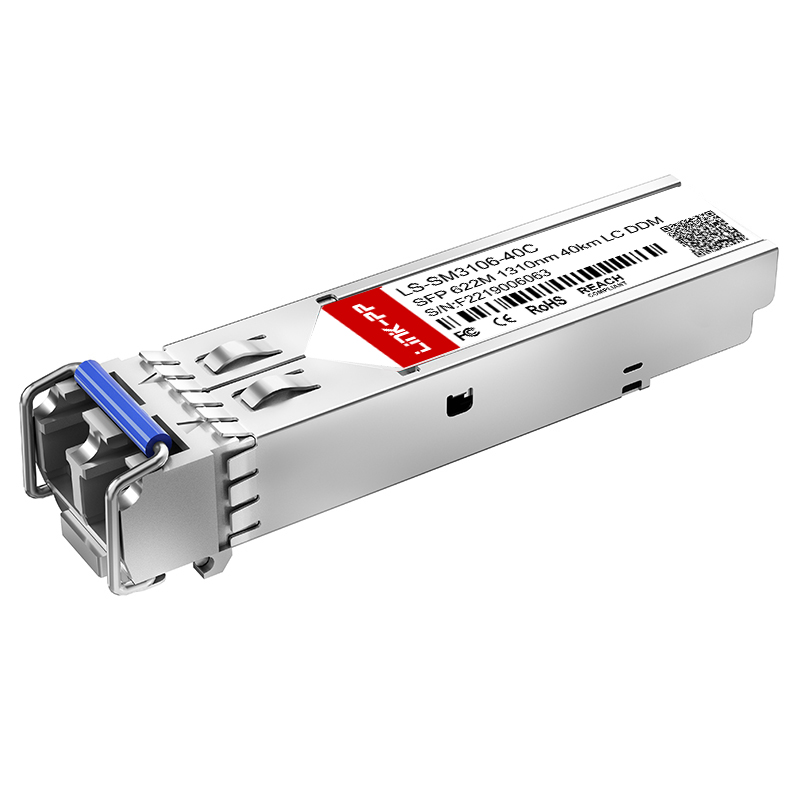

Single Mode SFP 622M 40km SMF 1310nm Duplex LC Optic Transceiver Module

Product Description

Single Mode SFP 622M 40km SMF 1310nm Duplex LC Optic Transceiver Module
Part No. LS-SM3106-40C
Form Factor SFP
Max Data Rate 622Mbps
Wavelength 1310nm
Max Cable Distance 40km
Connector Duplex LC
Media SMF
Transmitter Type DFB
Receiver Type PIN
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
✦ VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Single Mode SFP Transceiver Module
Support Full Range Of 622M SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM8506-S5C 622Mbps 850nm 500m Multi-mode Yes
LS-SM3106-S5C 622Mbps 1310nm 500m Single Mode Yes
LS-SM3106-02C 622Mbps 1310nm 2km Single Mode Yes
LS-MM3106-02C 622Mbps 1310nm 2km Multi-mode Yes
LS-SM3106-20C 622Mbps 1310nm 20km Single Mode Yes
LS-SM3106-40C 622Mbps 1310nm 40km Single Mode Yes
LS-SM5506-80C 622Mbps 1550nm 80km Single Mode Yes
LS-SM5506-A0C 622Mbps 1550nm 100km Single Mode Yes
LS-SM5506-A2C 622Mbps 1550nm 120km Single Mode Yes
Optic Transceiver Product Details Optic Transceiver Range Grid
Application Scenarios
❖ Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
❖ Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
❖ Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Optical Transport Networks Graphic Cloud and Enterprise Graphic
❖ FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
❖ Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Wireless Application Graphic FTTx Optical Fiber Solution Subsystem Cable Monitoring Solution
Related Products SFP Cage
SFP Cage Related Products
Why Choose Us
Why Choose Us Aspect 1 Why Choose Us Aspect 2 Why Choose Us Aspect 3 Why Choose Us Aspect 4
Profile Overview

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE, and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Established in 1997, we currently have about 2,000 employees. With an abundant production capacity of 3,000K per month, we are able to deliver products within a short time.

In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and sell products worldwide.

Production Facility Advanced Testing Lab
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee is covered by the customer.
What is your delivery time?
Items are ready to ship for stock products, and it takes 15-30 days for standard mass production.
What after-service can you offer?
We provide a one-year guarantee period along with technical support online 24 hours a day.
Can you accept OEM/ODM orders?
Yes, please send your requirements to us so that we can have a detailed discussion about your OEM/ODM needs.
What is your core advantage?
We have 19 years of dedicated production experience and have partnered with industry leaders for many years.
