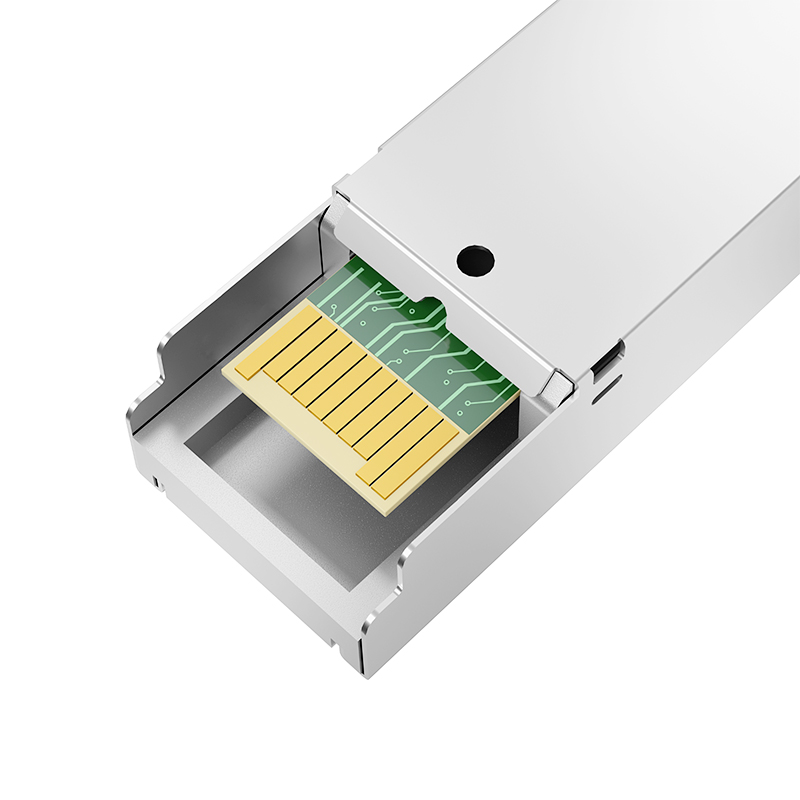

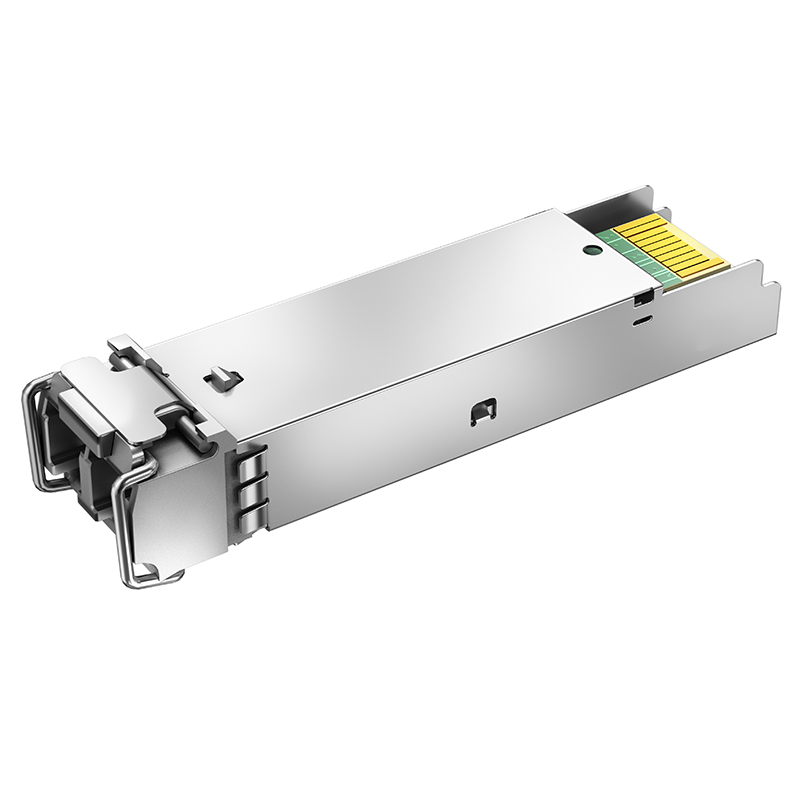

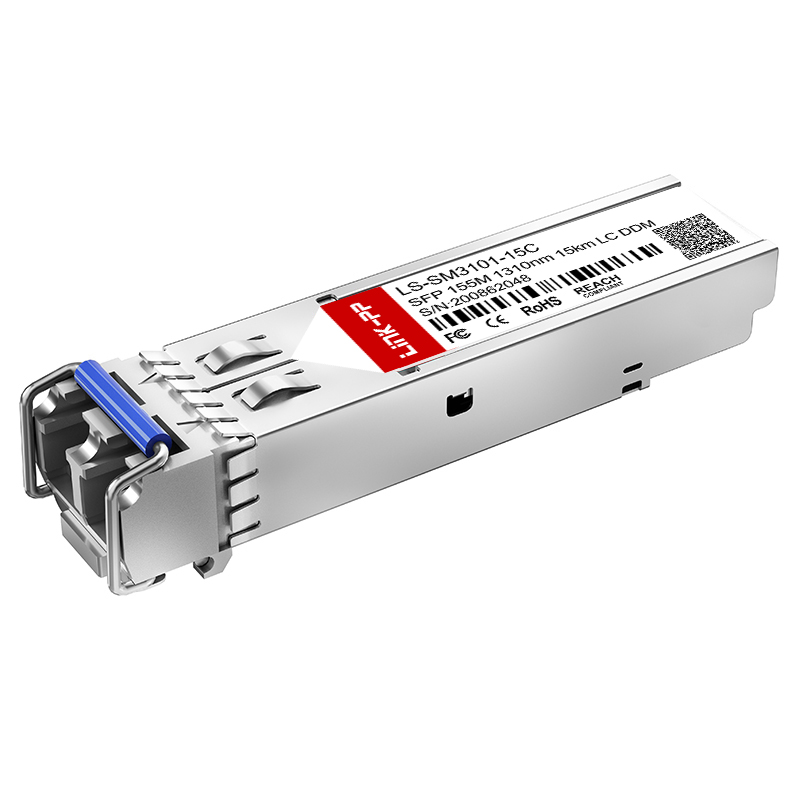

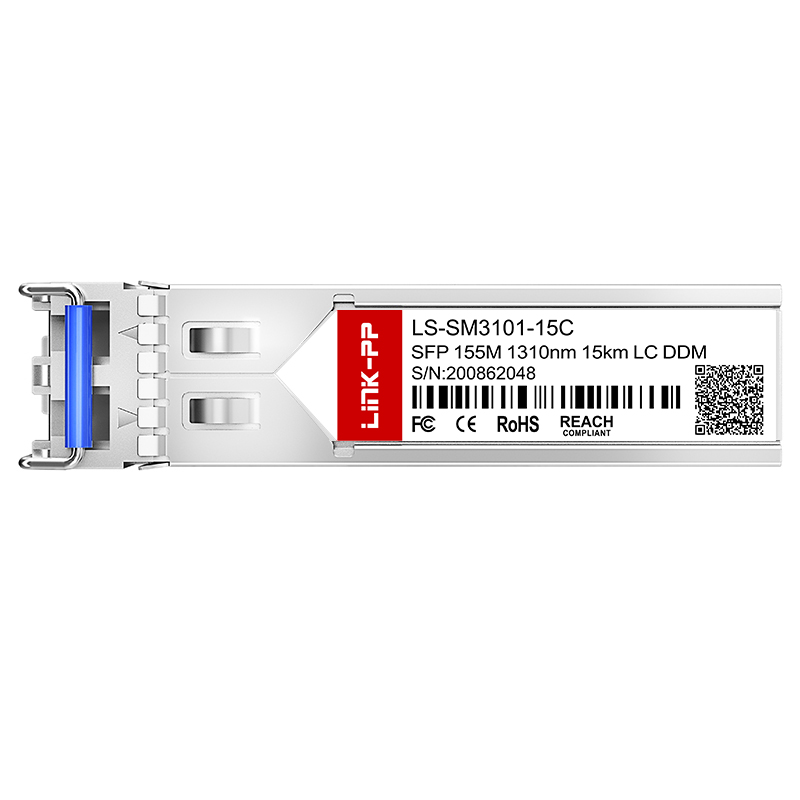

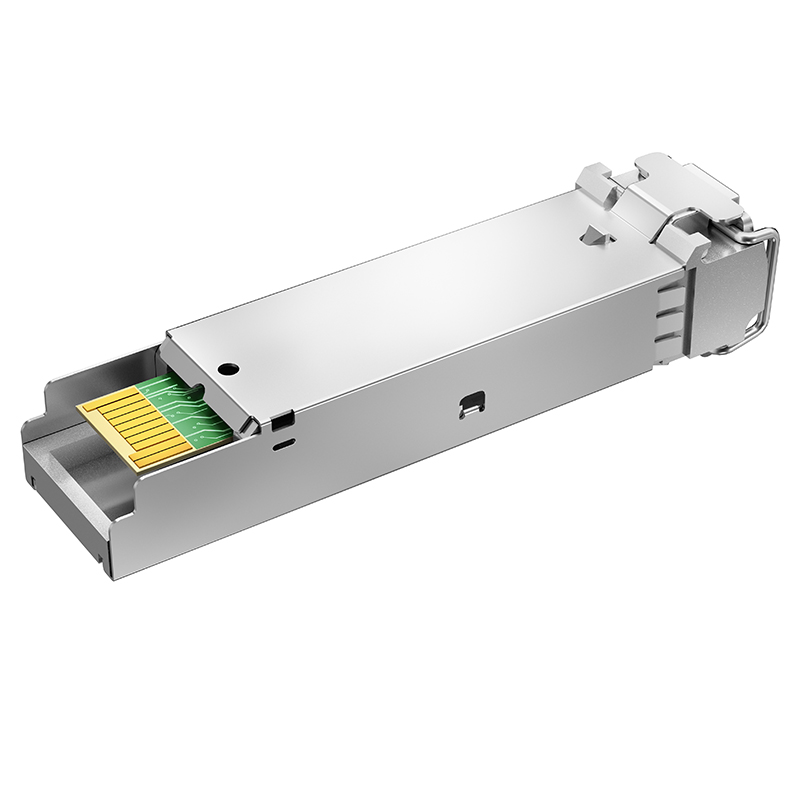

100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module
⚡ Products Description
| Item |
100BASE SFP |
| Part Status |
Active |
| Form Factor |
SFP |
| Max Data Rate |
100Mbps |
| Wavelength |
1310nm |
| Max Cable Distance |
15km |
| Media |
SMF |
| Connector |
Duplex LC |
| Optical Component |
FP 1310nm |
| TX Power |
-15~-8dBm |
| Receiver Sensitivity |
< -32.5dBm |
| DDM/DOM |
Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Protocols |
IEEE802.3ab, GR-468, MSA Compliant |
| Warranty |
5 Years |
| Sample |
Available |
💡 View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transport Networks
We provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical module which the product rate ranging from 10G to 800G has been developed, providing high-quality optical interconnection solutions for data centers.
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul.
FTTx
Aimed at global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
☞ Related Products SFP Cage ☞
⚙️ Why Choose Us
⚙️ Manufacturing Capability
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000 ,ROSH,REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad.
Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver products within a short time.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
❓ Frequently Asked Questions
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee is paid by the buyer.
3. What is your delivery time?
Products are ready to ship for stock items, and 15-30 days for mass production orders.
4. What after-service can you offer?
We provide a one-year guarantee period and offer online technical support 24 hours a day.
5. Can you accept OEM/ODM orders?
Yes, we support customization. Please send your detailed inquiry to us so we can discuss the requirements.
6. What is your core advantage?
We have 19 years of manufacturing and production experience, supplying high-quality products to leading global partners.
