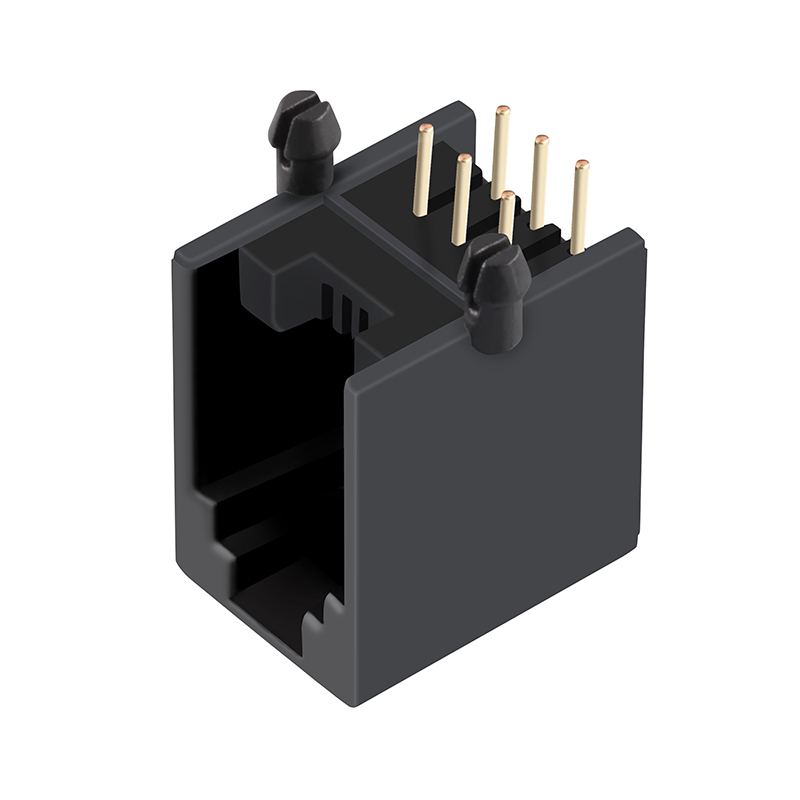

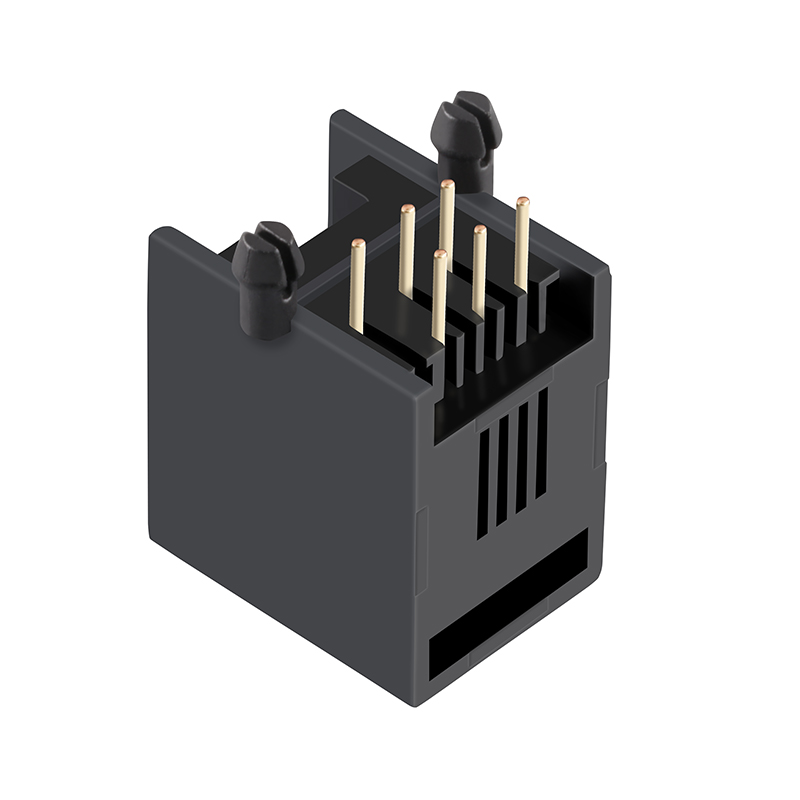

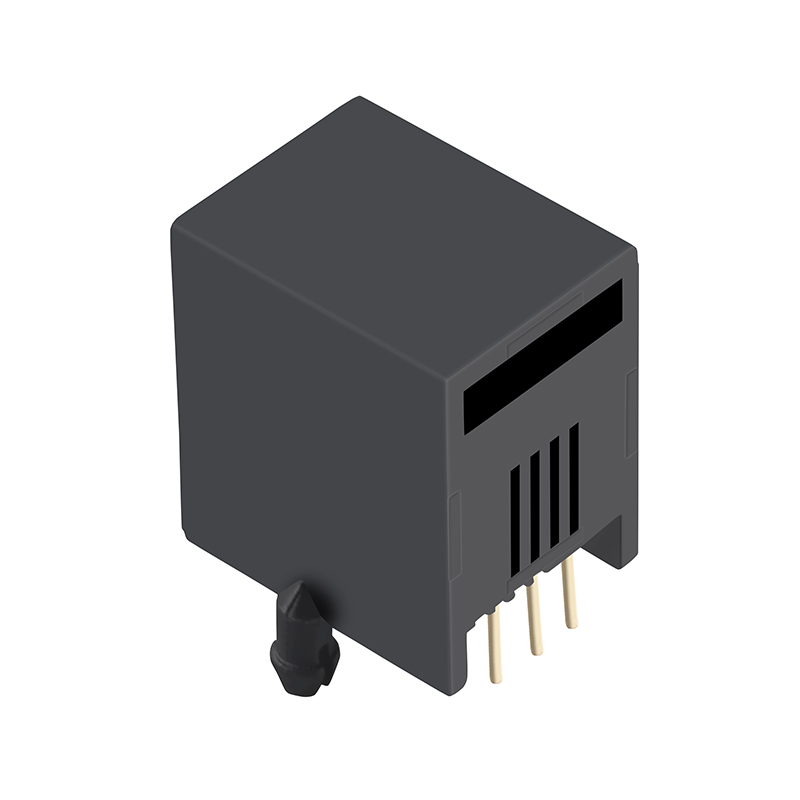

Through Hole Side Entry Dip Tab up 1x1 Port 6P6C RJ11 Connector Jack

Product Description

RJ11 Connector Jack
Through Hole Side Entry Dip Tab Up 1x1 Port 6P6C RJ11 Connector Jack
Products Description
Item RJ11 Jack
Part Number LPJE8014NNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 6p6c (RJ11, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Latch Up
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

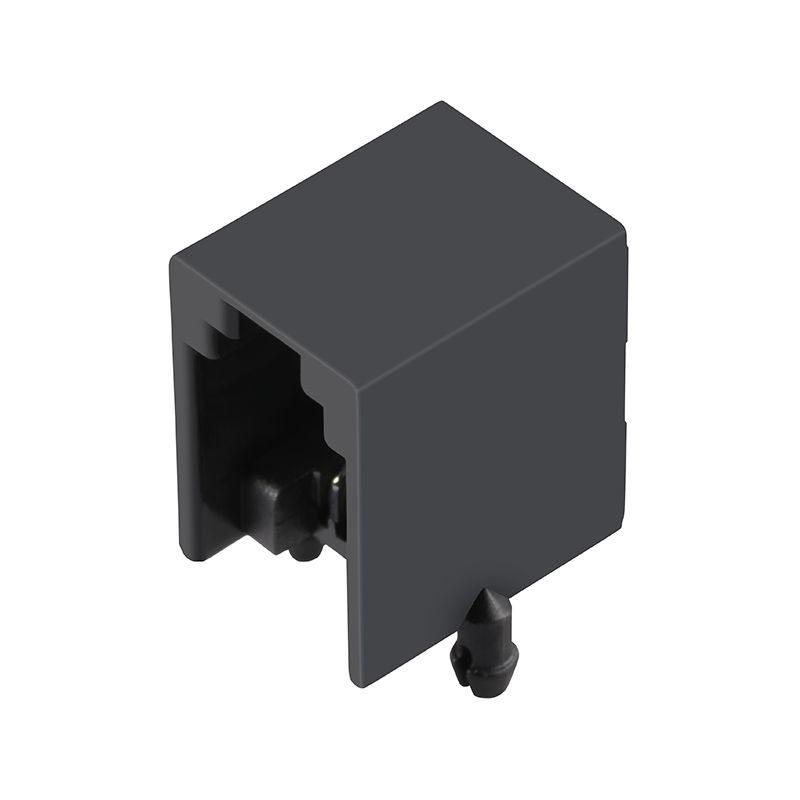

RJ11 Jack Detail

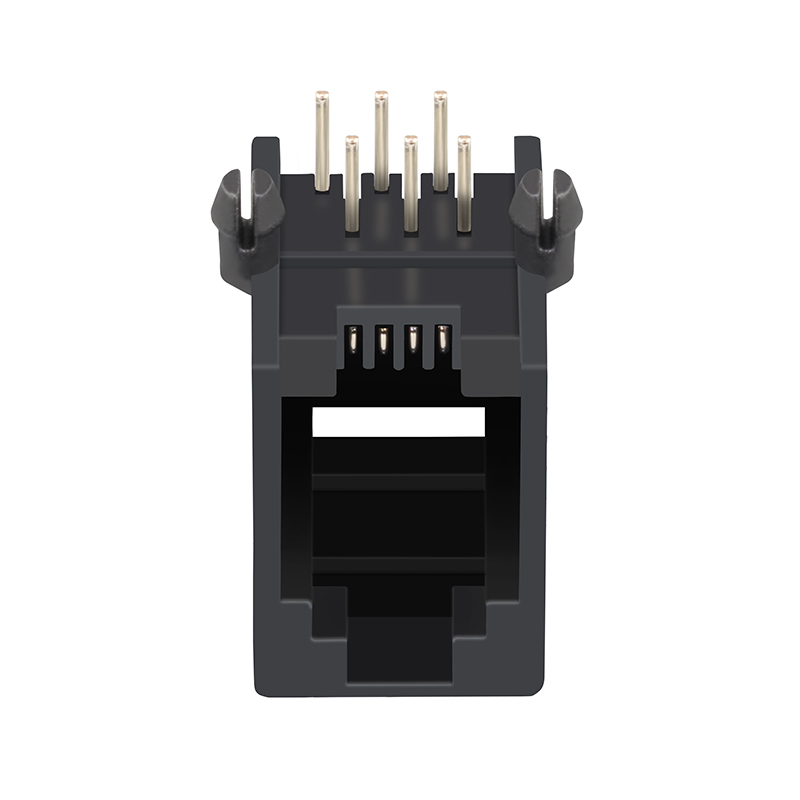

RJ11 Jack Side View
Product Diagram
Related Products & Dimensions
Connector Drawing 1
Connector Drawing 2
Connector Drawing 3
Connector Drawing 4
Product Categories Overview
Testing Equipment
Quality Inspection
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we operate as a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading provider of Ethernet RJ45 connectors and LAN transformers worldwide.
Factory Office
Production Line
Warehouse Storage
Enterprise Honors
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs will need to be covered.
What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
What after-sales service do you offer?
We provide a one-year warranty period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please contact us with your details and specifications so we can initiate a detailed discussion regarding your requirements.
What are your primary advantages?
We possess over 19 years of dedicated production experience and have maintained established partnerships with major global industry leaders for many years.
