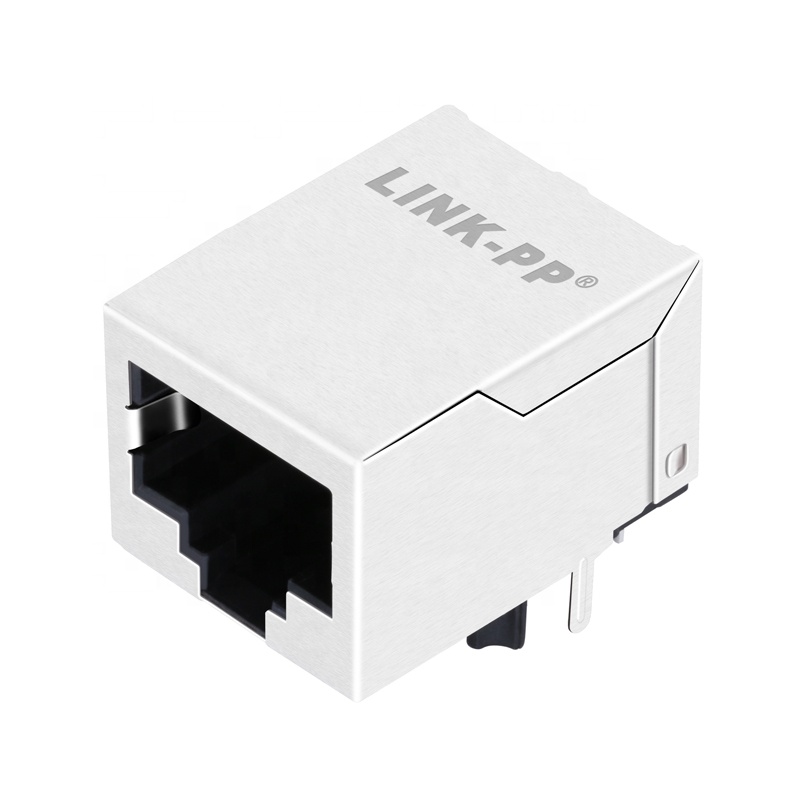

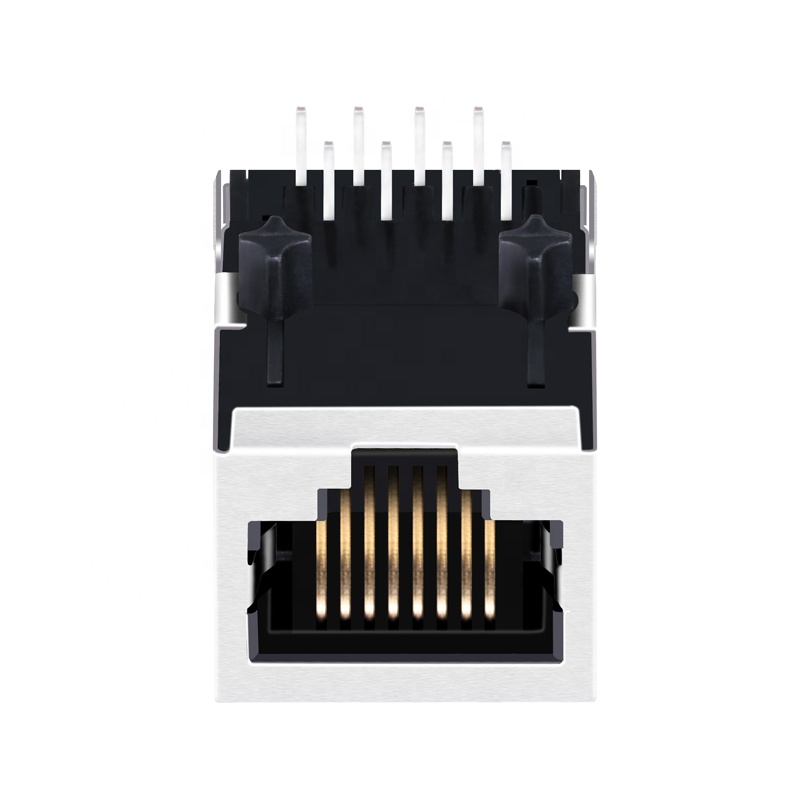

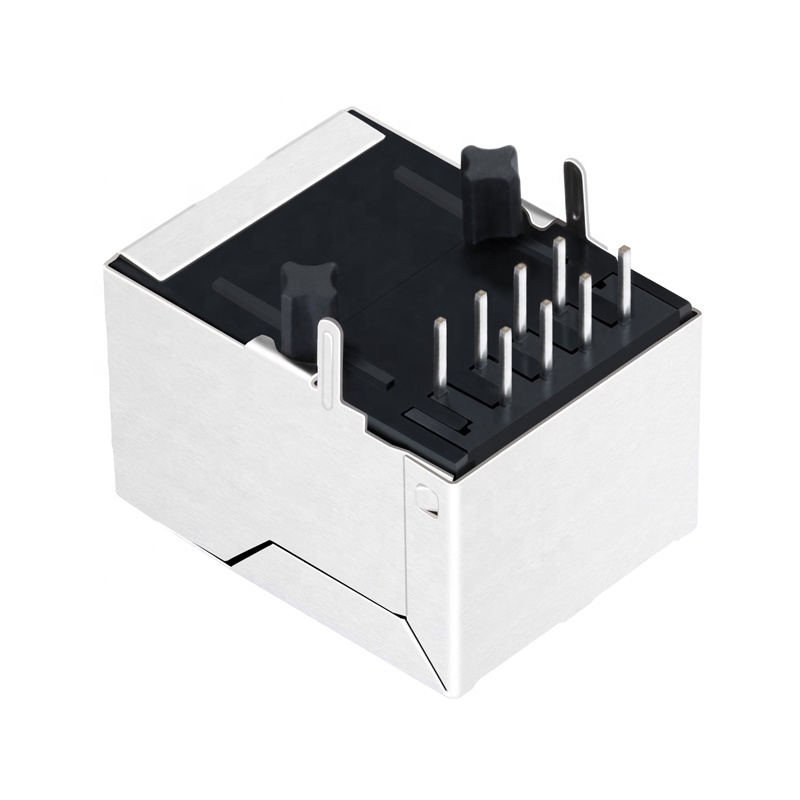

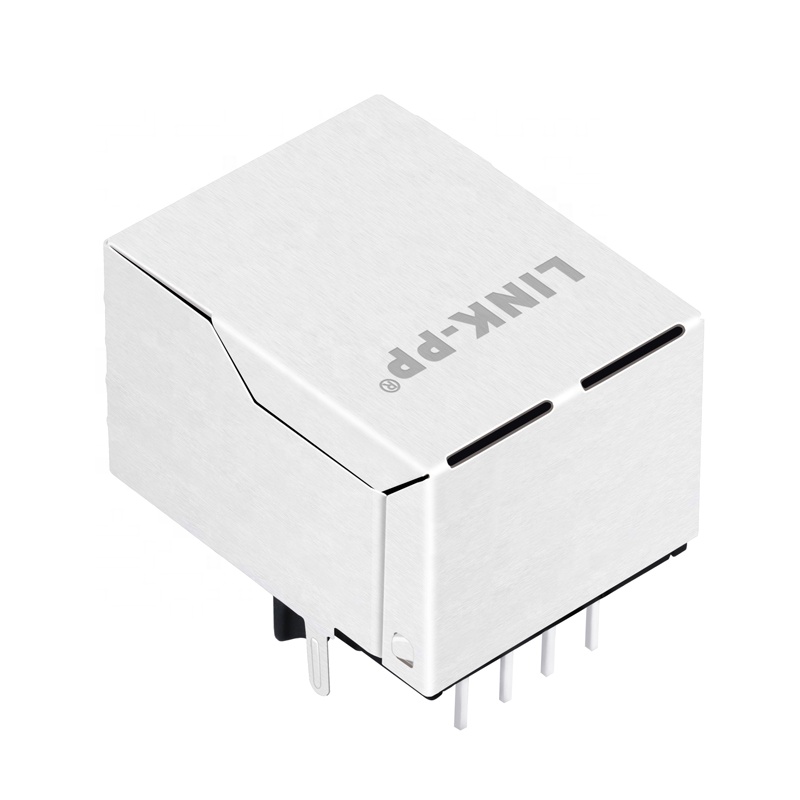

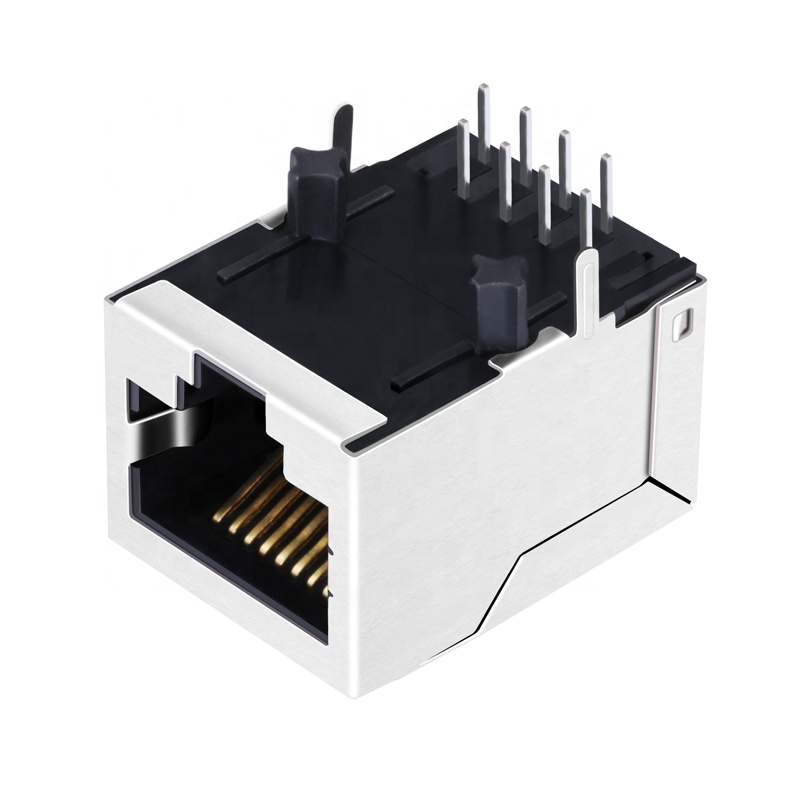

| Item | RJ45 Female Connector |
| Bothhand Part Number | 1470648-1 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Down |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Without |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector, LAN transformer, RJ11 connector and SFP modules, etc.
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
Ready to ship for stock and 15-30 days for mass production.
One year guarantee period and we can offer technical support online 24 hours.
Yes, please send inquiry to us so that we can have a detailed discussion.
19 years of production experience and we are a partner of leading global technology brands for many years.
