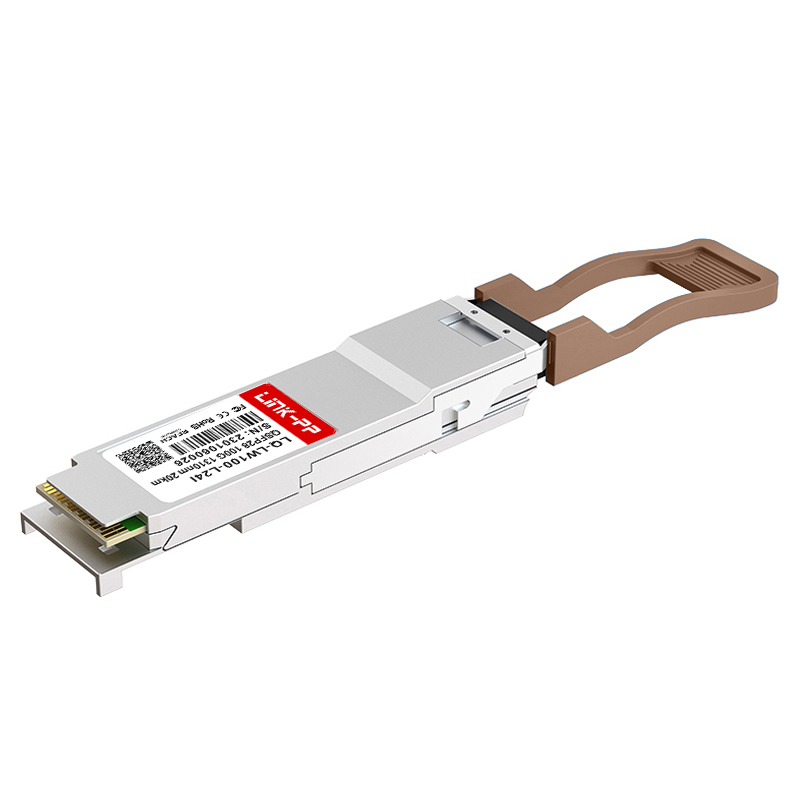

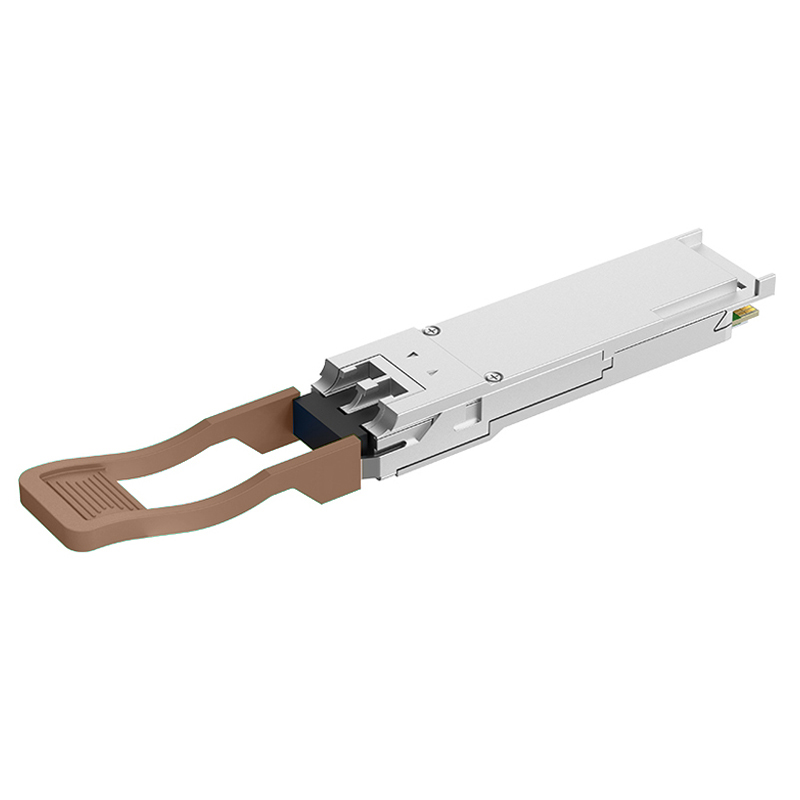

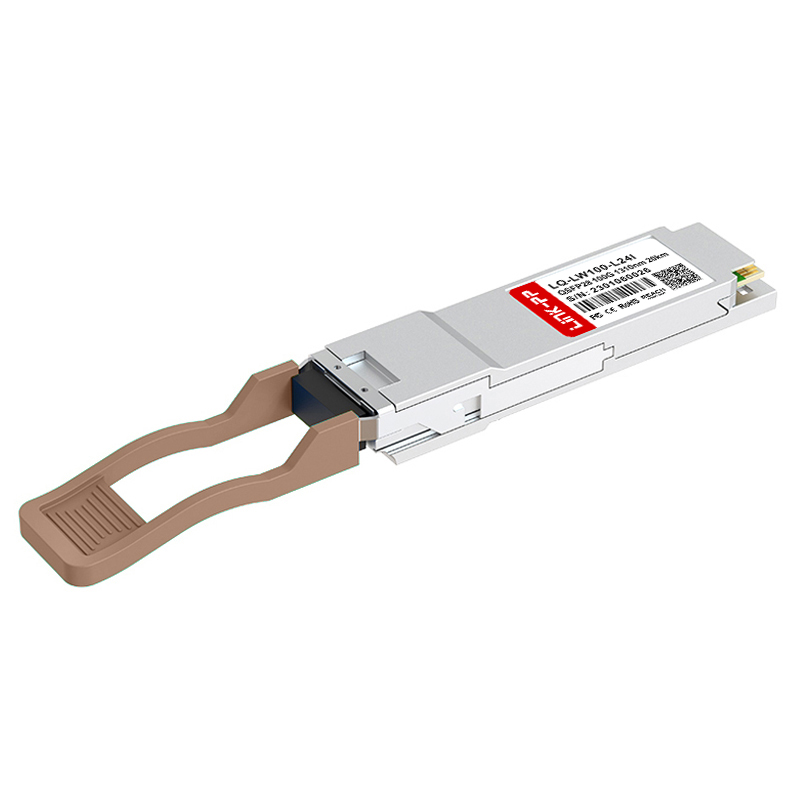

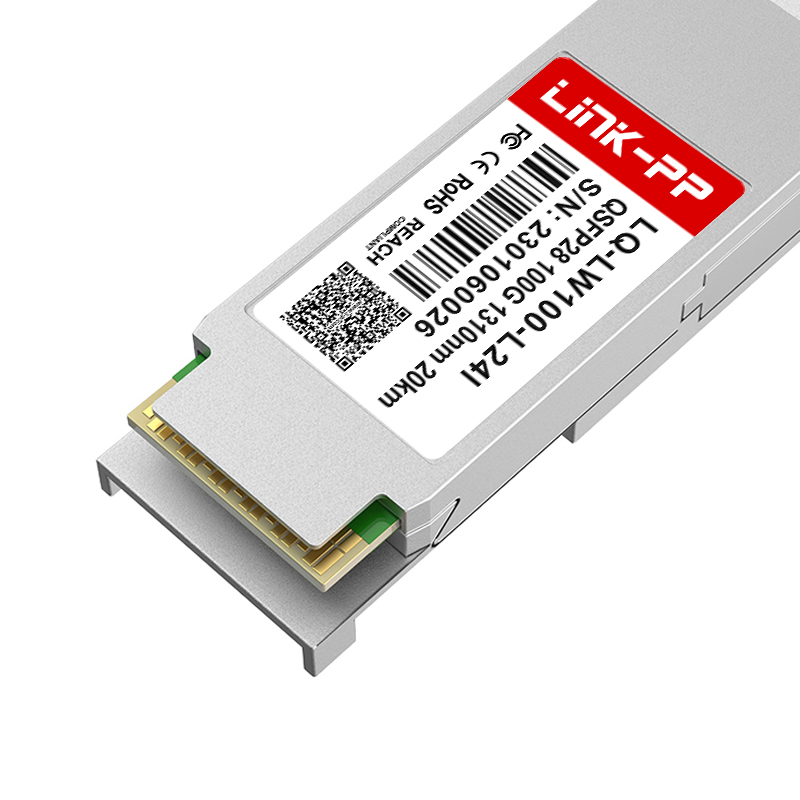

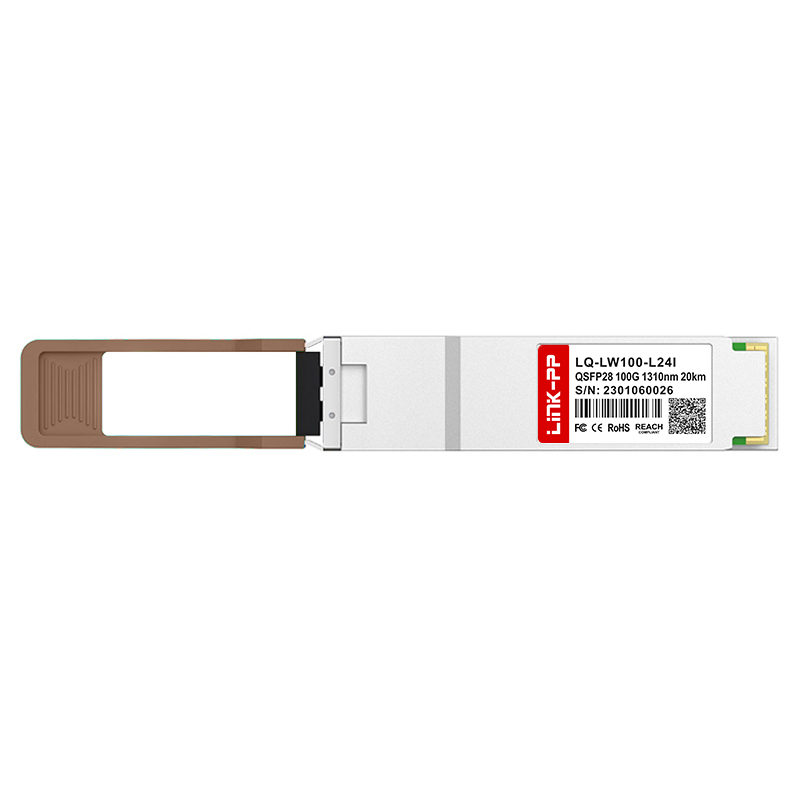

Industrial Single Mode QSFP28 100G 1310nm 20km DDM Duplex LC SMF Optical Transceiver Module
| Part No. | LQ-LW100-L24I |
| Form Factor | QSFP28 |
| Max Data Rate | 100Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 20km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | EML |
| Receiver Type | PIN |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | QSFP28 MSA, IEEE 802.3-2018, 4WDM-20, SFF-8661, SFF-8636 |
| Temperature Range | -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
A full series of optical modules is available for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM device solutions are available with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, high-speed optical modules with product rates ranging from 10G to 800G have been developed, providing high-quality optical interconnection solutions for data centers.
High reliability and performance products are provided with mature and efficient lasers and mainstream chip solutions to customers worldwide. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which meet the needs of various scenarios in 4G/5G systems.
For global communication network constructers, FTTx optical fiber access total solutions are provided, covering all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, the optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
As a specialized manufacturer of magnetic telecom and network components, the operations are certified by ISO9001:2000, RoHS, REACH, CE, and UL, utilizing advanced manufacturing and testing equipment. With an abundant production capacity of 3000K per month, prompt product delivery is consistently achieved.
A complete series of optical modules is supplied for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. High-speed optical interconnect solutions are also designed, manufactured, and distributed globally for cloud computing and ultra-broadband networks.
