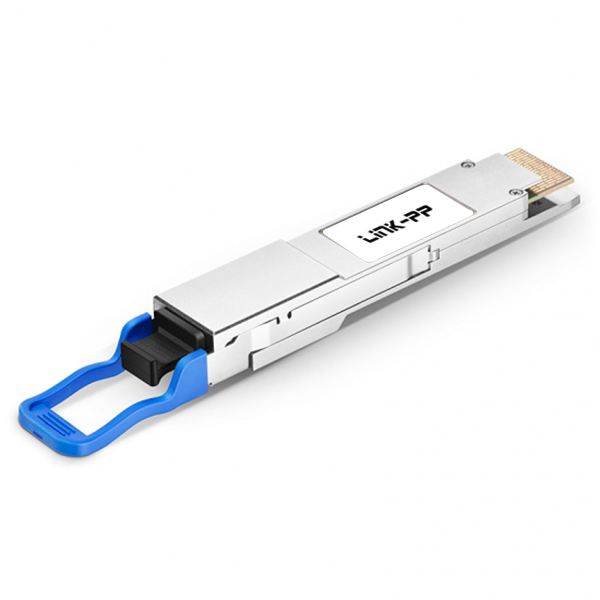

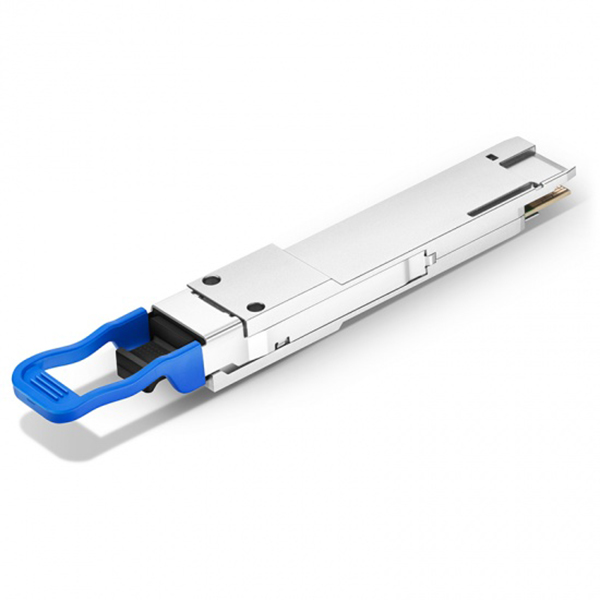

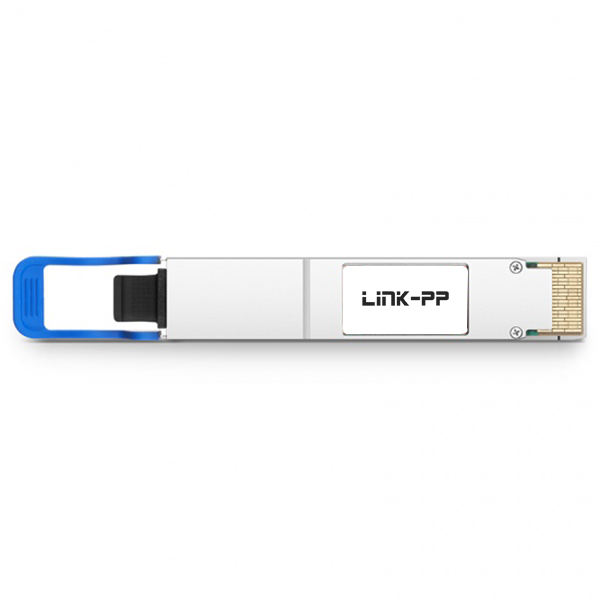

400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km

Product Description

400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km
Products Description
Item Fiber Optical Modules
Part Status Active
Form Factor QSFP-DD
Max Data Rate 425Gbps
Max Cable Distance 10km
Wavelength 1310nm
Connector Duplex LC
Media SMF
Optical Component LWDM EML/PIN
TX Power -2.8~5.3dBm
RX Power -9.1~5.3dBm
Modulation 8x 50G PAM4
Powerbudget 6.3dB
Power Consumption ≤10W
Extinction Ratio 3.5dB
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Warranty 5 Years
Sample Available
Protocols IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1
VIEW OUR SOLUTION
High-Speed Optoelectronics Technology
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Solution Image 1
Optical Solution Image 2
Optical Solution Image 3
Optical Solution Image 4
Optical Product Line Diagram
Optical Solution Image 5
Manufacturing Detail 1 Manufacturing Detail 2
Related Products SFP Cage
SFP Cage Related Products
Why Choose Us
Advantage Panel 1 Advantage Panel 2
Advantage Panel 3 Advantage Panel 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL. Our facilities feature advanced manufacturing systems and test equipment imported to maintain rigorous quality.

Established in 1997, our production infrastructure features a substantial monthly capacity of up to 3000K units, enabling rapid delivery cycles.

Additionally, we support a comprehensive line of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks, along with high-speed interconnect products for cloud and ultra-broadband systems. Using advanced optoelectronics technology, we develop, build, and support our products globally.
Production Facility Showroom Testing Laboratory
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and associated optical transceivers.
Can I request a sample before proceeding to mass production?
Yes, sample units can be supplied for quality verification purposes. Shipping charges are the responsibility of the requester.
What is your estimated delivery timeline?
In-stock items are ready for prompt shipment, while standard mass production timelines range from 15 to 30 days.
What after-sales service and support do you provide?
We offer a comprehensive one-year warranty along with 24-hour online technical support to assist with deployment and diagnostics.
Do you support OEM/ODM contract manufacturing?
Yes, OEM and ODM customization services are available. Please share your project parameters for detailed evaluation.
What are your main manufacturing advantages?
With 19 years of dedicated manufacturing experience, we have consistently served as a trusted partner to global technology leaders and EMS providers.
