Home > Low Profile RJ45 Connector > LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector

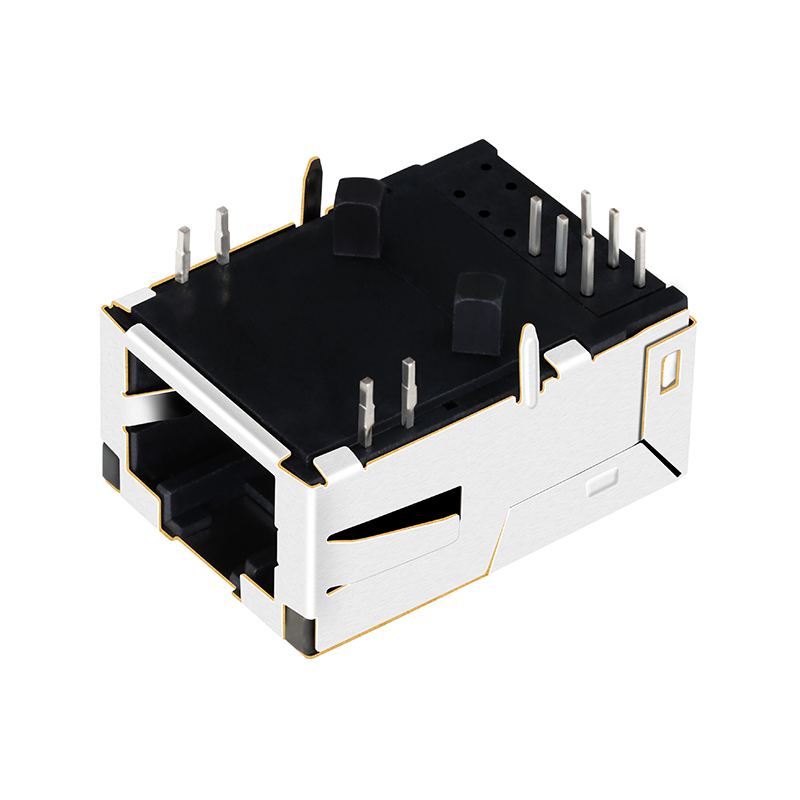

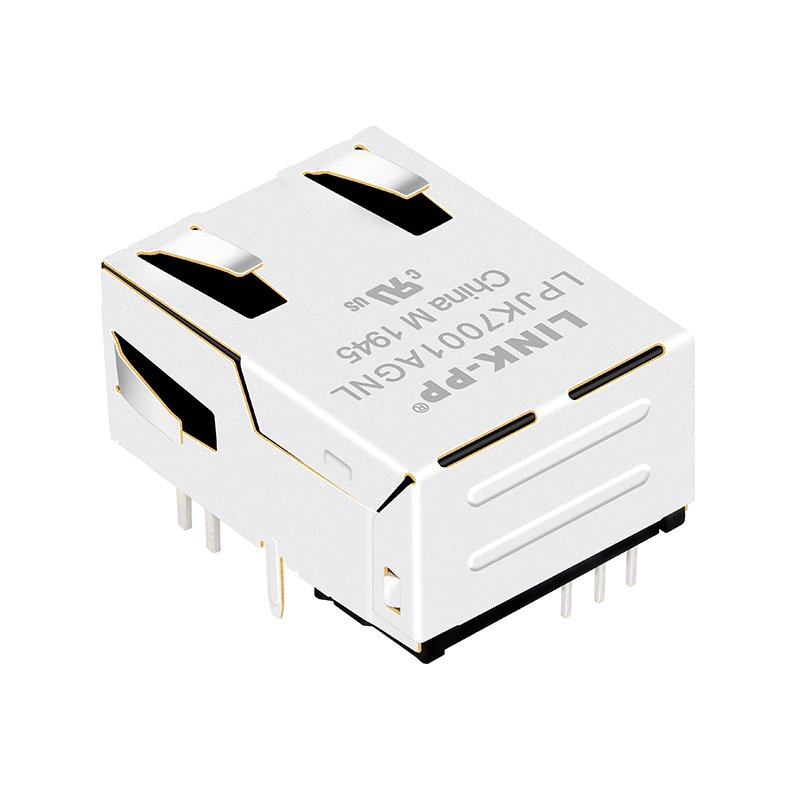

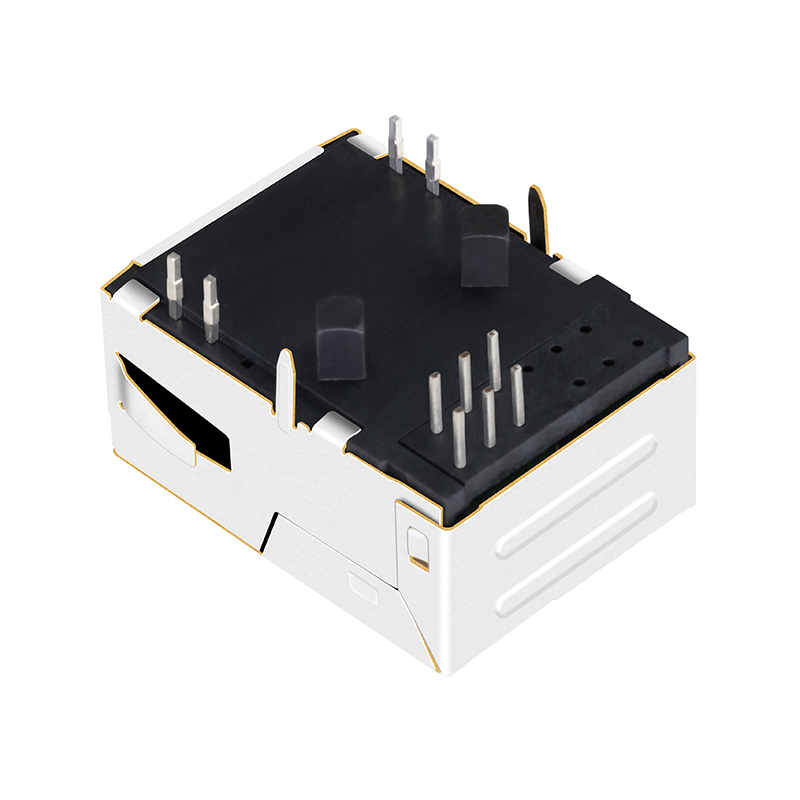

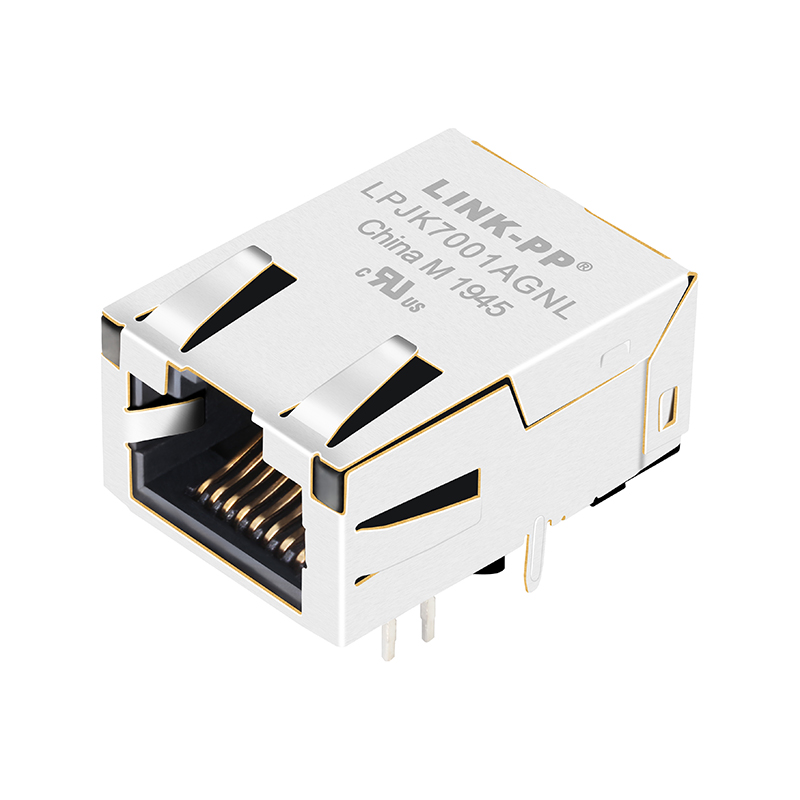

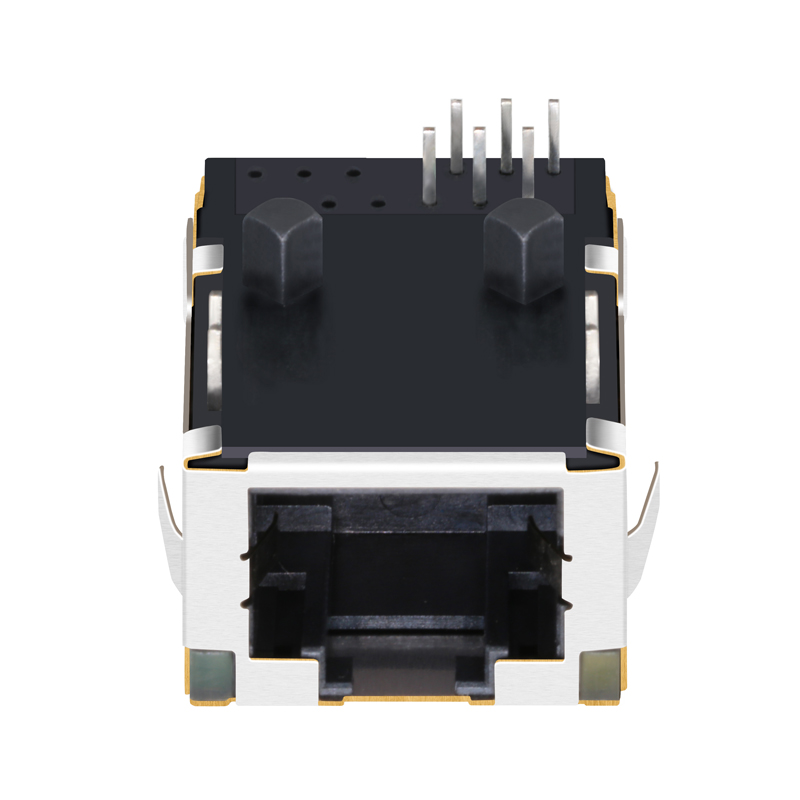

LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
1 / 5
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector

LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector

Send Inquiry

Product Description

RJ45 Female Connector, Lan Transformer, SFP Cage, SFP Modules
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
Specification
item RJ45 Connector
Model Number LPJK7001AGNL
Part Status Active
Connector Type Low Profile RJ45
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Number of Cores per Jack 4
Shielding Shielded
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Low Profile RJ45 Connector Detail View 1
Low Profile RJ45 Connector Detail View 2

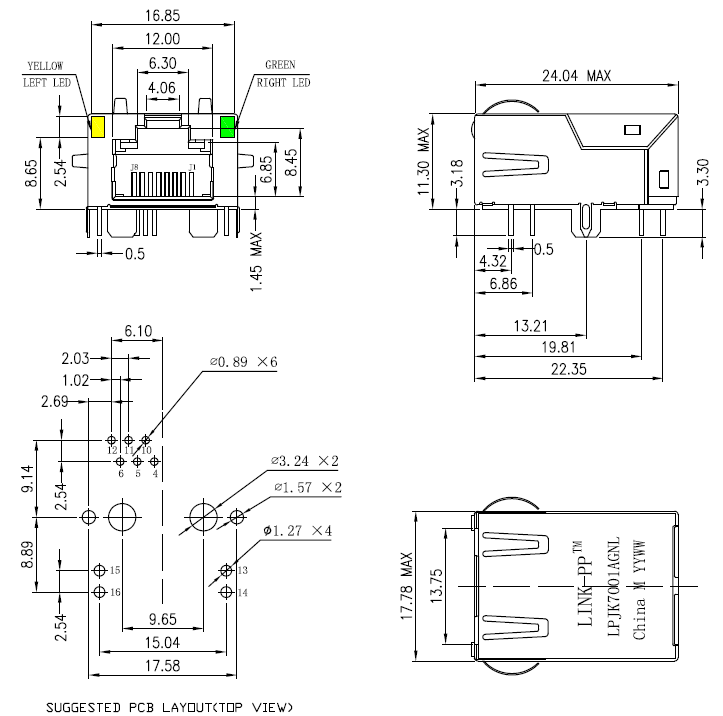

Low Profile RJ45 Connector Dimension Diagram
Ethernet Connector Testing
☞ Explore More Products Below ☞
Product Category Matrix
Production Facility Certifications
Manufacturing Process Quality Control
Testing Equipment
Storage and Logistics
Customer Service Support
Global Shipping Partners
Global Business Cooperation
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer supplier.
Factory Overview
Assembly Line
Warehouse Inventory
FAQ
Q Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with shipping fees covered by the customer.
Q What is your delivery time?
Products in stock are ready to ship immediately, while mass production orders typically take 15 to 30 days.
Q What after-service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, OEM/ODM orders are accepted. Please send us your requirements so we can discuss the details.
Q What is your advantage?
We offer 19 years of dedicated production experience and have been a trusted partner to global industry leaders for many years.
