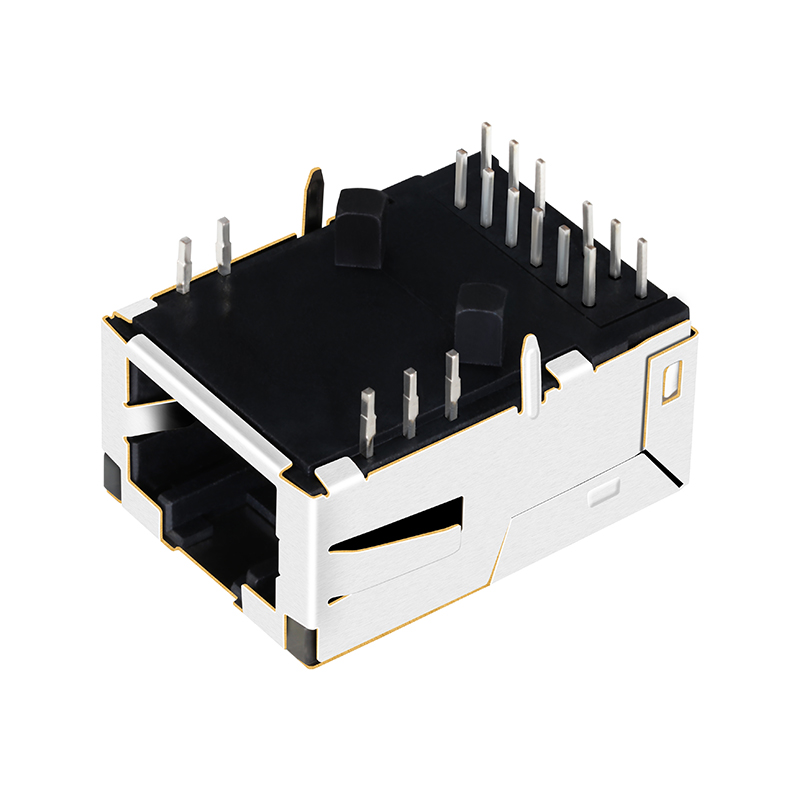

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

Product Description

Ethernet Connector Components Overview
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
📋 Products Description
Item RJ45 Female Connector
Part Number LPJK7003A98NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port, Low Profile
Speed 10/100/1000 Base-T
Latch Down
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Orange&Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

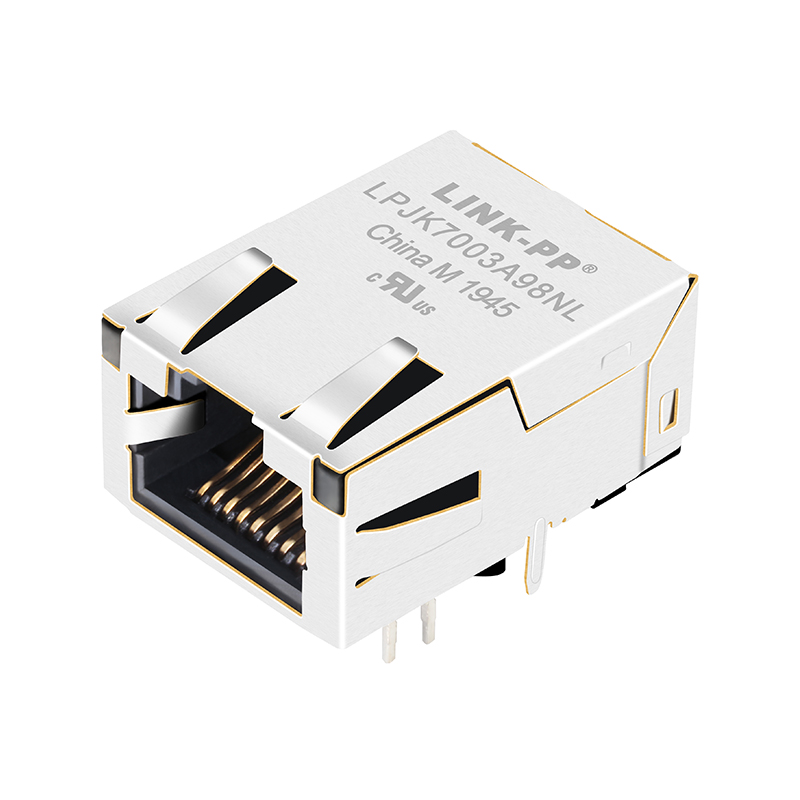

Integrated Ethernet Connector Details

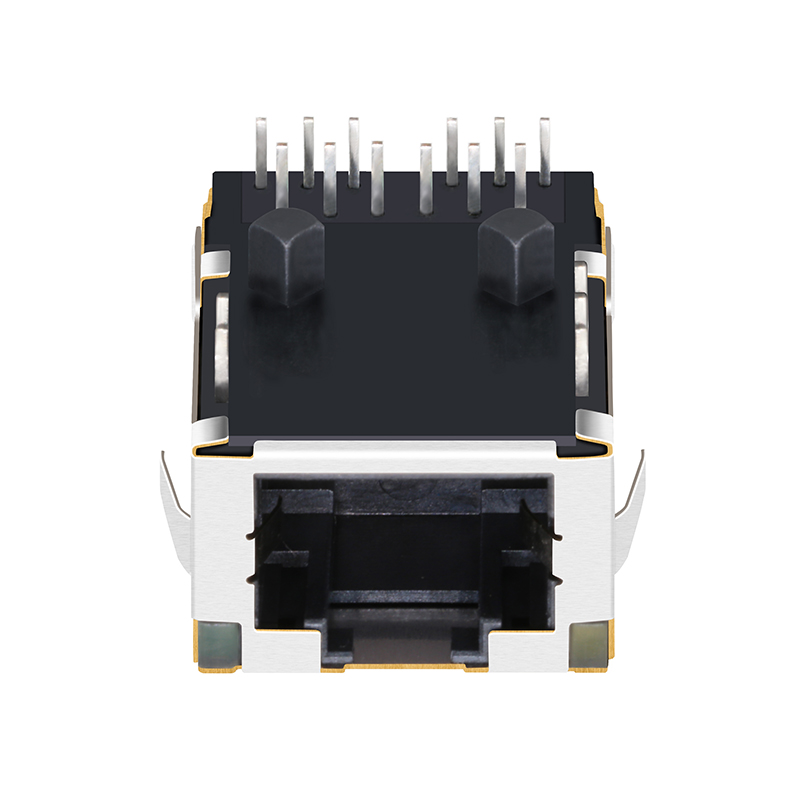

Low Profile RJ45 Jack View
Mechanical Dimensions Diagram 1
Mechanical Dimensions Diagram 2
Schematic Diagram 1
Schematic Diagram 2
⚡ Explore More Product Solutions Below
Product Categories Grid
Factory Facility Tour 1
Factory Facility Tour 2
Manufacturing Line Details
Automatic Production Process 1
Automatic Production Process 2
Testing Equipment Setup
🏢 Company Profile
Established in 1997, the enterprise is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we function as a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading global provider of Ethernet RJ45 connectors and LAN transformers.
Corporate Headquarters Interior
Production Workshop
❓ FAQ
⚡ 1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
⚡ 2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee should be covered on your end.
⚡ 3. What is your delivery time?
We are ready to ship for stock items, and mass production orders take about 15 to 30 days.
⚡ 4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
⚡ 5. Can you accept OEM/ODM orders?
Yes, please contact us with your specifications so that we can have a detailed discussion about your requirements.
⚡ 6. What is your advantage?
We have 19 years of professional production experience and have partnered with major global enterprises for many years.
