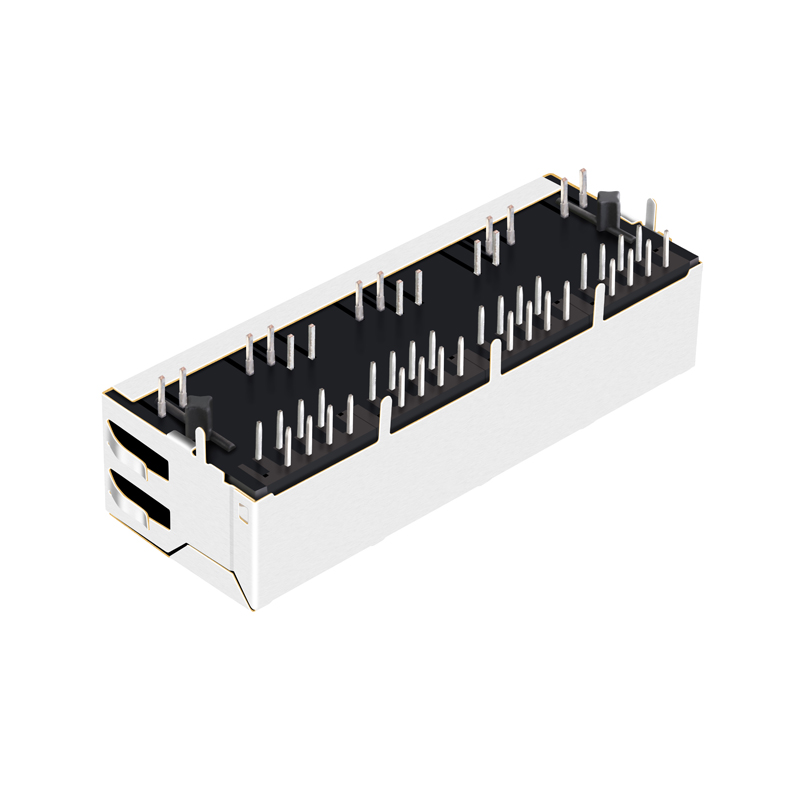

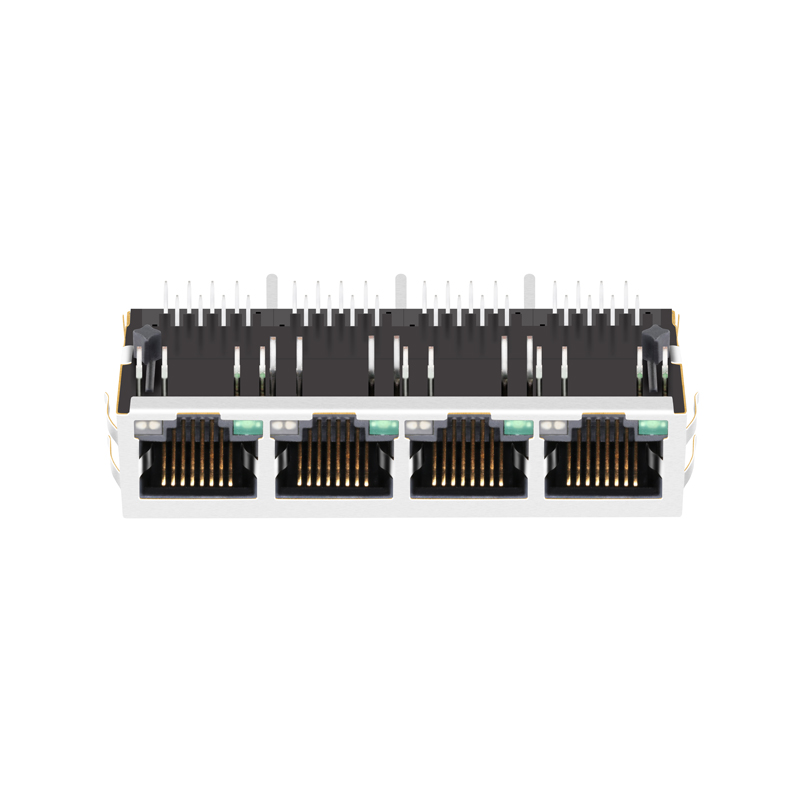

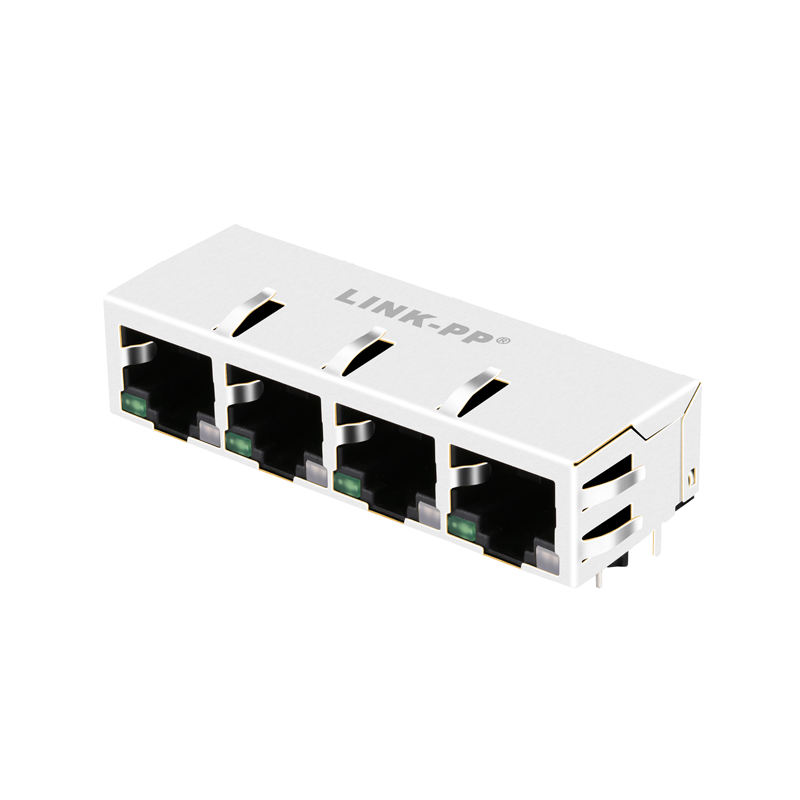

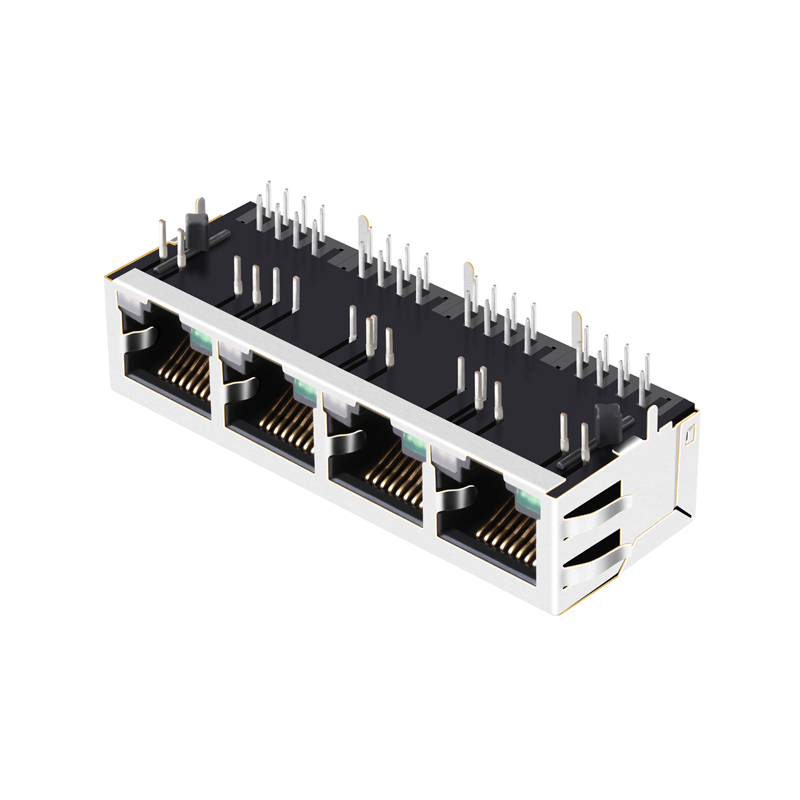

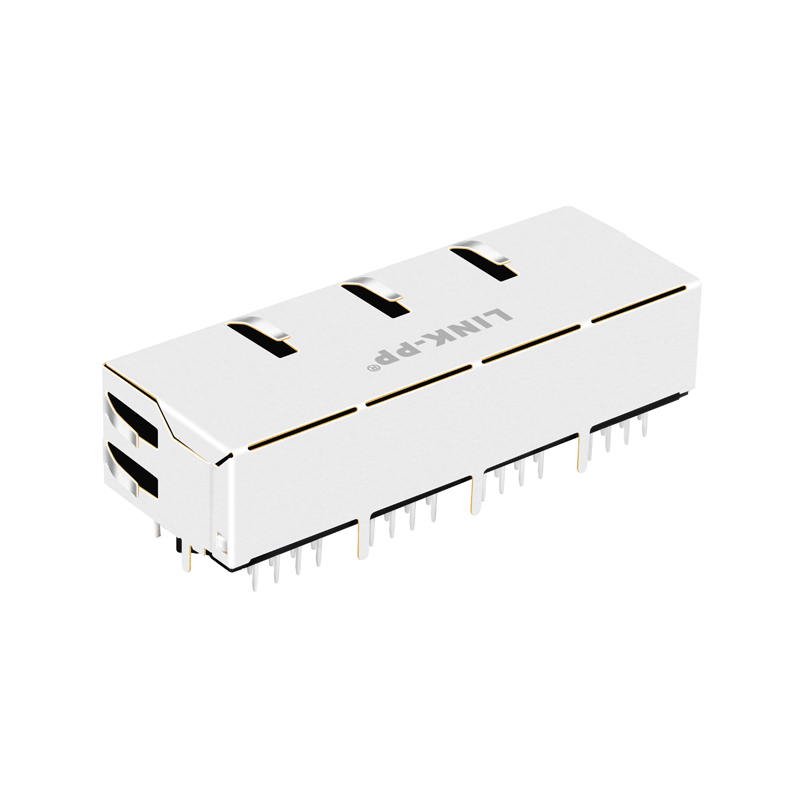

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
| Part Number |
5-6610068-7 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIDES41 |
| LED Option |
GREEN/GREEN&ORANGE |
| Latch |
UP |
| Number of Ports |
1X4 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
- Quality Guarantee: 6 Years
- More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL UPS FEDEX Or TNT
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Frequently Asked Questions
Q1: What is the main configuration of the 5-6610068-7 connector?
A: The 5-6610068-7 is a Gigabit Ethernet RJ45 female connector featuring a 1X4 modular jack configuration with a Tab Up design.
Q2: What ethernet speed does this RJ45 connector support?
A: This connector is designed for Gigabit Ethernet operations, supporting a transmission speed of 1000 BASE-T.
Q3: What are the LED and plating options available for this model?
A: It features Green/Green & Orange LED options. The contact mating area plating options include Gold 6u", 15u", 30u", or 50u".
Q4: What is the operating temperature range for this modular jack?
A: It is qualified to operate in temperatures ranging from 0 to 70°C, and industrial versions can support -40 to 85°C.
Q5: Does this connector comply with environmental standards like RoHS?
A: Yes, it is RoHS compliant under the RoHS-5 designation with lead in solder exemption, ensuring compatibility with environmental safety policies.
Q6: What mounting angle and pin type are specified?
A: This model uses a Side Entry PCB mounting angle with THT solder pin style for secure PCB retention.
