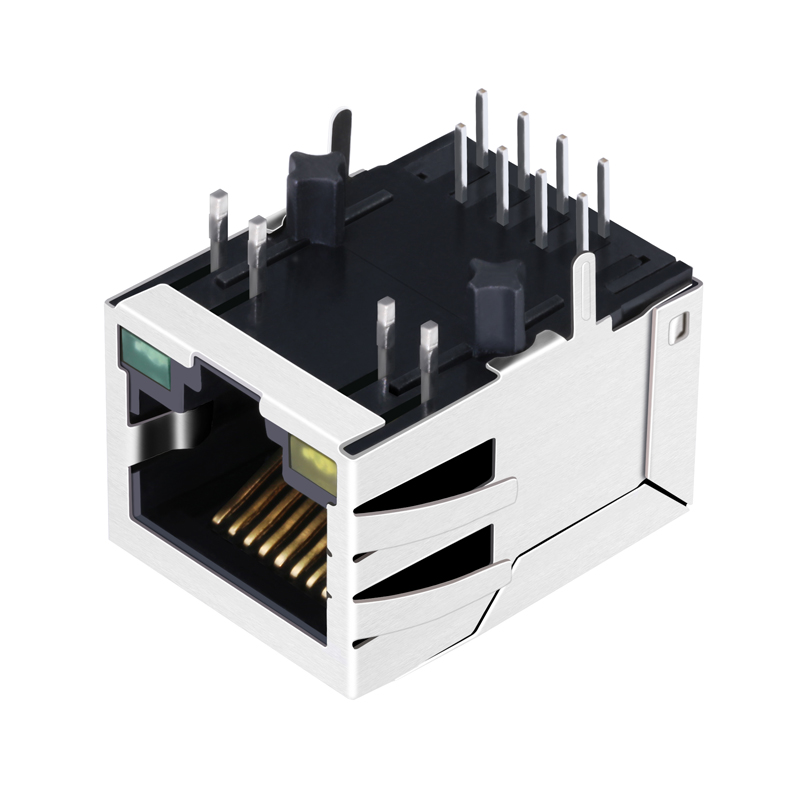

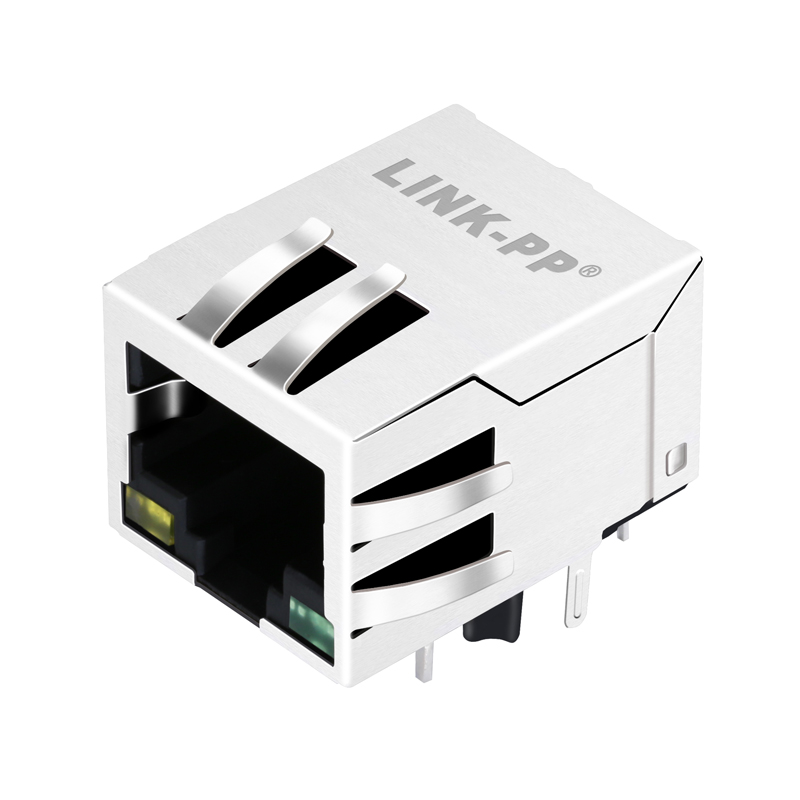

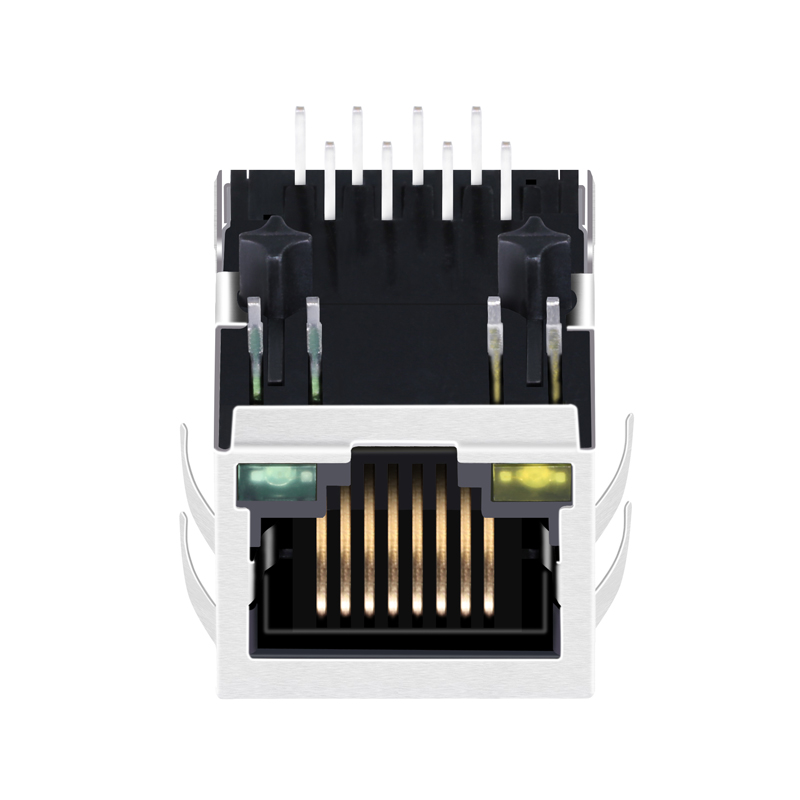

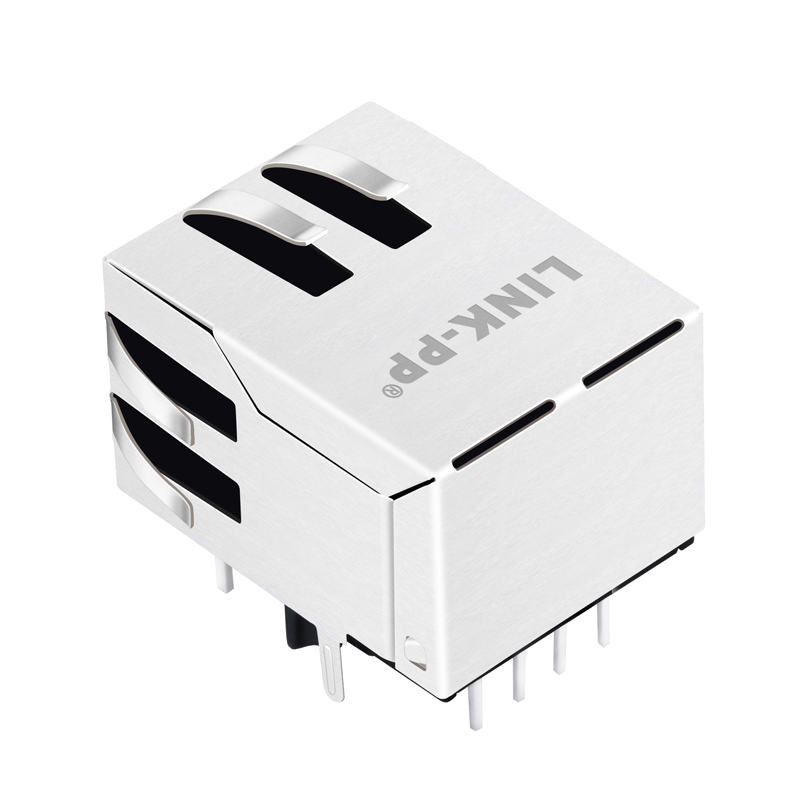

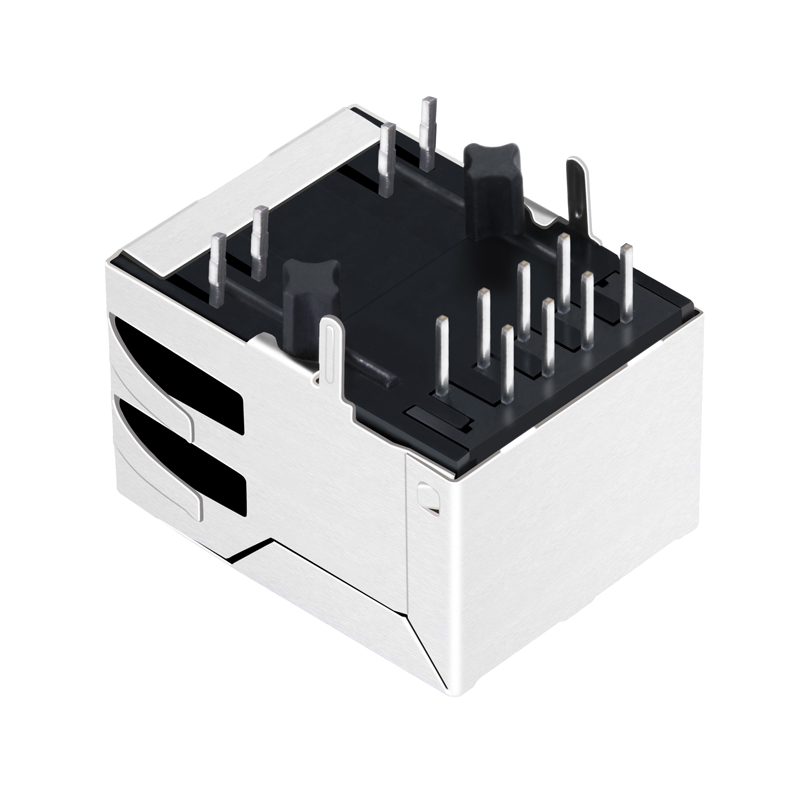

Female RJ45 for Internet Modular Plug TIC-L003-11
| Part Number |
TIC-L003-11 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
WithOUT LEDS |
| Latch |
DOWN |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 With LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
With OR WithOUT |
| Speed |
10/100 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
🛡️ Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
💎 100% Guarantee Quality
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- Quality Guarantee: 6 Years
🤝 Competitive Price And Service
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
📋 Corporate Policy
- The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
- Committed To And Expects Quality Performance From Every Employee
- The Company Standard Is Defect-Free Products And Services
Female RJ45 for Internet Modular Plug TIC-L003-11
Frequently Asked Questions (FAQ)
❓ What are the speed capabilities of the TIC-L003-11 RJ45 connector?
The TIC-L003-11 modular plug supports 10/100 BASE-T transmission speeds, making it ideal for standard internet and networking applications.
❓ Does this RJ45 connector come with built-in LED indicators?
No, this specific model (TIC-L003-11) is configured without LEDs and does not contain built-in diodes.
❓ What is the contact mating area plating thickness for this model?
The contact mating area features high-quality gold plating, available in options of 6u", 15u", or 30u" to suit various conductivity and durability requirements.
❓ What are the operating temperature specifications?
This connector is built to perform in standard operating temperatures ranging from 0 to 70°C, and extended industrial environments ranging from -40 to 85°C.
❓ Is the TIC-L003-11 connector compliant with RoHS environmental standards?
Yes, it is RoHS-5 compliant with a lead-in solder exemption, meeting standard environmental safety regulations.
❓ What mounting orientation and latch configuration does it feature?
The TIC-L003-11 has a side entry (right angle) PCB mount angle with a down-latch configuration, featuring a T-post retaining design.
