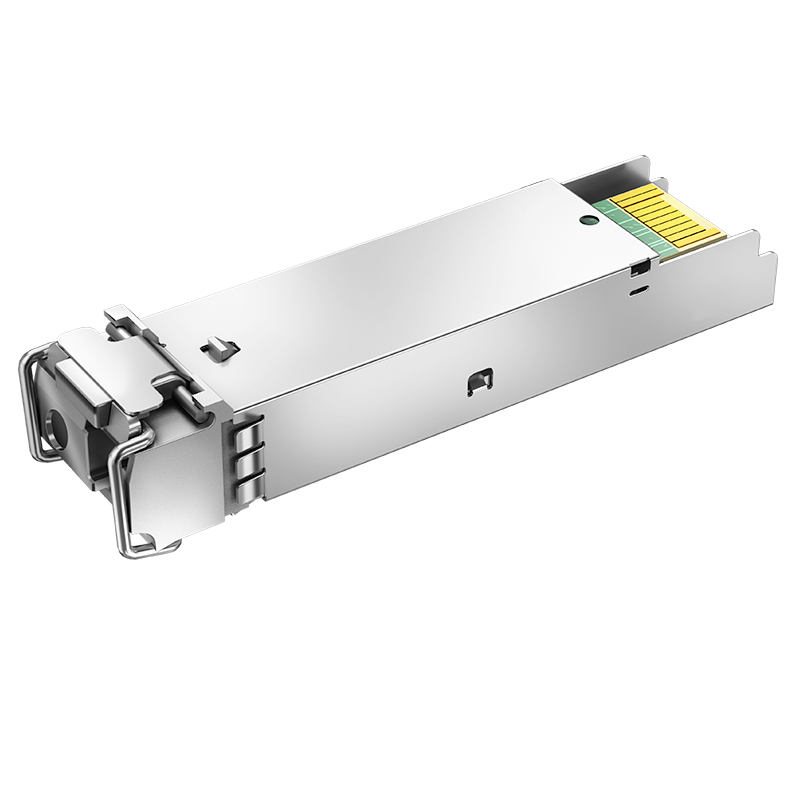

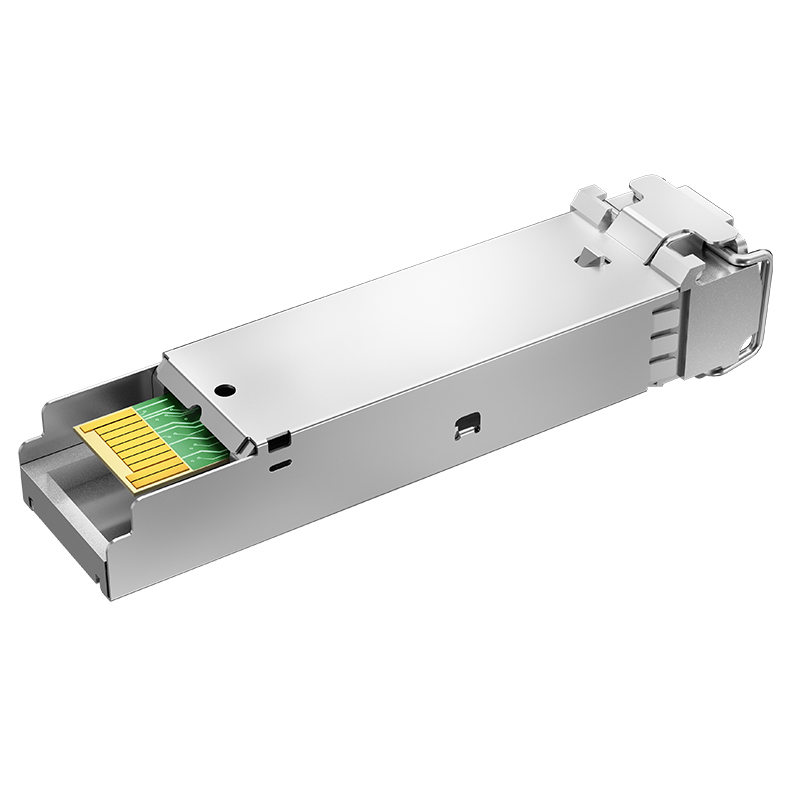

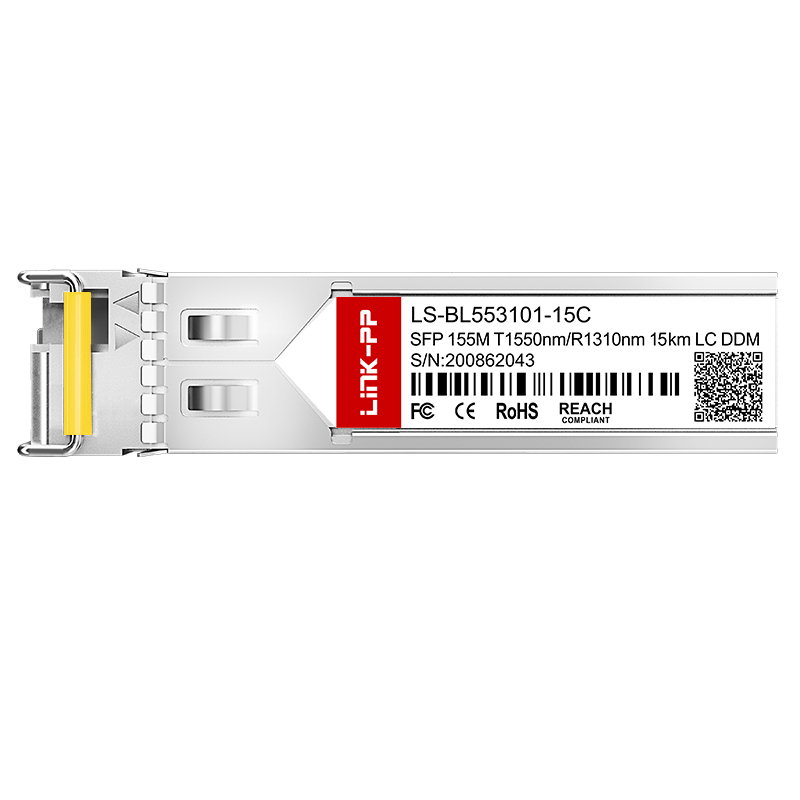

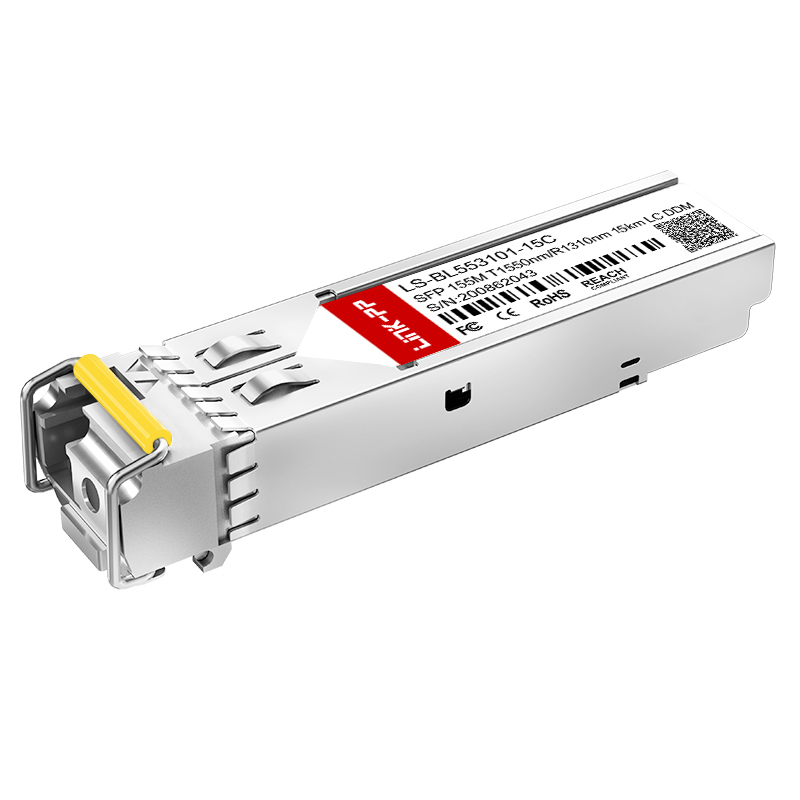

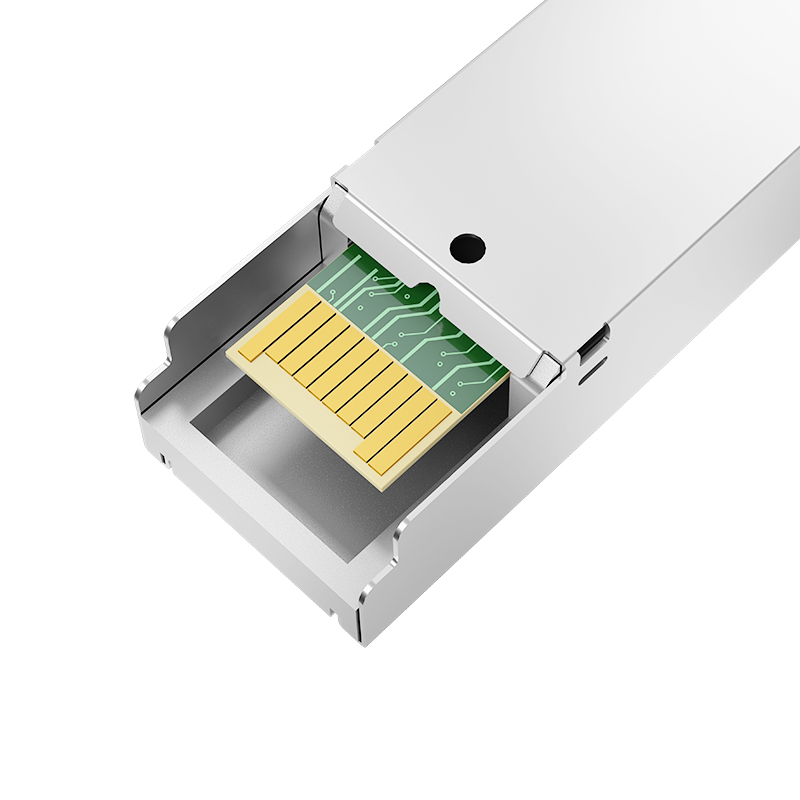

1550nm-TX/1310nm-RX Simplex LC SMF SFP 155M Bidi 15km DDM Optic Transceiver Module
| Product Specifications |
| Part No. |
LS-BL553101-15C |
| Form Factor |
SFP |
| Max Data Rate |
155Mbps |
| Wavelength |
1550nm-TX/1310nm-RX |
| Max Cable Distance |
15km |
| Connector |
Simplex LC |
| Media |
SMF |
| Transmitter Type |
FP |
| Receiver Type |
PIN |
| TX Power |
-15 ~ -8dBm |
| Receiver Sensitivity |
< -30dBm |
| EMC (Electro Magnetic Compatibility) |
Supported |
| DDM/DOM |
Supported |
| Protocols |
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Temperature Range |
0 to 70°C / -40 to 85°C |
| Warranty |
5 Years |
| Sample |
Available |
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
Provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Support Full Range Of 155M BiDi SFP
| Part Number |
Data Rate |
Wavelength |
Distance |
Components |
DDM |
| LS-BL315501-10C |
155Mbps |
1310nm-TX/1550nm-RX |
10km |
FP/PIN |
Yes |
| LS-BL553101-10C |
155Mbps |
1550nm-TX/1310nm-RX |
10km |
FP/PIN |
Yes |
| LS-BL315501-15C |
155Mbps |
1310nm-TX/1550nm-RX |
15km |
FP/PIN |
Yes |
| LS-BL553101-15C |
155Mbps |
1550nm-TX/1310nm-RX |
15km |
FP/PIN |
Yes |
| LS-BL315501-20C |
155Mbps |
1310nm-TX/1550nm-RX |
20km |
FP/PIN |
Yes |
| LS-BL553101-20C |
155Mbps |
1550nm-TX/1310nm-RX |
20km |
FP/PIN |
Yes |
| LS-BL315501-40C |
155Mbps |
1310nm-TX/1550nm-RX |
40km |
FP/PIN |
Yes |
| LS-BL553101-40C |
155Mbps |
1550nm-TX/1310nm-RX |
40km |
FP/PIN |
Yes |
| LS-BL315501-80C |
155Mbps |
1310nm-TX/1550nm-RX |
80km |
FP/PIN |
Yes |
| LS-BL553101-80C |
155Mbps |
1550nm-TX/1310nm-RX |
80km |
FP/PIN |
Yes |
| LS-BL495501-80C |
155Mbps |
1490nm-TX/1550nm-RX |
80km |
DFB/PIN |
Yes |
| LS-BL554901-80C |
155Mbps |
1550nm-TX/1490nm-RX |
80km |
DFB/PIN |
Yes |
Network Scenario Solutions
Optical Transport Networks
Provides end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Provides high reliability and performance products with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aiming at global communication network constructors, provides FTTx optical fiber access total solutions covering from all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, provides the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
