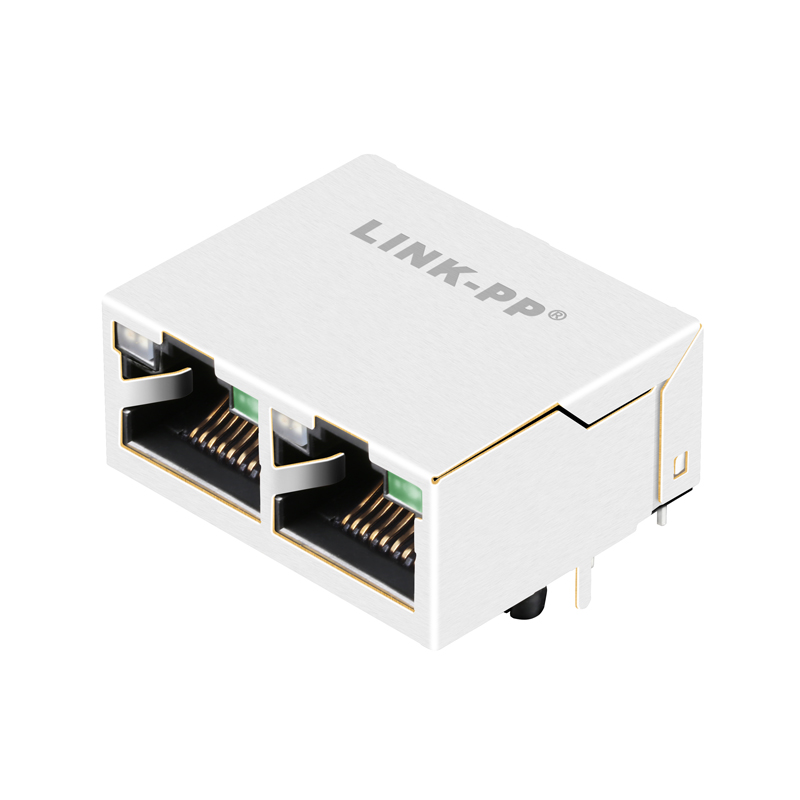

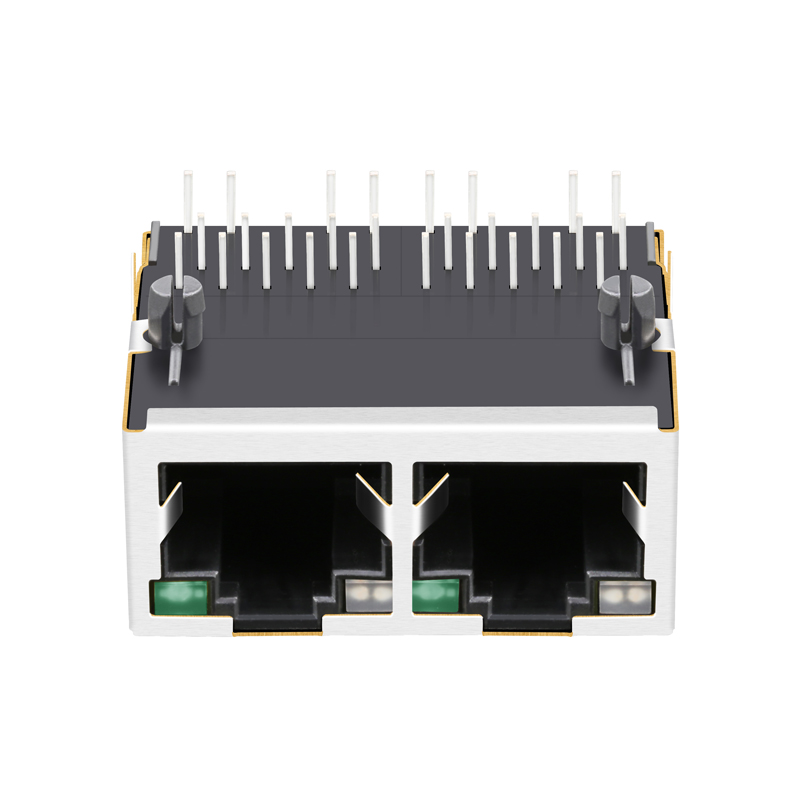

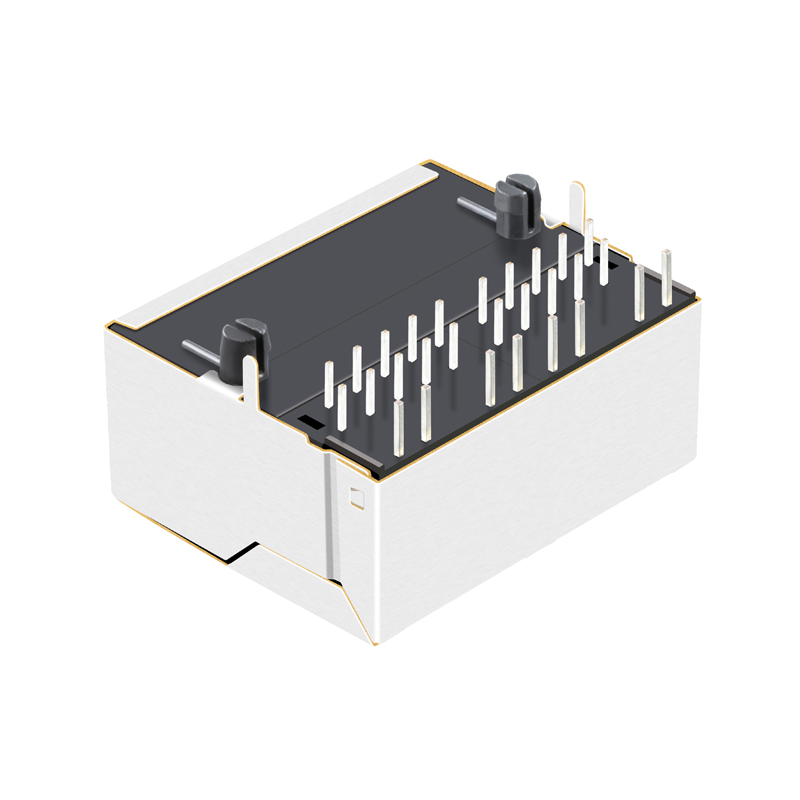

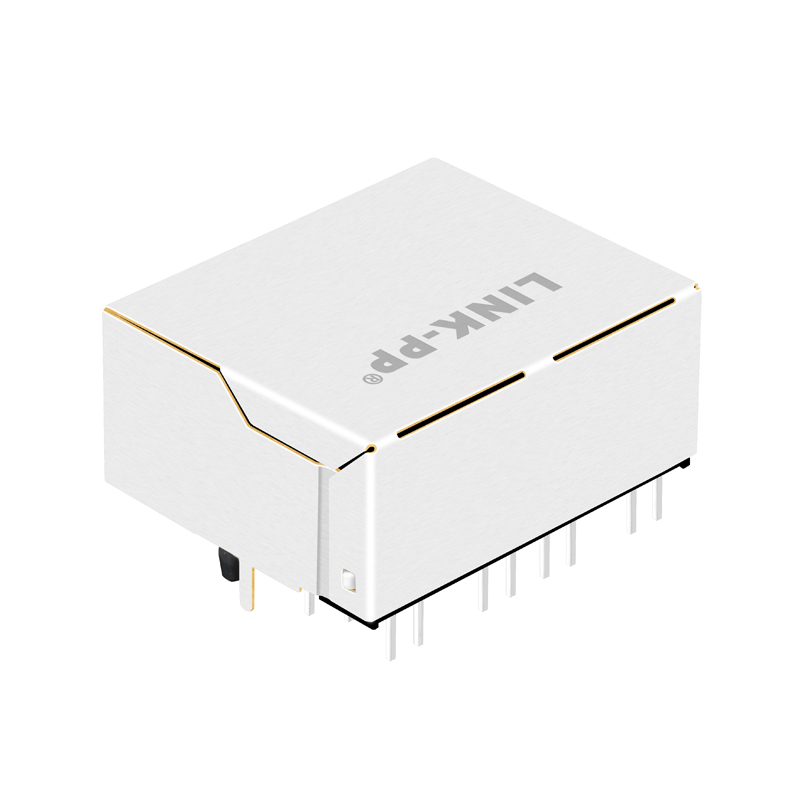

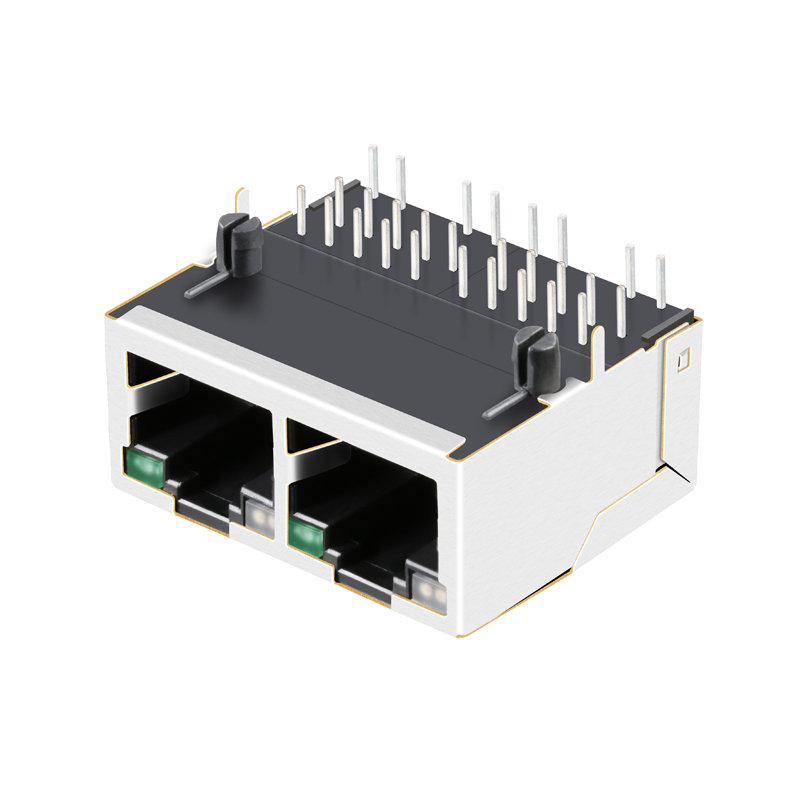

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
Part Number
5-6610197-1
AutomDX
YES
Bst Circuit
YES
Configuration RX
T,C
Configuration TX
T,C
Contact Mating Area Plating
GOLD 6u"/15u"/30u"/50u"
Cores Per Port
4
Diodes
NO DIDES41
LED Option
GREEN/YELLOW
Latch
UP
Number of Ports
1X2
PCB
FR4
PCB Mount Angle
SIDE ENTRY
PCB Retaining Post
T POST
Pin Type
THT SOLDER
RoHS Compliant
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search
YES
Shield EMI Tabs
WITH OR WITHOUT
Speed
10/100 BASE-T
Temperature
0 TO 70°C/-40 TO 85°C
Turns Ratio RX
1CT:1
Turns Ratio TX
1CT:1
