Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL

Product Description

Connector Category Overview

Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL

Products Description
Item RJ45 Female Connector
Part Number LPJD0012BENL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u" / 15u" / 30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C

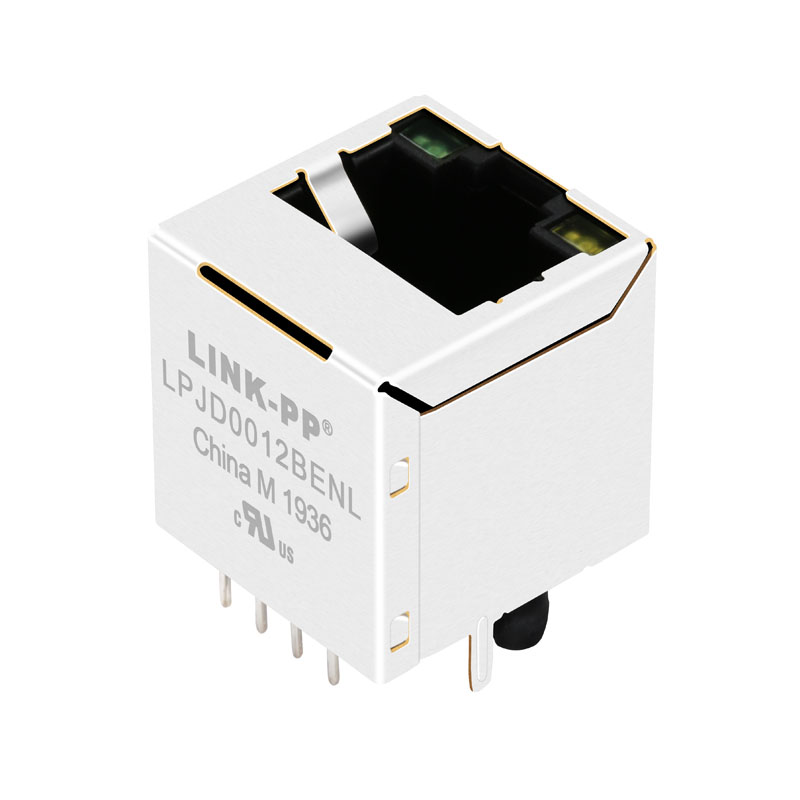

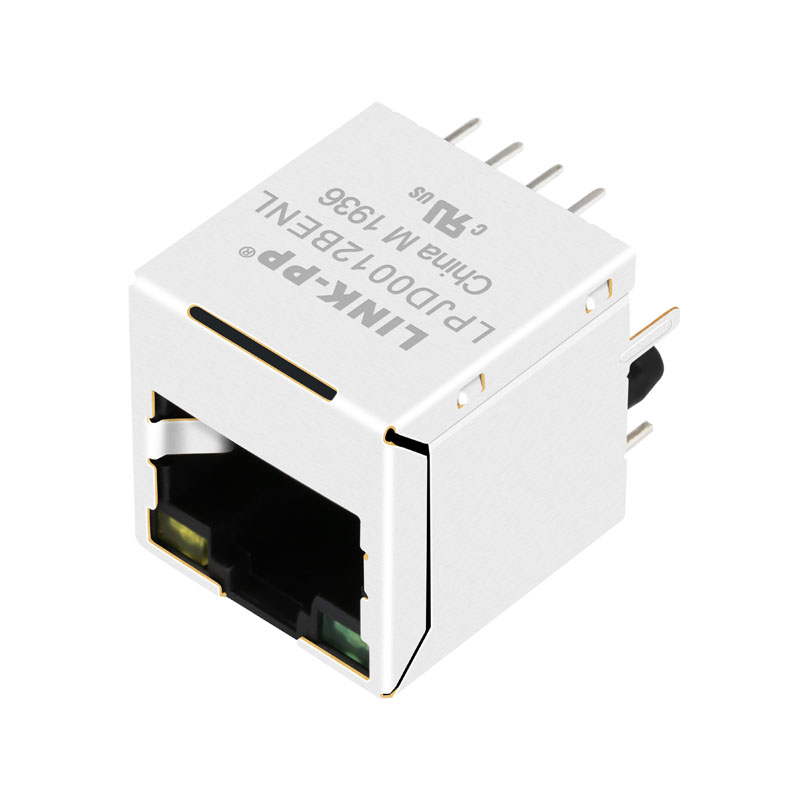

RJ45 Jack LPJD0012BENL Front View RJ45 Jack LPJD0012BENL Side View
Product Layout Specifications 1 Product Layout Specifications 2 Product Layout Specifications 3 Product Layout Specifications 4
Available Product Lineup
PCB Pin Layout Details Electrical Schematic Diagram
High Reliability Mechanical Structure Standard Testing Process
EMI Shield Structure Detail Solder Ability And Pin Configurations
