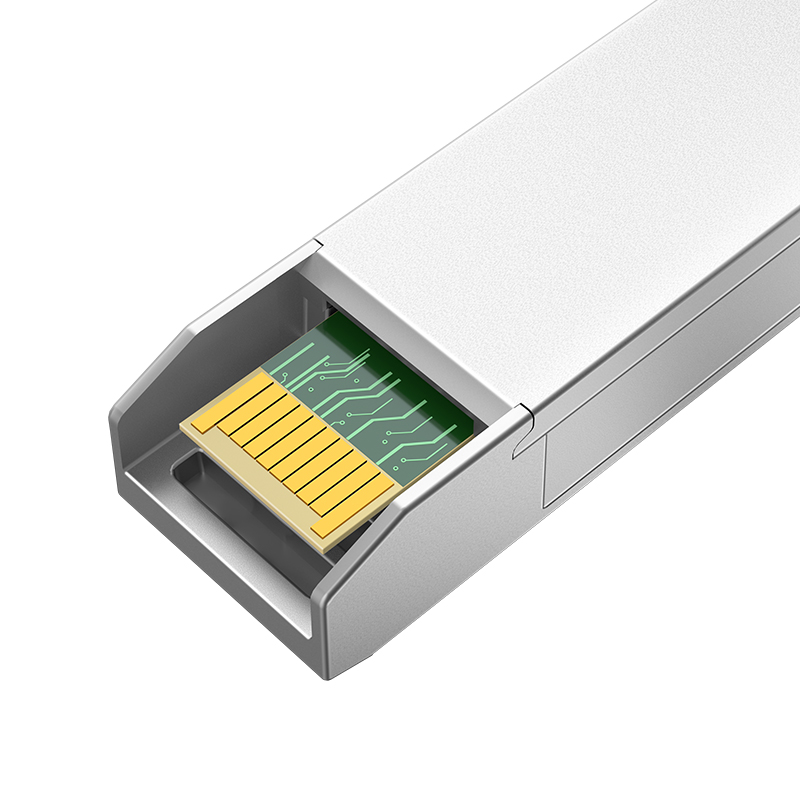

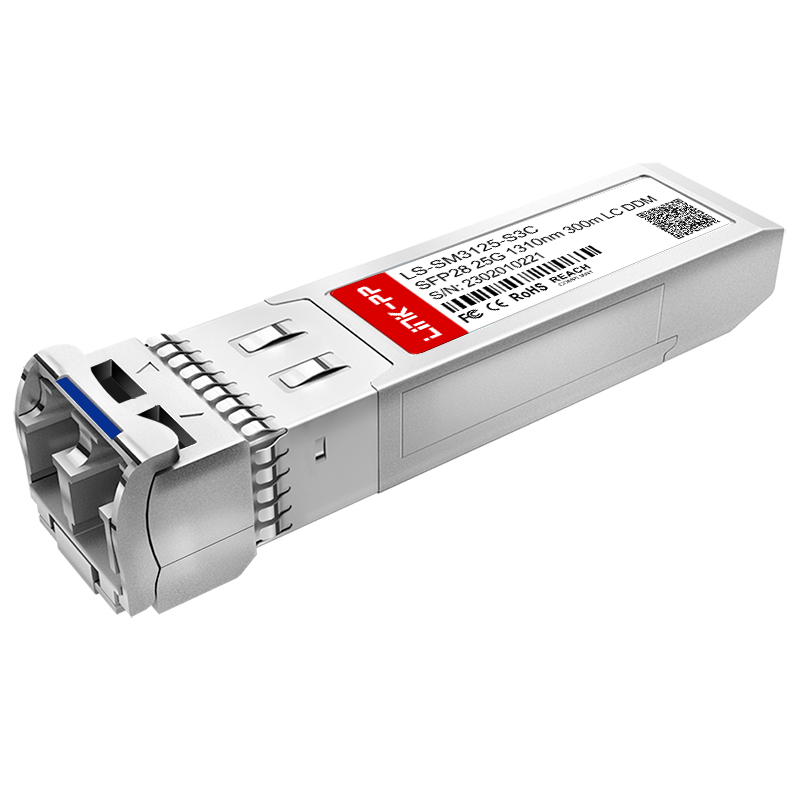

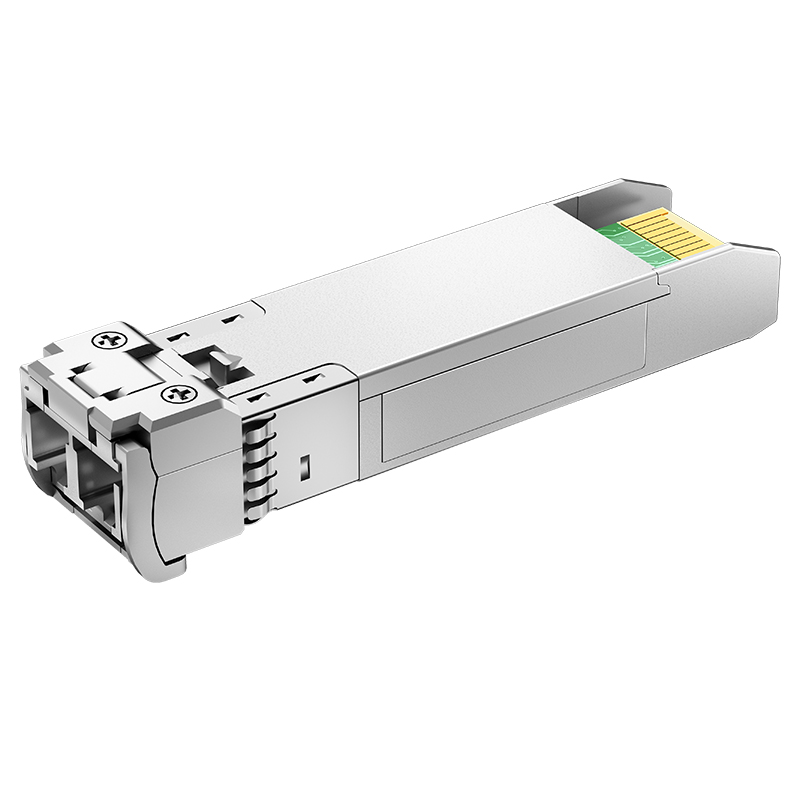

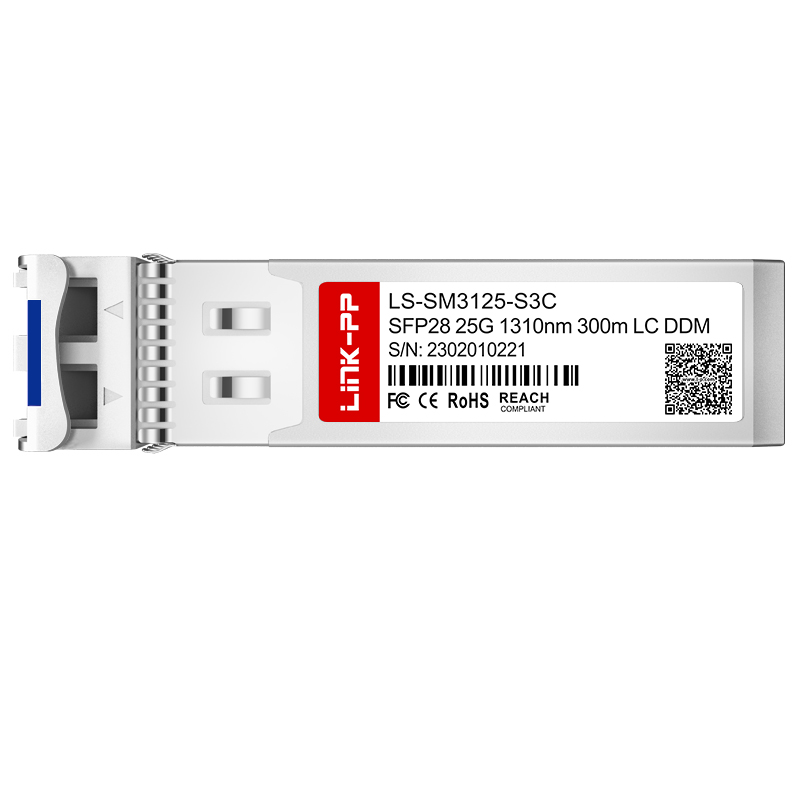

SMF LC Optical Transceiver Module DDM Single Mode 1310nm 25G SFP28 Transceiver 300m
SMF LC Optical Transceiver Module DDM Single Mode 1310nm 25G SFP28 Transceiver 300m
SMF LC Optical Transceiver Module DDM Single Mode 1310nm 25G SFP28 Transceiver 300m
SMF LC Optical Transceiver Module DDM Single Mode 1310nm 25G SFP28 Transceiver 300m
SMF LC Optical Transceiver Module DDM Single Mode 1310nm 25G SFP28 Transceiver 300m
1 / 5
SMF LC Optical Transceiver Module DDM Single Mode 1310nm 25G SFP28 Transceiver 300m
SMF LC Optical Transceiver Module DDM Single Mode 1310nm 25G SFP28 Transceiver 300m
SMF LC Optical Transceiver Module DDM Single Mode 1310nm 25G SFP28 Transceiver 300m
SMF LC Optical Transceiver Module DDM Single Mode 1310nm 25G SFP28 Transceiver 300m
SMF LC Optical Transceiver Module DDM Single Mode 1310nm 25G SFP28 Transceiver 300m

SMF LC Optical Transceiver Module DDM Single Mode 1310nm 25G SFP28 Transceiver 300m

Send Inquiry

Product Description

Products Description
Item Specification Details
Item 25G SFP28 Transceiver
Part No. LS-SM3125-S3C
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 1310nm
Max Cable Distance 300m
Media SMF
Connector Duplex LC
Optical Component DFB/PIN
TX Power -5~2dBm
Receiver Sensitivity <-8.5dBm
Receiver Overload 2.4dBm
Power Consumption 1W
DDM/DOM Supported
Commercial Temperature Range 0°C to 70°C / -40°C to 85°C
Protocols SFF-8472, SFF-8024, SFF-8431, SFF-8432, IEEE 802.3 by, IEEE 802.3cc
Warranty 5 Years
Sample Available
