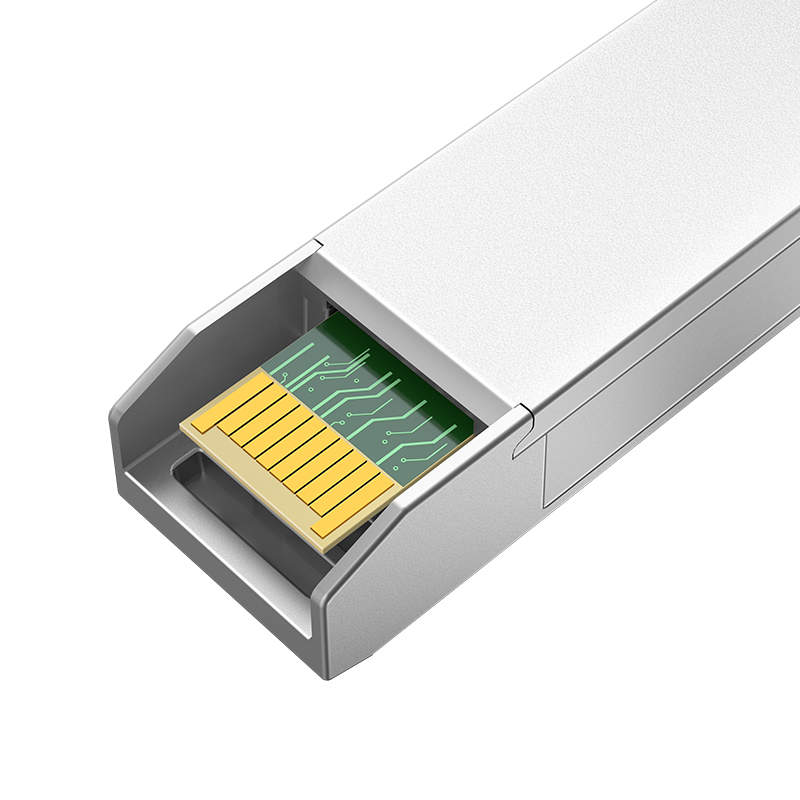

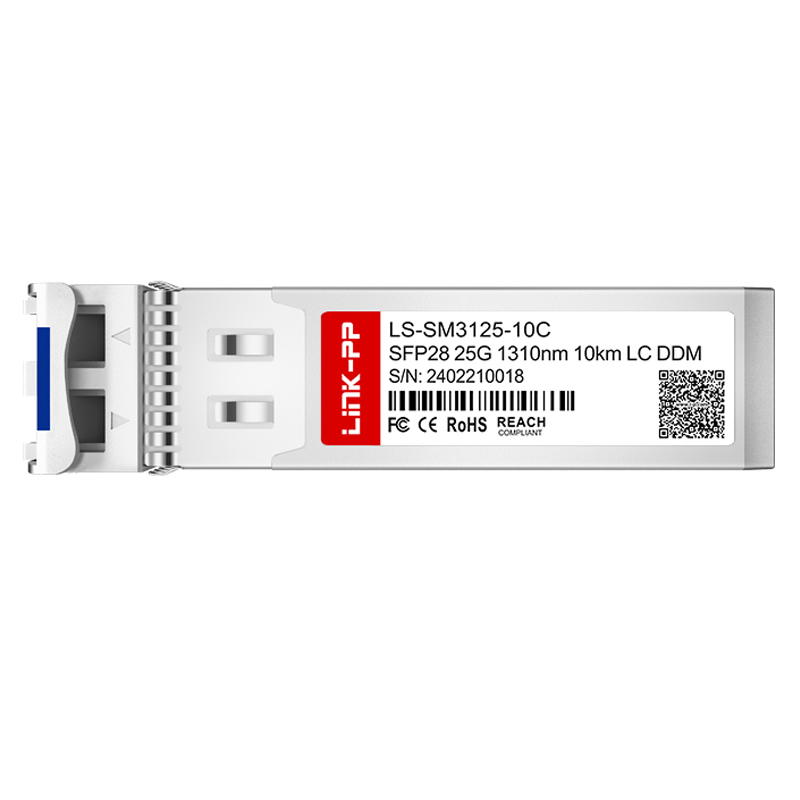

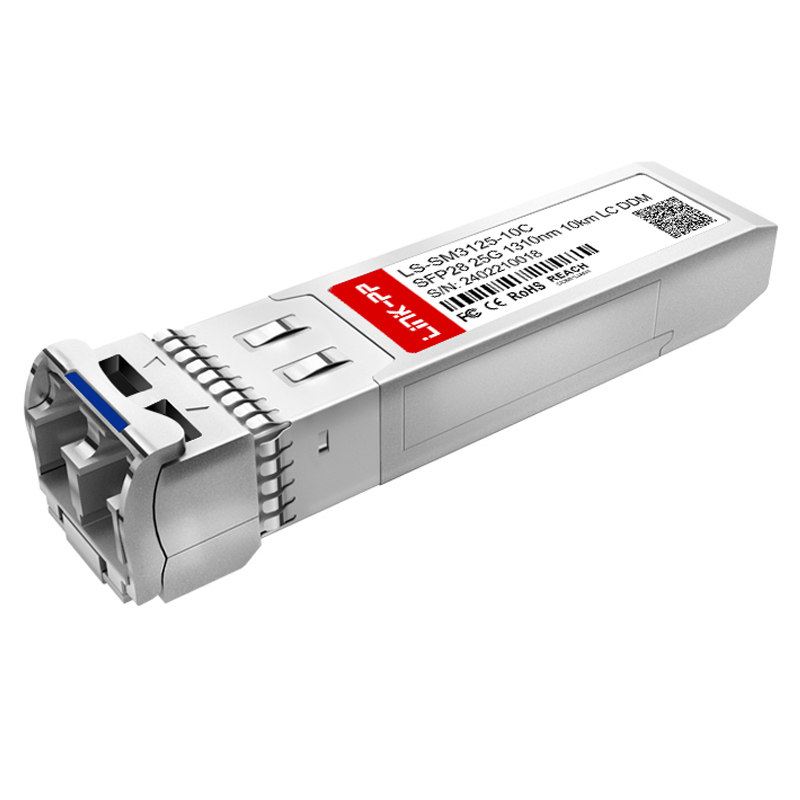

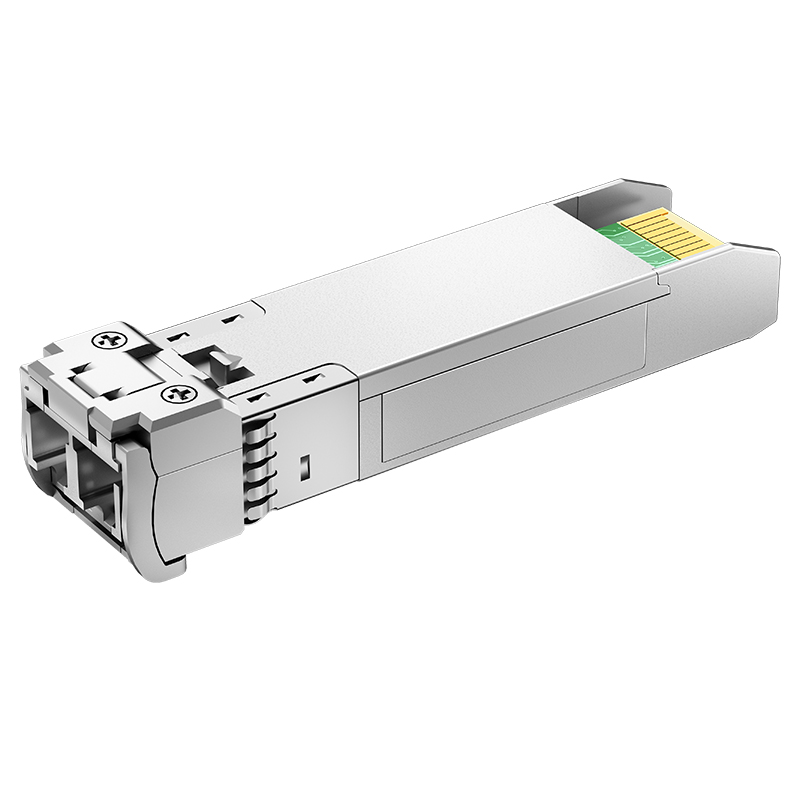

Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
1 / 5
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module

Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module

Send Inquiry

Product Description

Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Products Description
Item 25G SFP28 Transceiver
Part No. LS-SM3125-10C
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 1310nm
Max Cable Distance 10km
Media SMF
Connector Duplex LC
Optical Component DFB/PIN
TX Power -4~2dBm
Receiver Sensitivity <-12dBm
Receiver Overload 2dBm
Power Consumption ≤1.2W
Extinction Ratio 3.5dB
DDM/DOM Supported
Commercial Temperature Range 0°C to 70°C / -40°C to 85°C
Protocols MSA Compliant, CPRI, eCPRI
Warranty 5 Years
Sample Available
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solution Overview Product Range Map
Testing Facility Equipment Setup
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Optical Transport Networks
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Cloud and Enterprise
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Wireless
FTTx
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
FTTx
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Subsystems
Product Diagram
Related Products SFP Cage
SFP Cage Showcase
Why Choose Us
Advantage 1 Advantage 2 Advantage 3 Advantage 4
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you a free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
Many years of production experience and we are long-term partners with top-tier global network solution providers.
