Home > Vertical RJ45 Connector > SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector

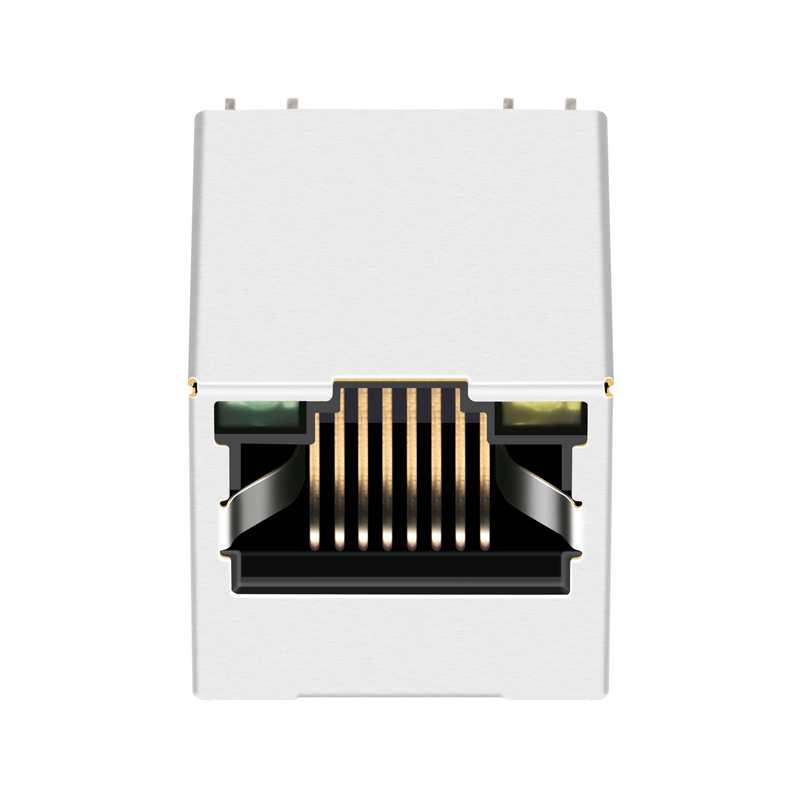

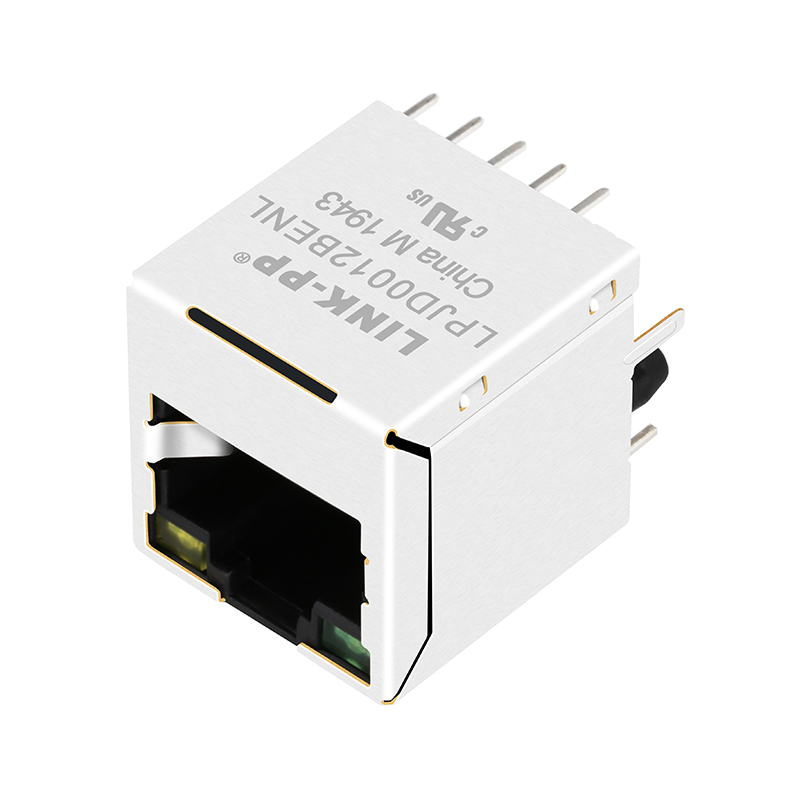

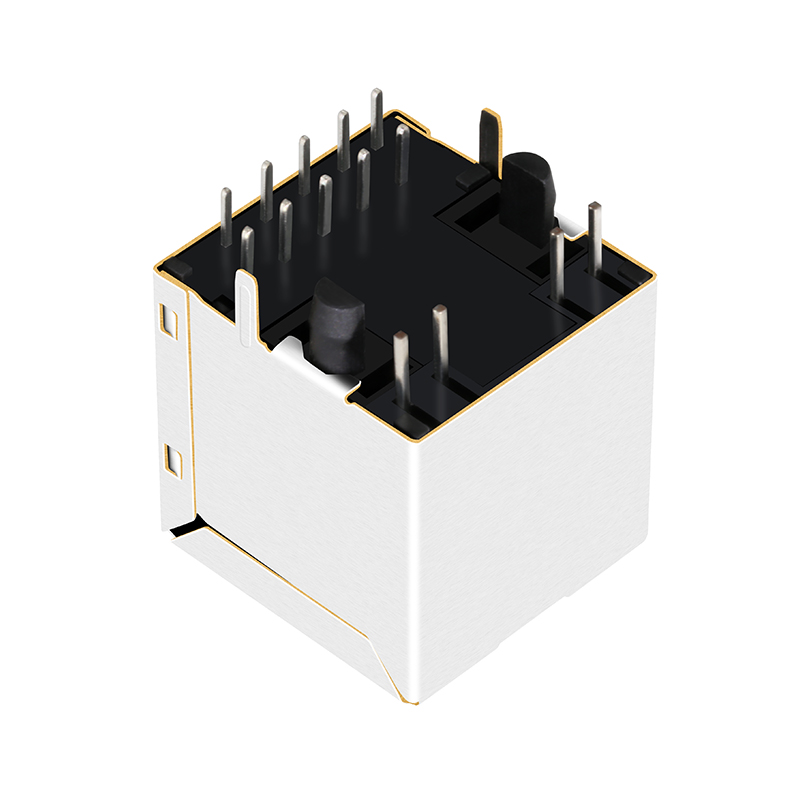

SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector
SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector
SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector
SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector
SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector
1 / 5
SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector
SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector
SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector
SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector
SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector

SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector

Send Inquiry

Product Description

SI-46001-F 10 / 100Base-T 8P8C Vertical RJ45 Connector
RJ45 Connector Overview
Products Description
Item RJ45 Female Connector
Part Number SI-46001-F
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

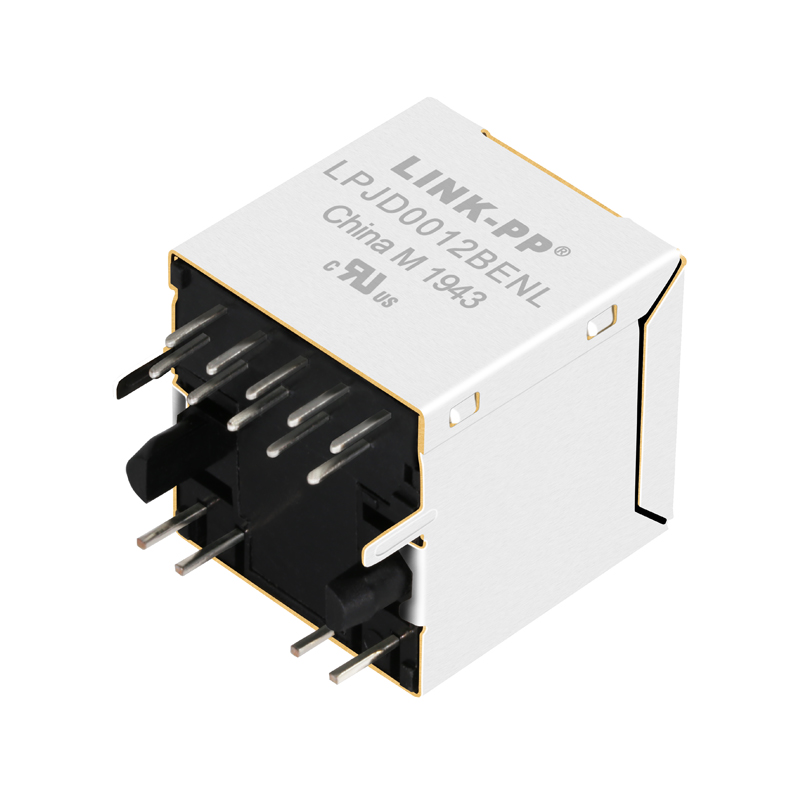

Connector Detail 1

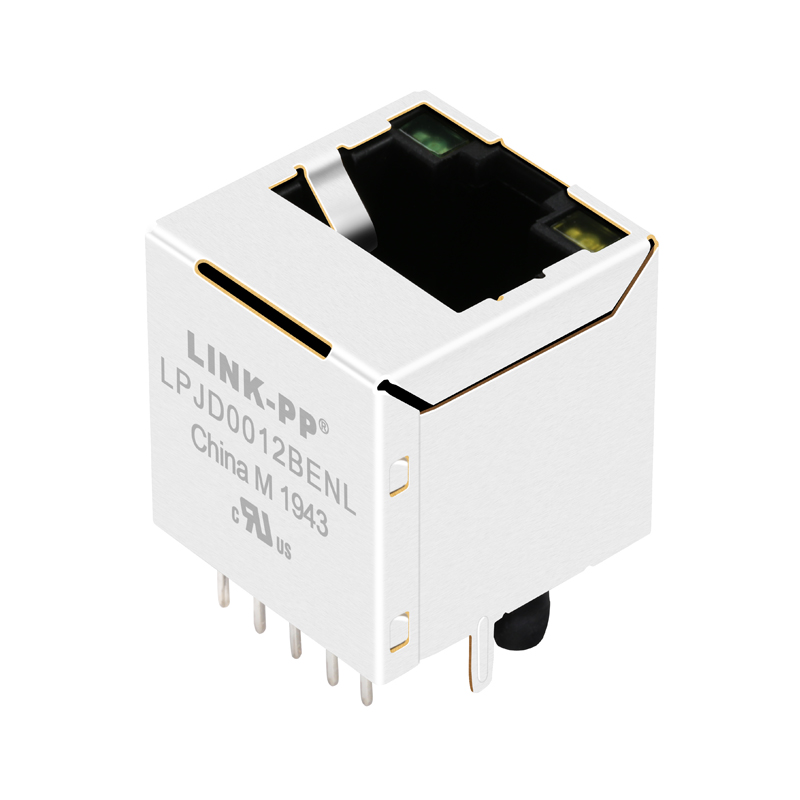

Connector Detail 2
Product Angle 1
Product Angle 2
Product Angle 3
Product Angle 4
💡 Product Categories and Options
Product Map Overview Product Categories Grid
Technical Details & Manufacturing Features
Technical Drawing 1
Technical Drawing 2
Manufacturing Detail 1
Manufacturing Detail 2
Testing Phase 1
Testing Phase 2
Manufacturer Profile
Established in 1997, is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Factory Facility 1
Factory Facility 2
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee needs to be covered by the client.
Q What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production.
Q What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion about your requirements.
Q What is your advantage?
We have 19 years of professional production experience and have partnered with top global industry leaders for many years.
Manufacturing Standard Certification
